Weatherstrip Seals - Dynamic Weatherstrips, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Weatherstrip Seals - Dynamic Weatherstrips, Coupe

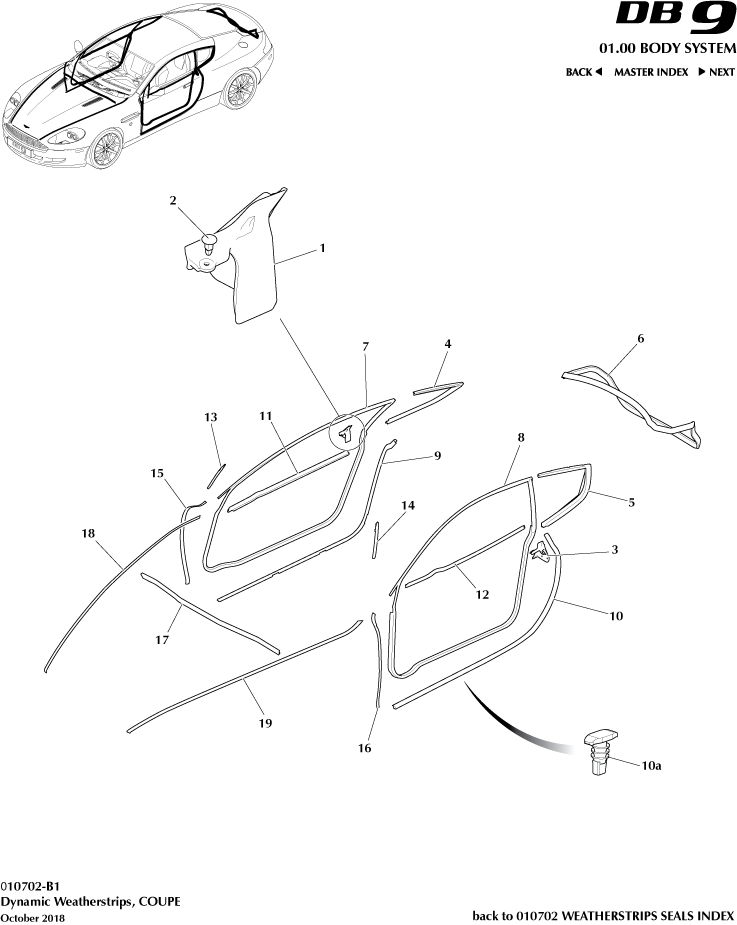

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G43F20709AJ	Seal, Door Primary, LH IN STOCK	4G43F20709AJ Seal, Door Primary, LH 06MY on IN STOCK	-	1	Enquire
-	4G43F20570AE	Seal, Door Waist Inner, RH IN STOCK	4G43F20570AE Seal, Door Waist Inner, RH 07MY on IN STOCK	-	1	Enquire
-	4G43F20571AE	Seal, Door Waist Inner, LH IN STOCK	4G43F20571AE Seal, Door Waist Inner, LH 07MY on IN STOCK	-	1	Enquire
-	4G43F21510BA	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH IN STOCK	4G43F21510BA WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH From (V) B05152 IN STOCK	-	1	Enquire
-	4G43F21511BA	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH	4G43F21511BA WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH From (V) B05152	-	1	Enquire
-	4G4316A015AF	Weatherstrip, Bonnet LH IN STOCK	4G4316A015AF Weatherstrip, Bonnet LH 10MY on IN STOCK	-	1	Enquire
-	4G4320126AA	FELT-DR UPPER WINDOW SEAL	4G4320126AA FELT-DR UPPER WINDOW SEAL -	-	2	Enquire
-	6G33C47775AA	FOAM PAD - DIVISION BAR/DR OTR WAIST SEAL	6G33C47775AA FOAM PAD - DIVISION BAR/DR OTR WAIST SEAL -	-	2	Enquire
1	4G43F20920AC	Moulding Assembly, Front Door Trim Rear, RH	4G43F20920AC Moulding Assembly, Front Door Trim Rear, RH -	-	1	Enquire
2	702213	Pin, Push-in IN STOCK	702213 Pin, Push-in - IN STOCK	-	2	Enquire
3	4G43F20921AC	Moulding Assembly, Front Door Trim Rear, LH	4G43F20921AC Moulding Assembly, Front Door Trim Rear, LH -	-	1	Enquire
4	4G43F29796AD	Moulding, Quarter Window, RH IN STOCK	4G43F29796AD Moulding, Quarter Window, RH - IN STOCK	-	1	Enquire
5	4G43F29797AD	Moulding, Quarter Window, LH IN STOCK	4G43F29797AD Moulding, Quarter Window, LH - IN STOCK	-	1	Enquire
6	4G43F43720AH	W/STRIP EXT TRNK LID IN STOCK	4G43F43720AH W/STRIP EXT TRNK LID - IN STOCK	-	1	Enquire
7	4G43F20708AJ	Seal, Door Primary, RH	4G43F20708AJ Seal, Door Primary, RH -	-	1	Enquire
8	4G43F20709AE	DR PRIM SEAL LH	4G43F20709AE DR PRIM SEAL LH -	-	1	Enquire
9	4G43F25324AD	Seal, Margin Lower Rear, RH	4G43F25324AD Seal, Margin Lower Rear, RH -	-	1	Enquire
10	4G43F25325AD	Seal, Margin Lower Rear, LH IN STOCK	4G43F25325AD Seal, Margin Lower Rear, LH - IN STOCK	-	1	Enquire
10a	4G43L25324BA	Clip, Weather Strip Retention IN STOCK	4G43L25324BA Clip, Weather Strip Retention - IN STOCK	-	2	Enquire
11	4G43F20570AC	DR WAIST SEAL INR RH	4G43F20570AC DR WAIST SEAL INR RH -	-	1	Enquire
12	4G43F20571AC	DR WAIST SEAL INR LH	4G43F20571AC DR WAIST SEAL INR LH -	-	1	Enquire
13	4G43F21510AD	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH IN STOCK	4G43F21510AD WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH Up to (V) B05151 IN STOCK	-	1	Enquire
14	4G43F21511AD	WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH	4G43F21511AD WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH Up to (V) B05151	-	1	Enquire
15	4G43F20556AF	Seal Margin Front Door RH IN STOCK	4G43F20556AF Seal Margin Front Door RH - IN STOCK	-	1	Enquire
16	4G43F20557AF	Seal, Margin, Front Door, LH	4G43F20557AF Seal, Margin, Front Door, LH -	-	1	Enquire
17	4G4316K816AC	WEATHERSTRIP EXTRUSION HOOD REAR	4G4316K816AC WEATHERSTRIP EXTRUSION HOOD REAR -	-	1	Enquire
18	4G4316A014AF	Weatherstrip, Bonnet RH IN STOCK	4G4316A014AF Weatherstrip, Bonnet RH - IN STOCK	-	1	Enquire
19	4G4316A015AC	WTHR STP HOOD/FDR LH	4G4316A015AC WTHR STP HOOD/FDR LH Up to 10MY	-	1	Enquire
