Interior Trim - Body Side Quarter Trim, Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Interior Trim - Body Side Quarter Trim, Volante

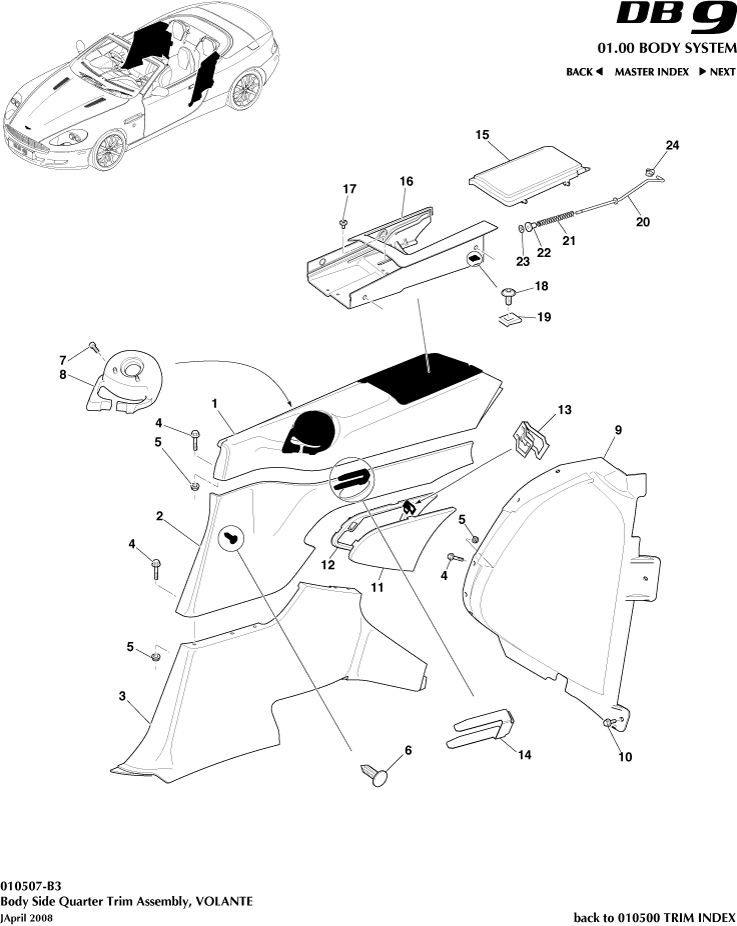

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G43L31113ADW	PANEL BODY SIDE TR REAR LH	4G43L31113ADW PANEL BODY SIDE TR REAR LH Up to (V) B05390	-	1	Enquire
-	6G43L31112AAW	PANEL BODY SIDE TR R RH	6G43L31112AAW PANEL BODY SIDE TR R RH From (V) B05391	-	1	Enquire
-	6G43L31113AAW	PANEL BODY SIDE TR REAR LH	6G43L31113AAW PANEL BODY SIDE TR REAR LH From (V) B05391	-	1	Enquire
-	RY5315691AD	CONVERT ROOF SWITCH	RY5315691AD CONVERT ROOF SWITCH 08MY	-	1	Enquire
-	920033468	SPARCO RACING SUIT 48	920033468 SPARCO RACING SUIT 48 07MY	-	1	Enquire
-	SY63120609CB	DUP OWN GER 25MY	SY63120609CB DUP OWN GER 25MY 08MY	-	1	Enquire
-	8G43L312A06AAW	LOWER QUARTER PANEL ASSY RHS	8G43L312A06AAW LOWER QUARTER PANEL ASSY RHS 08MY	-	1	Enquire
-	4G43L312A07ACW	LOWER QTR PANEL ASY LHS	4G43L312A07ACW LOWER QTR PANEL ASY LHS 07MY	-	1	Enquire
-	8G43L312A07AAW	LOWER QUARTER PANEL ASSY LHS	8G43L312A07AAW LOWER QUARTER PANEL ASSY LHS 08MY	-	1	Enquire
-	4G43L24859AB	Bezel Assy, Seat Belt B Post Upper, LH	4G43L24859AB Bezel Assy, Seat Belt B Post Upper, LH -	-	1	Enquire
-	4G43L60595ADW	PANEL ASY REAR ST BK LOWER	4G43L60595ADW PANEL ASY REAR ST BK LOWER -	-	1	Enquire
-	4G43L14502AAW	SPEAKER GRILLE AND FOAM ASSY LHS	4G43L14502AAW SPEAKER GRILLE AND FOAM ASSY LHS -	-	1	Enquire
-	4G43310C03AC	BRKT SPKR GRL BDY SD TR LH	4G43310C03AC BRKT SPKR GRL BDY SD TR LH -	-	1	Enquire
-	4G43539A41ABW	Lid, Flap Finisher Top, LH	4G43539A41ABW Lid, Flap Finisher Top, LH -	-	1	Enquire
-	4G43LB605H21ADW	Frame and Finisher Assembly, C-Flap, LH	4G43LB605H21ADW Frame and Finisher Assembly, C-Flap, LH -	-	1	Enquire
-	4G43L53297AA	Link Rod, Flap Top LH	4G43L53297AA Link Rod, Flap Top LH -	-	1	Enquire
1	4G43L31112ADW	PANEL BODY SIDE TR R RH	4G43L31112ADW PANEL BODY SIDE TR R RH Up to (V) B05390	-	1	Enquire
2	4G43L31486ADW	MIDDLE QTR PANEL ASSY RHS	4G43L31486ADW MIDDLE QTR PANEL ASSY RHS 07MY	-	1	Enquire
3	4G43L312A06ACW	LOWER QTR PANEL ASY RHS	4G43L312A06ACW LOWER QTR PANEL ASY RHS 07MY	-	1	Enquire
4	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head -	-	4	Enquire
5	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	32	Enquire
6	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	701581PK FIRTREE-FLAT HEAD (PACK OF 20) Pack of 20	-	2	Enquire
7	4G43V850063AA	Screw, Cap Hd	4G43V850063AA Screw, Cap Hd -	-	2	Enquire
8	4G43L24858AB	Bezel Assy, Seat Belt B Post Upper, RH	4G43L24858AB Bezel Assy, Seat Belt B Post Upper, RH -	-	1	Enquire
9	4G43L60594ADW	Seat Back Panel Assy, RH	4G43L60594ADW Seat Back Panel Assy, RH -	-	1	Enquire
10	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head -	-	32	Enquire
11	4G43L14501AAW	SPEAKER GRILLE AND FOAM ASSY RHS	4G43L14501AAW SPEAKER GRILLE AND FOAM ASSY RHS -	-	1	Enquire
12	4G43310C02AC	BRKT SPKR CRL BODY SDTR RH	4G43310C02AC BRKT SPKR CRL BODY SDTR RH -	-	1	Enquire
13	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20) Pack of 20	-	2	Enquire
14	4G43290E16AB	Plate, Light to Quarter Panel	4G43290E16AB Plate, Light to Quarter Panel -	-	2	Enquire
15	4G43539A40ABW	Lid, Flap Finisher Top, RH	4G43539A40ABW Lid, Flap Finisher Top, RH -	-	1	Enquire
16	4G43LB605H20ADW	Frame and Finisher Assembly, C-Flap, RH	4G43LB605H20ADW Frame and Finisher Assembly, C-Flap, RH -	-	1	Enquire
17	702211	SCREW M5x8.0x0.80 PAN HEAD	702211 SCREW M5x8.0x0.80 PAN HEAD -	-	2	Enquire
18	701440	Screw Self Tapping Washer Head 4.2 x 9.5	701440 Screw Self Tapping Washer Head 4.2 x 9.5 -	-	2	Enquire
19	701653	Spring Nut, U Type, 4.2 x 0.7-2	701653 Spring Nut, U Type, 4.2 x 0.7-2 -	-	2	Enquire
20	4G43L53296AA	Link Rod, Flap Top RH	4G43L53296AA Link Rod, Flap Top RH -	-	1	Enquire
21	4G4317431AA	SPRING	4G4317431AA SPRING 1 per Link	-	2	Enquire
22	4G43338013AA	PLUG BLANKING (M6)	4G43338013AA PLUG BLANKING (M6) 1 per Link	-	2	Enquire
23	4G43103021AB	Fix, Push On	4G43103021AB Fix, Push On 1 per Link	-	2	Enquire
24	4G431861AA	CLIP	4G431861AA CLIP 1 per Link	-	2	Enquire
