Front Lightweight Seats

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Front Lightweight Seats

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

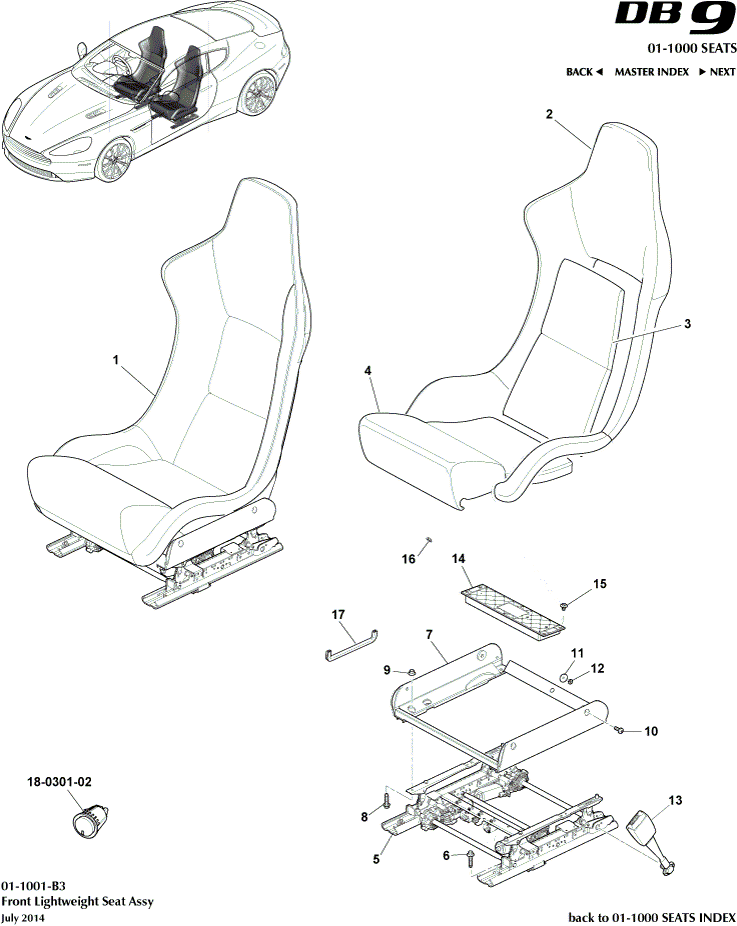

Front Lightweight Seats of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG4360009BCW
Front Seat Assembly Complete, Trimmed, LH
- 		- 1 Enquire
- CG43600C14AA
Front Seat and Track Assembly, Not Trimmed
- 		- 2 Enquire
- 7784981PK
Tape, Anti Rattle Rear Quarter Wheel
Pack of 10 		- A/R Enquire
1 CG4360008BCW
Front Seat Assembly Complete, Trimmed, RH
- 		- 1 Enquire
2 CG4364572BAW
Cover Assembly, Seat Outer
- 		- 2 Enquire
3 13A4912CP
Internal Arm - Door Mirror - LH
Includes Foam 		$153.07 2
4 14A3463CP
SCALP-RH-PAINTED-CCC
Includes Foam 		$81.63 2
5 4G437410116
Track Assembly, Front Lightweight Seat
- 		- 2 Enquire
6 706423
SCREW-M8 x 25 HF PI
- 		- 8 Enquire
7 8D33617B94AD
Bracket Assembly, Front Seat Adaptor
- 		- 2 Enquire
8 W500624S303
Bolt, M8 x 25, Hex Flange Head
- 		- 8 Enquire
9 701342PK
NUT M8 HEX P/T PLAS8 PACK OF 5
Pack of 5 		- 8 Enquire
10 W505593S307
Screw, M8 x 20, Pan Head
- 		- 8 Enquire
11 NSS
 Seat Belt Loops Frt/ Rear and Left/Right
Part of Seat Bracket, item 7 		- 2 Enquire
12 701620
SCREW M6x10 PAN HD
- 		- 2 Enquire
14 CD3314C249AE
SEAT ECU
- 		- 2 Enquire
15 701581
FIRTREE FLAT HEAD
- 		- 8 Enquire
16 8D3360302BB
Clip, Fir Tree, Flat Head
- 		- 6 Enquire
17 61315A9D334
Switch, trailer coupling
- 		- 2 Enquire
