Interior Trim & Ornamentation - Rear Quarter Trim Panel, 2+2 Coupe of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Interior Trim & Ornamentation - Rear Quarter Trim Panel, 2+2 Coupe

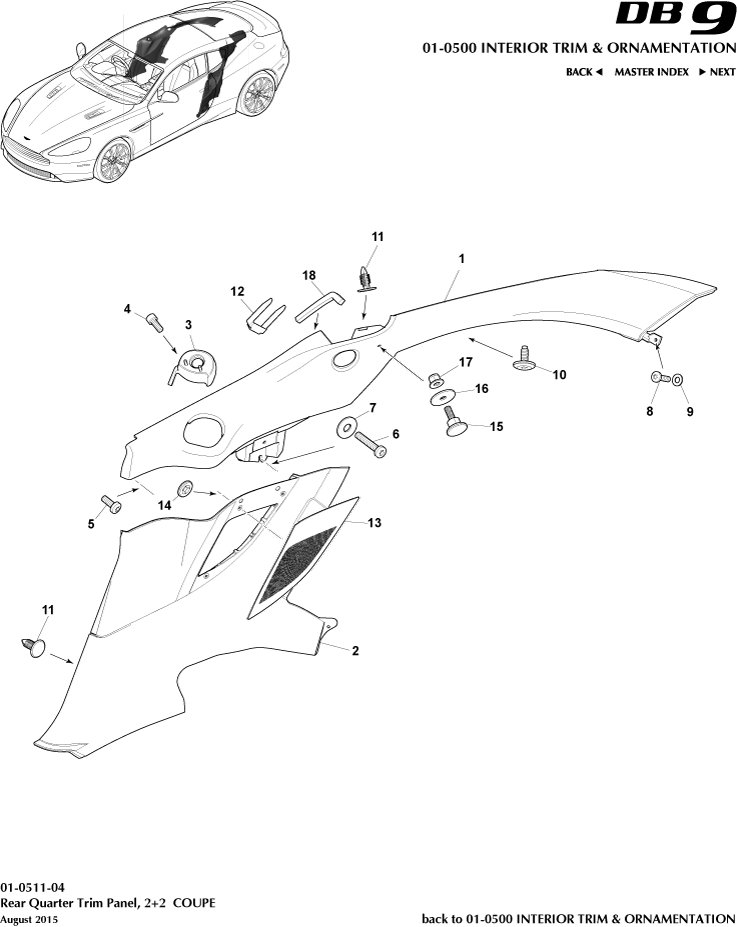

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4331113AAW	Panel Assy, Rear Quarter Upper, LH	CG4331113AAW Panel Assy, Rear Quarter Upper, LH -	-	1	Enquire
-	15AC143CP	CAP - DOOR RELEASE CABLE - RH	15AC143CP CAP - DOOR RELEASE CABLE - RH Alpine. Includes Item 13	$3.27	1
-	9G4331012ADW	Panel Assy, Quarter Lower, RH	9G4331012ADW Panel Assy, Quarter Lower, RH B&O. Includes Item 13	-	1	Enquire
-	9G4331013ACW	Panel Assy, Quarter Lower, LH	9G4331013ACW Panel Assy, Quarter Lower, LH B&O. Includes Item 13	-	1	Enquire
-	4G4324859ADW	Bezel Assy, Front Seat Belt, LH	4G4324859ADW Bezel Assy, Front Seat Belt, LH -	-	1	Enquire
-	9D33310B08AC	Speaker Grille, Rear Quarter Lower, RH	9D33310B08AC Speaker Grille, Rear Quarter Lower, RH B&O	-	1	Enquire
-	9D33310B08BA	Speaker Grille, Black Rear Quarter Lower, RH	9D33310B08BA Speaker Grille, Black Rear Quarter Lower, RH B&O	-	1	Enquire
-	EG43310B09CA	Speaker Grille, Rear Quarter Lower, LH	EG43310B09CA Speaker Grille, Rear Quarter Lower, LH Alpine	-	1	Enquire
-	9D33310B09AC	Speaker Grille, Rear Quarter Lower, LH	9D33310B09AC Speaker Grille, Rear Quarter Lower, LH B&O	-	1	Enquire
-	9D33310B09BA	Speaker Grille, Black Rear Quarter Lower, LH	9D33310B09BA Speaker Grille, Black Rear Quarter Lower, LH B&O	-	1	Enquire
1	CG4331112AAW	Panel Assy, Rear Quarter Upper, RH	CG4331112AAW Panel Assy, Rear Quarter Upper, RH -	-	1	Enquire
2	13AA823CP	BRKT LATCH MTG RH - LATCH MOUNTING - RH	13AA823CP BRKT LATCH MTG RH - LATCH MOUNTING - RH Alpine. Includes Item 13	-	1	Enquire
3	4G4324858AEW	Bezel Assembly, Front Seat Belt, RH	4G4324858AEW Bezel Assembly, Front Seat Belt, RH -	-	1	Enquire
4	4G43V850063AA	Screw, Cap Hd	4G43V850063AA Screw, Cap Hd -	-	2	Enquire
5	703175	SCREW M4 x 10 PAN TORX CHROME FREE	703175 SCREW M4 x 10 PAN TORX CHROME FREE -	-	2	Enquire
6	704328	Screw, M5 x 20, Torx Pan Head	704328 Screw, M5 x 20, Torx Pan Head -	-	2	Enquire
7	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	2	Enquire
8	703174	Bolt, M4, Pan Head	703174 Bolt, M4, Pan Head -	-	2	Enquire
9	703756	WASHER-M4 PLAIN	703756 WASHER-M4 PLAIN -	-	2	Enquire
10	702514	SCREW M6 x 14 PAN HEAD	702514 SCREW M6 x 14 PAN HEAD -	-	2	Enquire
11	701581	FIRTREE FLAT HEAD	701581 FIRTREE FLAT HEAD -	-	8	Enquire
12	4G43290E16AB	Plate, Light to Quarter Panel	4G43290E16AB Plate, Light to Quarter Panel -	-	2	Enquire
13	EG43310B08CA	Speaker Grille, Rear Quarter Lower, RH	EG43310B08CA Speaker Grille, Rear Quarter Lower, RH Alpine	-	1	Enquire
14	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH 3 per Speaker Grille	-	6	Enquire
15	9G4318564AA	Hook, Coat	9G4318564AA Hook, Coat -	-	1	Enquire
16	697810PK	WSHR-M6x25 SSBLK(10)	697810PK WSHR-M6x25 SSBLK(10) 1 per Coat Hook, Pack of 10	-	1	Enquire
17	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking 1 per Coat Hook	-	1	Enquire
18	610261357	FOAM STRIP AD BK	610261357 FOAM STRIP AD BK -	-	2	Enquire
