Front Seat to (V) A09109 of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

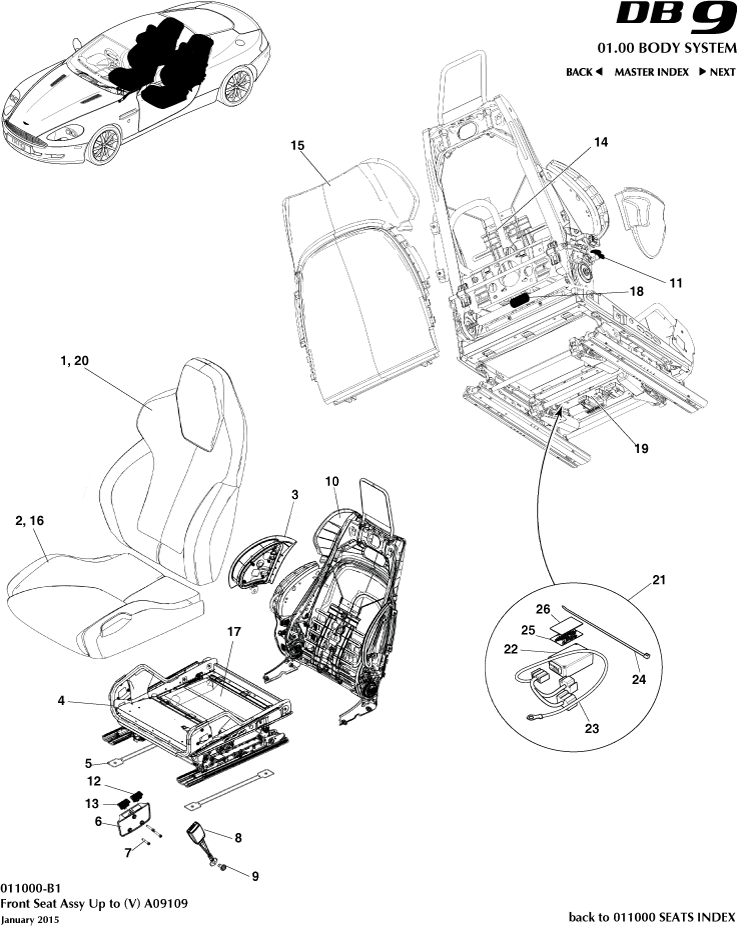

Aston Martin GT DB9 (2004-2017) - Front Seat to (V) A09109

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4360008ABW	ASY FRONT SEAT RH	4G4360008ABW ASY FRONT SEAT RH Up to (V) A06677	-	1	Enquire
-	7G4360008ADW	ASSY FRONT SEAT RH	7G4360008ADW ASSY FRONT SEAT RH From (V) A06678	-	1	Enquire
-	4G4360009ABW	ASSY FRONT SEAT LH	4G4360009ABW ASSY FRONT SEAT LH Up to (V) A06677	-	1	Enquire
-	7G4360009ADW	ASSY FRONT SEAT LHS	7G4360009ADW ASSY FRONT SEAT LHS From (V) A06678	-	1	Enquire
-	7G4364572ADW	FRONT SEAT SQUAB RH COVER ASSY	7G4364572ADW FRONT SEAT SQUAB RH COVER ASSY From (V) A06678	-	1	Enquire
-	4G4364573ABW	FRONT SEAT SQUAB LH COVER ASSY	4G4364573ABW FRONT SEAT SQUAB LH COVER ASSY Up to (V) A06677	-	1	Enquire
-	7G4364573ADW	FRONT SEAT SQUAB LH COVER ASSY	7G4364573ADW FRONT SEAT SQUAB LH COVER ASSY From (V) A06678	-	1	Enquire
-	7G4362900ADW	COVER ASSY FRONT SEAT CUSHION RH	7G4362900ADW COVER ASSY FRONT SEAT CUSHION RH From (V) A06678	-	1	Enquire
-	4G4362901AAW	FRONT SEAT CUSHION LH COVER ASSY	4G4362901AAW FRONT SEAT CUSHION LH COVER ASSY Up to (V) A06677	-	1	Enquire
-	7G4362901ADW	COVER ASSY FRONT SEAT CUSHION LH	7G4362901ADW COVER ASSY FRONT SEAT CUSHION LH From (V) A06678	-	1	Enquire
-	4G437410690	Airbag, Side, RH	4G437410690 Airbag, Side, RH From (V) A06678	-	1	Enquire
-	4G43600B95AAW	SIDE AIRBAG LH	4G43600B95AAW SIDE AIRBAG LH Up to (V) A06677	-	1	Enquire
-	4G437410689	Airbag, Side, LH	4G437410689 Airbag, Side, LH From (V) A06678	-	1	Enquire
-	4G43L60344AC	FR FRT ST CSHN	4G43L60344AC FR FRT ST CSHN Up to (V) A06677	-	2	Enquire
-	7G43L60344AD	FRONT SEAT CUSHION FRAME HEIGHT ADJUST	7G43L60344AD FRONT SEAT CUSHION FRAME HEIGHT ADJUST From (V) A06678	-	2	Enquire
-	7G43L60344AD	FRONT SEAT CUSHION FRAME HEIGHT ADJUST	7G43L60344AD FRONT SEAT CUSHION FRAME HEIGHT ADJUST From (V) A06678	-	1	Enquire
-	7G43L60344CB	Cushion Frame, Front Seat, Non Height Adjusting, OCS	7G43L60344CB Cushion Frame, Front Seat, Non Height Adjusting, OCS From (V) A06678	-	1	Enquire
-	702940	SCREW M8x30 HF PI	702940 SCREW M8x30 HF PI -	-	8	Enquire
-	7G4314E693BA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	7G4314E693BA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH From (V) A06678, With Switches	-	1	Enquire
-	7G4314E693AA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH From (V) A06678, With Switches	-	1	Enquire
-	7G4364800AE	FR ST SQB FRAME MEM	7G4364800AE FR ST SQB FRAME MEM From (V) A06678	-	1	Enquire
-	4G4364801AB	FRONT SEAT SQUAB FRAME LH	4G4364801AB FRONT SEAT SQUAB FRAME LH Up to (V) A06677	-	1	Enquire
-	7G4364802AE	FRT ST SQB FRM MEM	7G4364802AE FRT ST SQB FRM MEM From (V) A06678	-	1	Enquire
-	4G4361199AA	HNDL FRT ST BK ADJ	4G4361199AA HNDL FRT ST BK ADJ Up to (V) A06677	-	1	Enquire
-	7G4314D693AA	SEAT SWITCH ASSEMBLY LUMBAR UPPER	7G4314D693AA SEAT SWITCH ASSEMBLY LUMBAR UPPER From (V) A06678	-	1	Enquire
-	7G4314D692AA	SEAT SWITCH ASSEMBLY LUMBAR LOWER	7G4314D692AA SEAT SWITCH ASSEMBLY LUMBAR LOWER From (V) A06678	-	1	Enquire
-	7G4314D694AA	SEAT HEATING SWITCH - SEAT	7G4314D694AA SEAT HEATING SWITCH - SEAT From (V) A06678	-	2	Enquire
-	920033482	SPARCO RACING PANT XL/XXL	920033482 SPARCO RACING PANT XL/XXL From (V) A06678	-	1	Enquire
-	920033483	SPARCO UNDER HELMET	920033483 SPARCO UNDER HELMET Up to (V) A06677	-	1	Enquire
-	920033486	SPARCO RACING GLOVES 10	920033486 SPARCO RACING GLOVES 10 From (V) A06678	-	1	Enquire
-	4G439515AA	FRONT SEAT CUSHION FOAM RH	4G439515AA FRONT SEAT CUSHION FOAM RH Up to (V) A06677	-	1	Enquire
-	920033487	SPARCO RACING GLOVES 11	920033487 SPARCO RACING GLOVES 11 From (V) A06678	-	1	Enquire
-	4G439516AA	FRONT SEAT CUSHION FOAM LH	4G439516AA FRONT SEAT CUSHION FOAM LH Up to (V) A06677	-	1	Enquire
-	7G439516AB	FRT ST CUSH FOAM LH	7G439516AB FRT ST CUSH FOAM LH From (V) A06678	-	1	Enquire
-	7G4360136ADW	Squab assy, front seat trimmed, RH	7G4360136ADW Squab assy, front seat trimmed, RH From (V) A06678	-	1	Enquire
-	4G4360137AAW	FRONT SEAT SQUAB LH TRIMMED ASSY	4G4360137AAW FRONT SEAT SQUAB LH TRIMMED ASSY Up to (V) A06677	-	1	Enquire
-	920033491	SPARCO FULL FACE HELMET S	920033491 SPARCO FULL FACE HELMET S From (V) A06678	-	1	Enquire
-	4G434D9513AA	SQUAB FOAM RH	4G434D9513AA SQUAB FOAM RH Up to (V) A06677	-	1	Enquire
-	7G434D9513AB	SQUAB FOAM RH	7G434D9513AB SQUAB FOAM RH From (V) A06678	-	1	Enquire
-	4G434D9514AA	SQUAB FOAM LH	4G434D9514AA SQUAB FOAM LH Up to (V) A06677	-	1	Enquire
-	7G434D9514AB	SEAT BACK FOAM LH	7G434D9514AB SEAT BACK FOAM LH From (V) A06678	-	1	Enquire
-	4G4314D698AA	CUSHION HEATING ELEMENT	4G4314D698AA CUSHION HEATING ELEMENT Up to (V) A06677	-	2	Enquire
-	7G4314D698AB	ELM ASY ST CSHN HT	7G4314D698AB ELM ASY ST CSHN HT From (V) A06678	-	2	Enquire
-	4G4314D696AA	SQUAB HEATING ELEMENT	4G4314D696AA SQUAB HEATING ELEMENT Up to (V) A06677	-	2	Enquire
-	7G4314D696AB	Heating Element, Squab	7G4314D696AB Heating Element, Squab From (V) A06678	-	2	Enquire
-	4G4319K322AA	HEATING RELAYS	4G4319K322AA HEATING RELAYS Up to (V) A06677	-	4	Enquire
-	4G437410125	SEAT BACK SHELL KIT	4G437410125 SEAT BACK SHELL KIT -	-	1	Enquire
-	4G437410126	SEAT HARNESS KIT	4G437410126 SEAT HARNESS KIT Up to (V) A06677	-	1	Enquire
-	4G437410913	SEAT HARNESS WITH MEMORY	4G437410913 SEAT HARNESS WITH MEMORY 07MY	-	1	Enquire
-	4G437410914	SEAT HARNESS NON MEMORY	4G437410914 SEAT HARNESS NON MEMORY 07MY	-	1	Enquire
-	7G437411070	SEAT HARNESS	7G437411070 SEAT HARNESS From (V)A06678	-	1	Enquire
-	4G437410122	SEAT SIDE COVER RH	4G437410122 SEAT SIDE COVER RH -	-	1	Enquire
-	4G437410123	SEAT SIDE COVER LH	4G437410123 SEAT SIDE COVER LH -	-	1	Enquire
-	SY9Y17504AA	WPR MTR ASY RHS RHD	SY9Y17504AA WPR MTR ASY RHS RHD For vehicles between Vin A06678 - B12484 Please refer to SB 01-0331	-	1	Enquire
-	SY9Y1188186AA	FLR VIN PL CVR PNL	SY9Y1188186AA FLR VIN PL CVR PNL For vehicles between Vin A06678 - B12484 Please refer to SB 01-0331	-	1	Enquire
-	7G4314D715AD	FRT ST QUD REJ ECU D	7G4314D715AD FRT ST QUD REJ ECU D From (V) A06678	-	1	Enquire
-	7G4314D715BD	FRT ST QUD REJ ECU P	7G4314D715BD FRT ST QUD REJ ECU P From (V) A06678	-	1	Enquire
-	7G43625B00CA	MOD PASS SEAT WGHT	7G43625B00CA MOD PASS SEAT WGHT From (V) A06678 to A13313	-	1	Enquire
-	7G43625B00CC	Module, Passenger Seat Weight	7G43625B00CC Module, Passenger Seat Weight From (V) A13314	-	1	Enquire
-	7G43625B02BA	Sensor Passenger Seat Weight	7G43625B02BA Sensor Passenger Seat Weight From (V) A06678	-	1	Enquire
-	22AA815GP	ASSY BRKT RR FENDER INR RH	22AA815GP ASSY BRKT RR FENDER INR RH From (V) A06678	-	2	Enquire
-	7G43605W00ACW	Strap, Squab Release, Manual Override	7G43605W00ACW Strap, Squab Release, Manual Override From (V) A06678	-	2	Enquire
-	6G33062A00AA	GLOVEBOX SWITCH	6G33062A00AA GLOVEBOX SWITCH From (V) A06678	-	2	Enquire
-	7G43061B53AB	SWITCH VALENCE COVER	7G43061B53AB SWITCH VALENCE COVER From (V) A06678	-	2	Enquire
1	4G4364572ABW	FRONT SEAT SQUAB RH COVER ASSY	4G4364572ABW FRONT SEAT SQUAB RH COVER ASSY Up to (V) A06677	-	1	Enquire
2	4G4362900AAW	FRONT SEAT CUSHION RH COVER ASSY	4G4362900AAW FRONT SEAT CUSHION RH COVER ASSY Up to (V) A06677	-	1	Enquire
3	4G43600B94AAW	SIDE AIRBAG RH	4G43600B94AAW SIDE AIRBAG RH Up to (V) A06677	-	1	Enquire
4	4G437410116	Track Assembly, Front Lightweight Seat	4G437410116 Track Assembly, Front Lightweight Seat Up to (V) A06677	-	2	Enquire
5	4G4361888AC	FRONT SEAT SPACER	4G4361888AC FRONT SEAT SPACER Up to (V) A06677	-	4	Enquire
6	4G43647K22AA	SWITCH ASSY VALANCE HEATER & LUMBAR	4G43647K22AA SWITCH ASSY VALANCE HEATER & LUMBAR Up to (V) A06677, Less Switches	-	1	Enquire
7	4G43618A38AB	M6 X 35 SKT HD SCREW BLACK S424	4G43618A38AB M6 X 35 SKT HD SCREW BLACK S424 Up to (V) A06677	-	3	Enquire
8	4G43613K22BC	BKLE ASY FRT BEL	4G43613K22BC BKLE ASY FRT BEL 07MY	-	2	Enquire
9	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	2	Enquire
10	4G4364800AB	FRONT SEAT SQUAB FRAME RH	4G4364800AB FRONT SEAT SQUAB FRAME RH Up to (V) A06677	-	1	Enquire
11	4G4361198AA	HNDL FRT ST BK ADJ R	4G4361198AA HNDL FRT ST BK ADJ R Up to (V) A06677	-	1	Enquire
12	4G4314D693AA	SEAT SWITCH ASSEMBLY LUMBAR	4G4314D693AA SEAT SWITCH ASSEMBLY LUMBAR Up to (V) A06677	-	1	Enquire
13	4G4314D694AA	SEAT HEATING SWITCH - SEAT	4G4314D694AA SEAT HEATING SWITCH - SEAT Up to (V) A06677	-	2	Enquire
14	4G437410124	LUMBAR SUPPORT KIT	4G437410124 LUMBAR SUPPORT KIT Up to (V) A06677	-	1	Enquire
15	920033480	SPARCO RACING PANT XS/S	920033480 SPARCO RACING PANT XS/S Up to (V) A06677	-	2	Enquire
16	4G4360050ABW	FRONT SEAT CUSHION RH TRIMMED ASSY	4G4360050ABW FRONT SEAT CUSHION RH TRIMMED ASSY Up to (V) A06677	-	1	Enquire
17	4G437410119	SUSPENSION MAT	4G437410119 SUSPENSION MAT -	-	2	Enquire
18	4G437410127	Kit, Squab Motor	4G437410127 Kit, Squab Motor For pre 07MY cars only	-	2	Enquire
19	4G437410118	CONNECTOR BRACKET	4G437410118 CONNECTOR BRACKET -	-	2	Enquire
20	4G4360136AAW	FRONT SEAT SQUAB RH TRIMMED ASSY	4G4360136AAW FRONT SEAT SQUAB RH TRIMMED ASSY Up to (V) A06677	-	1	Enquire
21	FG43632B22AA	SUPERVISOR KIT	FG43632B22AA SUPERVISOR KIT See QN-01-0026, January 2015	-	1	Enquire
22	FG4318B512AA	SUPERVISOR BOX	FG4318B512AA SUPERVISOR BOX Part of kit #21	-	2	Enquire
23	FG4314B510AA	SUPERVISOR HARNESS	FG4314B510AA SUPERVISOR HARNESS Part of kit #21	-	2	Enquire
24	4G43N02091AB	Tie, Wrap	4G43N02091AB Tie, Wrap Part of kit #21	-	2	Enquire
25	920033488	SPARCO RACING GLOVES 12	920033488 SPARCO RACING GLOVES 12 Part of kit #21	-	2	Enquire
26	920033489	SPARCO RACING GLOVES 13	920033489 SPARCO RACING GLOVES 13 Part of kit #21	-	2	Enquire
