Body Exterior Trim & Ornamentation - Upper Exterior Finishers, Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Body Exterior Trim & Ornamentation - Upper Exterior Finishers, Volante

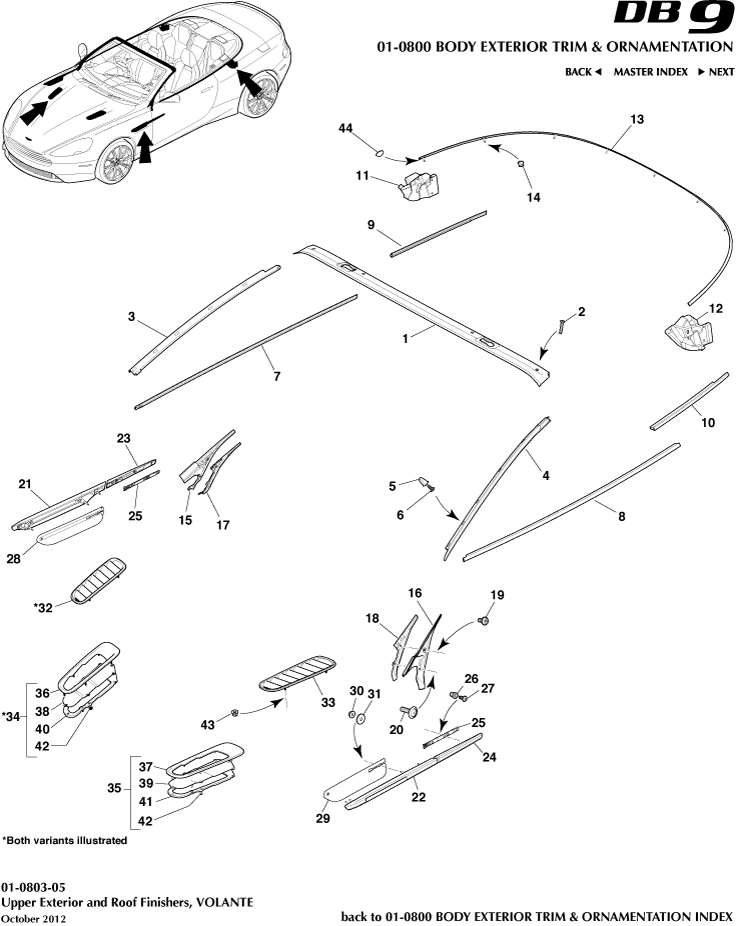

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FG43519A37BA	W/SHIELD FIN CONV RH	FG43519A37BA W/SHIELD FIN CONV RH Black, 15MY	-	1	Enquire
-	FG43519A36BA	W/SHIELD FIN CONV LH	FG43519A36BA W/SHIELD FIN CONV LH Black, 15MY	-	1	Enquire
-	FG43F20562BA	DR WAIT SEAL OUTER	FG43F20562BA DR WAIT SEAL OUTER Black, 15MY	-	1	Enquire
-	FG43F20563BA	DR WAIST SEAL OTR LH	FG43F20563BA DR WAIST SEAL OTR LH Black, 15MY	-	1	Enquire
-	FG431228494BA	RR QTR GLASS WAIST	FG431228494BA RR QTR GLASS WAIST Black, 15MY	-	1	Enquire
-	FG431228495BA	RR QTR GLASS WAIST	FG431228495BA RR QTR GLASS WAIST Black, 15MY	-	1	Enquire
-	FG431228494DA	TONNEAU FIN SCALP	FG431228494DA TONNEAU FIN SCALP Black, 15MY	-	1	Enquire
-	FG43280K62CB	SIDE STRAKE FENDER R	FG43280K62CB SIDE STRAKE FENDER R Carbon Fibre	-	1	Enquire
-	FG43280K63CB	SIDE STRAKE FENDER L	FG43280K63CB SIDE STRAKE FENDER L Carbon Fibre	-	1	Enquire
-	FG43018K28CB	SIDE STRAKE DOOR RH	FG43018K28CB SIDE STRAKE DOOR RH Carbon Fibre	-	1	Enquire
-	FG43018K29CB	SIDE STRAKE DOOR LH	FG43018K29CB SIDE STRAKE DOOR LH Carbon Fibre	-	1	Enquire
-	CG43280B83BD	MESH SIDE STRAKE RH	CG43280B83BD MESH SIDE STRAKE RH From VIN A16888, Titanium	-	1	Enquire
-	CG43280B83CA	Mesh, Side Strake, Magnum Silver, RH	CG43280B83CA Mesh, Side Strake, Magnum Silver, RH From 14.5MY, Magnum Silver	-	1	Enquire
-	CG43280B83AC	Mesh, Side Strake, Black, RH	CG43280B83AC Mesh, Side Strake, Black, RH From 14.5MY, Black	-	1	Enquire
-	CG43280B84BD	MESH SIDE STRAKE LH	CG43280B84BD MESH SIDE STRAKE LH From VIN A16888, Titanium	-	1	Enquire
-	CG43280B84CA	Mesh, Side Strake, Magnum Silver, LH	CG43280B84CA Mesh, Side Strake, Magnum Silver, LH From 14.5MY, Magnum Silver	-	1	Enquire
-	CG43280B84AC	Mesh, Side Strake, Black, LH	CG43280B84AC Mesh, Side Strake, Black, LH From 14.5MY, Black	-	1	Enquire
-	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Titanium. Order Components.	-	1	Enquire
-	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Titanium. Order Components.	-	1	Enquire
-	CG4316C692AB	Mesh, Hood, Black, RH	CG4316C692AB Mesh, Hood, Black, RH Black	-	1	Enquire
-	CG4316C693AB	Mesh, Hood, Black, LH	CG4316C693AB Mesh, Hood, Black, LH Black	-	1	Enquire
1	AD33L03065BA	Finisher, Header Windscreen Front	AD33L03065BA Finisher, Header Windscreen Front -	-	1	Enquire
2	AG43608073AA	SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK	AG43608073AA SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK -	-	2	Enquire
5	9G3351756AA	Rivnut, M5 Closed Hex	9G3351756AA Rivnut, M5 Closed Hex -	-	10	Enquire
6	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) 10 Per Pack	-	10	Enquire
7	4G43F20562BA	Weatherstrip, Front Door Outer, RH	4G43F20562BA Weatherstrip, Front Door Outer, RH Bright	-	1	Enquire
8	4G43F20563BA	Weatherstrip, Front Door Outer, LH	4G43F20563BA Weatherstrip, Front Door Outer, LH Bright	-	1	Enquire
9	9G431228494CA	Weatherstrip, Rear Quarter Glass outer, RH	9G431228494CA Weatherstrip, Rear Quarter Glass outer, RH Bright	-	1	Enquire
10	9G431228495CA	Weatherstrip Rear Quarter Glass Outer LH	9G431228495CA Weatherstrip Rear Quarter Glass Outer LH Bright	-	1	Enquire
11	4G43A410K24BE	Bracket, Panel Rear Body Pillar Closing, RH	4G43A410K24BE Bracket, Panel Rear Body Pillar Closing, RH -	-	1	Enquire
12	4G43A410K25BE	Bracket, Panel Rear Body Pillar Closing, LH	4G43A410K25BE Bracket, Panel Rear Body Pillar Closing, LH -	-	1	Enquire
13	4G431228494DA	TONNEAU FIN SCALP	4G431228494DA TONNEAU FIN SCALP Bright	-	1	Enquire
14	708867	P/SMPL-SILVER FOX	708867 P/SMPL-SILVER FOX -	-	2	Enquire
15	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH	4G43C02564BD Retainer Assy, Front Body W/Strip Cover Primary, RH -	-	1	Enquire
16	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	4G43C02565BD Retainer Assy, Front Body W/Strip Cover Primary, LH -	-	2	Enquire
17	4G43C02564AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	4G43C02564AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH -	-	1	Enquire
18	4G43C02565AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	4G43C02565AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH -	-	1	Enquire
19	4G4351757AA	Screw M4 Self Tap M4 (Mini C Rail)	4G4351757AA Screw M4 Self Tap M4 (Mini C Rail) -	-	2	Enquire
20	701573	Screw and Washer, M4 x 16, Pan Head	701573 Screw and Washer, M4 x 16, Pan Head -	-	2	Enquire
21	CG43280K62AB	Side Strake, Fender, RH	CG43280K62AB Side Strake, Fender, RH -	-	1	Enquire
22	CG43280K63AB	Side Strake, Fender, LH	CG43280K63AB Side Strake, Fender, LH -	-	1	Enquire
23	CG43018K28AC	Side Strake, Door, RH	CG43018K28AC Side Strake, Door, RH -	-	1	Enquire
24	CG43018K29AC	Side Strake, Door, LH	CG43018K29AC Side Strake, Door, LH -	-	1	Enquire
25	CG430937AC	Retainer, Door Side Strake	CG430937AC Retainer, Door Side Strake -	-	2	Enquire
26	AD43E620011AB	M5 HEX OPEN RIVNUT	AD43E620011AB M5 HEX OPEN RIVNUT -	-	6	Enquire
27	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) 10 Per Pack	-	6	Enquire
28	CG43280B83BC	MESH SIDE STRAKE RH	CG43280B83BC MESH SIDE STRAKE RH Up To VIN A16887, Titanium	-	1	Enquire
29	CG43280B84BC	MESH SIDE STRAKE LH	CG43280B84BC MESH SIDE STRAKE LH Up To VIN A16887, Titanium	-	1	Enquire
30	13A5568CP	BAFFLE MOULDING - B-POST - RH	13A5568CP BAFFLE MOULDING - B-POST - RH -	-	8	Enquire
31	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 20 Per Pack	-	2	Enquire
32	AD4316C692AA	Louvre, Hood, RH	AD4316C692AA Louvre, Hood, RH Chrome	-	1	Enquire
33	AD4316C693AA	Louvre, Hood, LH	AD4316C693AA Louvre, Hood, LH Chrome	-	1	Enquire
34	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Black. Order Components.	-	1	Enquire
35	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Black. Order Components.	-	1	Enquire
36	CG4316C690AB	Vent Surround, Hood, Titanium Silver, RH	CG4316C690AB Vent Surround, Hood, Titanium Silver, RH Titanium Silver	-	1	Enquire
37	CG4316C691AB	Vent Surround, Hood, Titanium Silver, LH	CG4316C691AB Vent Surround, Hood, Titanium Silver, LH Titanium Silver	-	1	Enquire
38	CG4316C692BB	Mesh, Hood, Titanium Silver, RH	CG4316C692BB Mesh, Hood, Titanium Silver, RH Titanium Silver	-	2	Enquire
39	CG4316C693BB	Mesh, Hood, Titanium Silver, LH	CG4316C693BB Mesh, Hood, Titanium Silver, LH Titanium Silver	-	1	Enquire
40	CG4316C694AC	Carrier, Vent, RH	CG4316C694AC Carrier, Vent, RH -	-	1	Enquire
41	CG4316C695AC	Carrier, Vent, LH	CG4316C695AC Carrier, Vent, LH -	-	1	Enquire
42	704771	NUT M4 HEX FLANGE	704771 NUT M4 HEX FLANGE -	-	8	Enquire
43	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE Hood Louvre Fixtures Only	-	8	Enquire
44	CG43SJ5306AA	Bumpon	CG43SJ5306AA Bumpon -	-	2	Enquire
