Aston Martin GT DB9 (2004-2017) - Rear Bumper

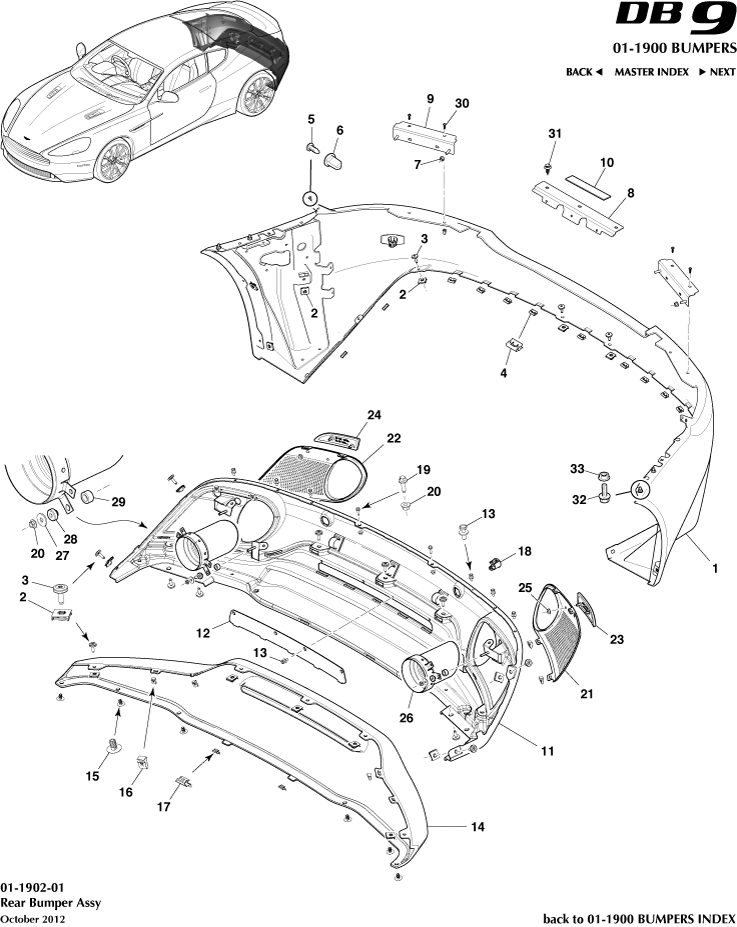

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D3317K835DL	Bumper Cover Assy, Rear PDC	8D3317K835DL Bumper Cover Assy, Rear PDC FED	-	1	Enquire
-	DG4317E955BA	Diffuser Assembly, Rear	DG4317E955BA Diffuser Assembly, Rear Carbon Fibre	-	1	Enquire
-	GG4317E955AA	DIFFUSER REAR-BLACK	GG4317E955AA DIFFUSER REAR-BLACK Gloss Black, GT	-	1	Enquire
-	GG4333612AA	DIFFUSER BLD ASY	GG4333612AA DIFFUSER BLD ASY Gloss Black, GT	-	1	Enquire
-	4G433511099	EXH T/PIPE-CERAMIC	4G433511099 EXH T/PIPE-CERAMIC Graphite	-	2	Enquire
-	AG435K238BA	EXHAUST FINISHER	AG435K238BA EXHAUST FINISHER Black	-	2	Enquire
1	8D3317K835CL	Bumper Cover Assy, Rear PDC	8D3317K835CL Bumper Cover Assy, Rear PDC ROW	-	1	Enquire
3	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) 20 Per Pack	-	17	Enquire
4	704383	Clip, Edge	704383 Clip, Edge -	-	16	Enquire
5	703104	Screw 4.8x1.59x19 04.8 Chrome Free Self Taping	703104 Screw 4.8x1.59x19 04.8 Chrome Free Self Taping -	-	2	Enquire
6	701656PK	RETAINER(PACK OF 10)	701656PK RETAINER(PACK OF 10) 10 Per Pack	-	6	Enquire
7	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	8	Enquire
8	4G4317B681AH	BUMPER MOUNTING BRACKET - CENTRE	4G4317B681AH BUMPER MOUNTING BRACKET - CENTRE -	-	1	Enquire
9	4G4317B930AA	Bracket, Bumper Mounting, Outer	4G4317B930AA Bracket, Bumper Mounting, Outer -	-	2	Enquire
10	4G4317B681BA	Dual lock, Rear Bumper Bracket	4G4317B681BA Dual lock, Rear Bumper Bracket -	-	1	Enquire
11	CG4317E955AE	DIFFUSER REAR	CG4317E955AE DIFFUSER REAR Graphite	-	1	Enquire
12	CG4301950AA	Mesh, Rear Centre	CG4301950AA Mesh, Rear Centre -	-	1	Enquire
13	4G437810814	Fastener Assembly, 6.2x3, 5.8, Push In	4G437810814 Fastener Assembly, 6.2x3, 5.8, Push In -	-	10	Enquire
14	CG4333612AC	DIFFUSER PR ASSY	CG4333612AC DIFFUSER PR ASSY Graphite	-	1	Enquire
15	1R12642790AAPK	Scrivet 8mm DIA PNL 3-10mm (Pack of 5)	1R12642790AAPK Scrivet 8mm DIA PNL 3-10mm (Pack of 5) 5 Per Pack	-	6	Enquire
16	11A5697CP	OUTLET - 12V	11A5697CP OUTLET - 12V -	-	12	Enquire
17	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10) 10 Per Pack	-	2	Enquire
18	8D333710004	Bracket, Park Aid Sensor Inner	8D333710004 Bracket, Park Aid Sensor Inner -	-	2	Enquire
19	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head -	-	2	Enquire
20	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head -	-	2	Enquire
21	CG4301949AA	MESH REAR LOWER LH DIFFUSER	CG4301949AA MESH REAR LOWER LH DIFFUSER -	-	1	Enquire
22	CG4301948AA	MESH REAR LOWER RH DIFFUSER	CG4301948AA MESH REAR LOWER RH DIFFUSER -	-	1	Enquire
23	4G4313A566AA	RR REFLEX REFLECTOR	4G4313A566AA RR REFLEX REFLECTOR -	-	1	Enquire
24	4G4313A565AA	RR REFLEX REFLECTOR	4G4313A565AA RR REFLEX REFLECTOR -	-	1	Enquire
26	AG435K238AC	Finisher, Exhaust	AG435K238AC Finisher, Exhaust Bright	-	2	Enquire
27	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 20 Per Pack	-	4	Enquire
28	6G335K239BAPK	SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10)	6G335K239BAPK SPACER-CERAMIC TAILPIPE MTG INNER (PACK OF 10) 10 Per Pack	-	4	Enquire
29	6G335K239CAPK	SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10)	6G335K239CAPK SPACER-CERAMIC TAILPIPE MTG OUTER (PACK OF 10) 10 Per Pack	-	4	Enquire
30	701559	Screw, M4 Self Tapping	701559 Screw, M4 Self Tapping -	-	4	Enquire
31	4G43STC3710BA	Fir Tree, Key Hole	4G43STC3710BA Fir Tree, Key Hole -	-	2	Enquire
32	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm -	-	4	Enquire
33	RY5367480BAW	SUBWFR SPKR ASSY	RY5367480BAW SUBWFR SPKR ASSY -	-	4	Enquire
