Body Exterior Trim & Ornamentation - Upper Exterior Finishers, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Body Exterior Trim & Ornamentation - Upper Exterior Finishers, Coupe

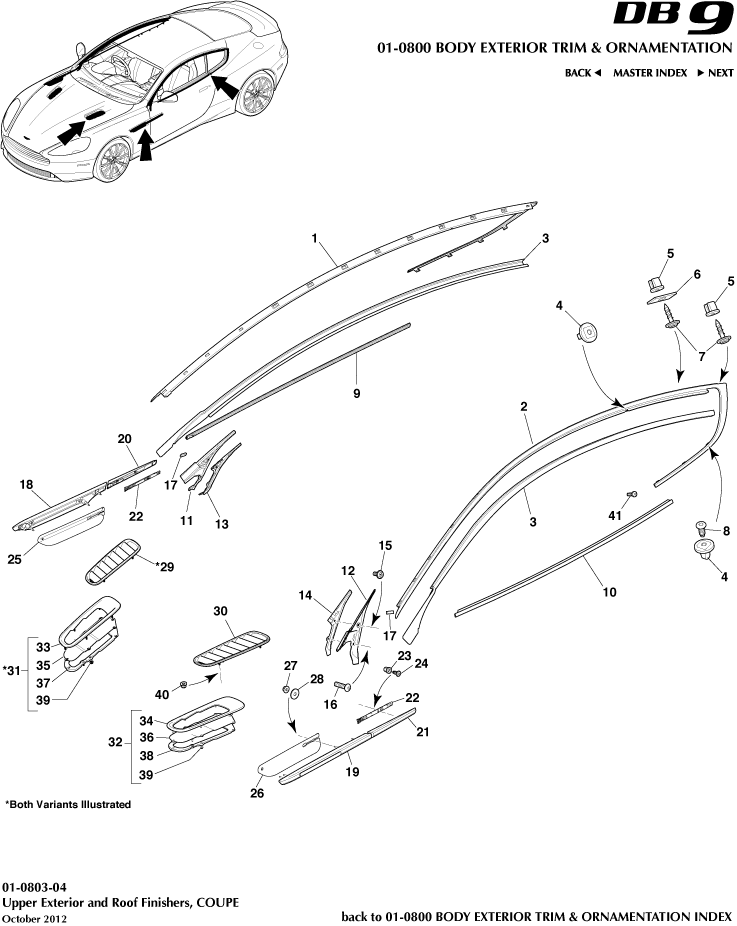

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	FG43C519A37CC	ROOF FINSHER SIDE	FG43C519A37CC ROOF FINSHER SIDE Black, 15MY	-	1	Enquire
-	4G43519A37CE	ROOF FINISHER SIDE	4G43519A37CE ROOF FINISHER SIDE Bright, 16MY	-	1	Enquire
-	FG43C519A37CE	ROOF FINISHER SIDE	FG43C519A37CE ROOF FINISHER SIDE Black, 16MY	-	1	Enquire
-	FG43C519A36CC	ROOF FINISHER SIDE G	FG43C519A36CC ROOF FINISHER SIDE G Black, 15MY	-	1	Enquire
-	4G43519A36CE	ROOF FINISHER SIDE G	4G43519A36CE ROOF FINISHER SIDE G Bright, 16MY	-	1	Enquire
-	FG43C519A36CE	ROOF FINISHER SIDE G	FG43C519A36CE ROOF FINISHER SIDE G Black, 16MY	-	1	Enquire
-	FG43F20562BA	DR WAIT SEAL OUTER	FG43F20562BA DR WAIT SEAL OUTER Black, 15MY	-	1	Enquire
-	FG43F20563BA	DR WAIST SEAL OTR LH	FG43F20563BA DR WAIST SEAL OTR LH Black, 15MY	-	1	Enquire
-	FG43280K62CB	SIDE STRAKE FENDER R	FG43280K62CB SIDE STRAKE FENDER R Carbon Fibre	-	1	Enquire
-	FG43280K63CB	SIDE STRAKE FENDER L	FG43280K63CB SIDE STRAKE FENDER L Carbon Fibre	-	1	Enquire
-	FG43018K28CB	SIDE STRAKE DOOR RH	FG43018K28CB SIDE STRAKE DOOR RH Carbon Fibre	-	1	Enquire
-	FG43018K29CB	SIDE STRAKE DOOR LH	FG43018K29CB SIDE STRAKE DOOR LH Carbon Fibre	-	1	Enquire
-	CG43280B83BD	MESH SIDE STRAKE RH	CG43280B83BD MESH SIDE STRAKE RH From VIN A16888Titanium	-	1	Enquire
-	CG43280B83CA	Mesh, Side Strake, Magnum Silver, RH	CG43280B83CA Mesh, Side Strake, Magnum Silver, RH From 14.5MY, Magnum Silver	-	1	Enquire
-	CG43280B83AC	Mesh, Side Strake, Black, RH	CG43280B83AC Mesh, Side Strake, Black, RH From 14.5MY, Black	-	1	Enquire
-	CG43280B84BD	MESH SIDE STRAKE LH	CG43280B84BD MESH SIDE STRAKE LH From VIN A16888, Titanium	-	1	Enquire
-	CG43280B84CA	Mesh, Side Strake, Magnum Silver, LH	CG43280B84CA Mesh, Side Strake, Magnum Silver, LH From 14.5MY, Magnum Silver	-	1	Enquire
-	CG43280B84AC	Mesh, Side Strake, Black, LH	CG43280B84AC Mesh, Side Strake, Black, LH From 14.5MY, Black	-	1	Enquire
-	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Titanium. Order Components	-	1	Enquire
-	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Titanium. Order Components	-	1	Enquire
-	CG4316C692AB	Mesh, Hood, Black, RH	CG4316C692AB Mesh, Hood, Black, RH -	-	1	Enquire
-	CG4316C693AB	Mesh, Hood, Black, LH	CG4316C693AB Mesh, Hood, Black, LH -	-	1	Enquire
1	4G43519A37CC	ROOF FINISHER SIDE	4G43519A37CC ROOF FINISHER SIDE Bright	-	1	Enquire
2	4G43519A36CC	ROOF FINISHER SIDE G	4G43519A36CC ROOF FINISHER SIDE G Bright	-	1	Enquire
3	4G4331300ABW	Cover, Body Pillar, Alcantara	4G4331300ABW Cover, Body Pillar, Alcantara -	-	2	Enquire
4	701656PK	RETAINER(PACK OF 10)	701656PK RETAINER(PACK OF 10) 10 Per Pack	-	10	Enquire
5	7G43143002AA	GROMMET NUT 4.2	7G43143002AA GROMMET NUT 4.2 -	-	26	Enquire
6	8G434999AA	Washer, Load Spreading	8G434999AA Washer, Load Spreading -	-	16	Enquire
7	703104	Screw 4.8x1.59x19 04.8 Chrome Free Self Taping	703104 Screw 4.8x1.59x19 04.8 Chrome Free Self Taping -	-	34	Enquire
8	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) 10 Per Pack	-	8	Enquire
9	4G43F20562BA	Weatherstrip, Front Door Outer, RH	4G43F20562BA Weatherstrip, Front Door Outer, RH Bright	-	1	Enquire
10	4G43F20563BA	Weatherstrip, Front Door Outer, LH	4G43F20563BA Weatherstrip, Front Door Outer, LH Bright	-	1	Enquire
11	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH	4G43C02564BD Retainer Assy, Front Body W/Strip Cover Primary, RH -	-	1	Enquire
12	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	4G43C02565BD Retainer Assy, Front Body W/Strip Cover Primary, LH -	-	1	Enquire
13	4G43C02564AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	4G43C02564AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH -	-	1	Enquire
14	4G43C02565AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	4G43C02565AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH -	-	1	Enquire
15	4G4351757AA	Screw M4 Self Tap M4 (Mini C Rail)	4G4351757AA Screw M4 Self Tap M4 (Mini C Rail) -	-	2	Enquire
16	702217	Screw, M5 x 2.5 x 20, Internal Hex Dome Head	702217 Screw, M5 x 2.5 x 20, Internal Hex Dome Head -	-	2	Enquire
17	4G43C47775BA	ADHESIVE FOAM STRIP ROOF EDGE LOWER	4G43C47775BA ADHESIVE FOAM STRIP ROOF EDGE LOWER -	-	2	Enquire
18	CG43280K62AB	Side Strake, Fender, RH	CG43280K62AB Side Strake, Fender, RH -	-	1	Enquire
19	CG43280K63AB	Side Strake, Fender, LH	CG43280K63AB Side Strake, Fender, LH -	-	1	Enquire
20	CG43018K28AC	Side Strake, Door, RH	CG43018K28AC Side Strake, Door, RH -	-	1	Enquire
21	CG43018K29AC	Side Strake, Door, LH	CG43018K29AC Side Strake, Door, LH -	-	1	Enquire
22	CG430937AC	Retainer, Door Side Strake	CG430937AC Retainer, Door Side Strake -	-	2	Enquire
23	AD43E620011AB	M5 HEX OPEN RIVNUT	AD43E620011AB M5 HEX OPEN RIVNUT -	-	6	Enquire
24	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) 10 Per Pack	-	6	Enquire
25	CG43280B83BC	MESH SIDE STRAKE RH	CG43280B83BC MESH SIDE STRAKE RH Up To VIN A16887, Titanium	-	1	Enquire
26	CG43280B84BC	MESH SIDE STRAKE LH	CG43280B84BC MESH SIDE STRAKE LH Up To VIN A16887, Titanium	-	1	Enquire
27	13A5568CP	BAFFLE MOULDING - B-POST - RH	13A5568CP BAFFLE MOULDING - B-POST - RH -	-	8	Enquire
28	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 20 Per Pack	-	2	Enquire
29	AD4316C692AA	Louvre, Hood, RH	AD4316C692AA Louvre, Hood, RH Chrome	-	1	Enquire
30	AD4316C693AA	Louvre, Hood, LH	AD4316C693AA Louvre, Hood, LH Chrome	-	1	Enquire
31	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Black. Order Components	-	1	Enquire
32	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Black. Order Components	-	1	Enquire
33	CG4316C690AB	Vent Surround, Hood, Titanium Silver, RH	CG4316C690AB Vent Surround, Hood, Titanium Silver, RH -	-	1	Enquire
34	CG4316C691AB	Vent Surround, Hood, Titanium Silver, LH	CG4316C691AB Vent Surround, Hood, Titanium Silver, LH -	-	1	Enquire
35	CG4316C692BB	Mesh, Hood, Titanium Silver, RH	CG4316C692BB Mesh, Hood, Titanium Silver, RH -	-	2	Enquire
36	CG4316C693BB	Mesh, Hood, Titanium Silver, LH	CG4316C693BB Mesh, Hood, Titanium Silver, LH -	-	1	Enquire
37	CG4316C694AC	Carrier, Vent, RH	CG4316C694AC Carrier, Vent, RH -	-	1	Enquire
38	CG4316C695AC	Carrier, Vent, LH	CG4316C695AC Carrier, Vent, LH -	-	1	Enquire
39	704771	NUT M4 HEX FLANGE	704771 NUT M4 HEX FLANGE -	-	8	Enquire
40	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE Hood Louvre Fixtures Only	-	8	Enquire
41	700242	SCREW M5 X 16 PAN HEAD BLACK	700242 SCREW M5 X 16 PAN HEAD BLACK -	-	2	Enquire
