Console and Switches - Front Console, Auto, 09MY of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Console and Switches - Front Console, Auto, 09MY

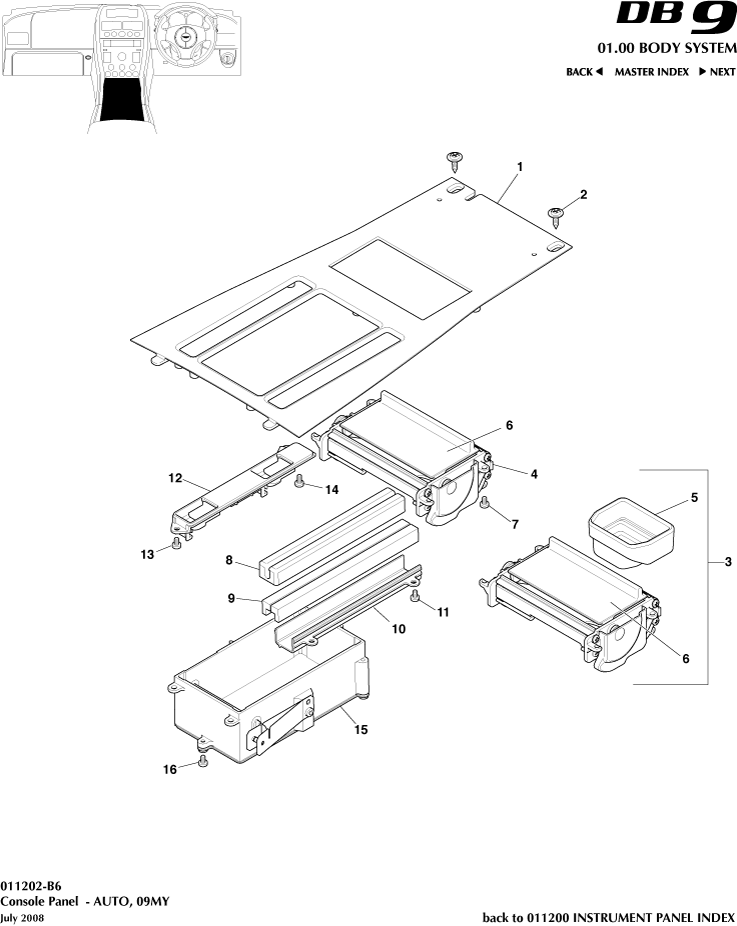

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G33045A66JA	PANEL CONSOLE CENTRE PANEL	6G33045A66JA PANEL CONSOLE CENTRE PANEL cutout for 1 switch	-	1	Enquire
-	6G33045A66CA	PANEL CONSOLE CENTRE PANEL	6G33045A66CA PANEL CONSOLE CENTRE PANEL cutout for 1 switch	-	1	Enquire
-	6G33045A67JA	PANEL CONSOLE CENTRE PANEL	6G33045A67JA PANEL CONSOLE CENTRE PANEL cutout for 1 switch	-	1	Enquire
-	6G33045A67CA	PANEL CONSOLE CENTRE PANEL	6G33045A67CA PANEL CONSOLE CENTRE PANEL cutout for 1 switch	-	1	Enquire
-	6G33045A66HB	PANEL CONSOLE CENTRE PANEL	6G33045A66HB PANEL CONSOLE CENTRE PANEL cutouts for 2 switches	-	1	Enquire
-	6G33045A66BB	PANEL CONSOLE CENTRE PANEL	6G33045A66BB PANEL CONSOLE CENTRE PANEL cutouts for 2 switches	-	1	Enquire
-	6G33045A67HB	PANEL CONSOLE CENTRE PANEL	6G33045A67HB PANEL CONSOLE CENTRE PANEL cutouts for 2 switches	-	1	Enquire
-	6G33045A67BB	PANEL CONSOLE CENTRE PANEL	6G33045A67BB PANEL CONSOLE CENTRE PANEL cutouts for 2 switches	-	1	Enquire
-	6G33045A66GB	PANEL CONSOLE CENTRE PANEL	6G33045A66GB PANEL CONSOLE CENTRE PANEL cutouts for 3 switches	-	1	Enquire
-	6G33045A66AB	PANEL CONSOLE CENTRE PANEL	6G33045A66AB PANEL CONSOLE CENTRE PANEL cutouts for 3 switches	-	1	Enquire
-	6G33045A67GB	PANEL CONSOLE CENTRE PANEL	6G33045A67GB PANEL CONSOLE CENTRE PANEL cutouts for 3 switches	-	1	Enquire
-	6G33045A67AB	PANEL CONSOLE CENTRE PANEL	6G33045A67AB PANEL CONSOLE CENTRE PANEL cutouts for 3 switches	-	1	Enquire
-	4G43045A66AF	CONSOLE CENTRE PANEL	4G43045A66AF CONSOLE CENTRE PANEL cutouts for 4 switches	-	1	Enquire
-	4G43045A66HB	CONSOLE CENTRE PANEL	4G43045A66HB CONSOLE CENTRE PANEL cutouts for 4 switches	-	1	Enquire
-	4G43045A67AB	CONSOLE CENTRE PANEL	4G43045A67AB CONSOLE CENTRE PANEL cutouts for 4 switches	-	1	Enquire
-	4G43045A67HB	CONSOLE CENTRE PANEL	4G43045A67HB CONSOLE CENTRE PANEL cutouts for 4 switches	-	1	Enquire
-	4G438010594	ASHTRAY AUTO - PLAT	4G438010594 ASHTRAY AUTO - PLAT -	-	1	Enquire
-	4G438010596	ASHTRAY AUTO - ANTH	4G438010596 ASHTRAY AUTO - ANTH -	-	1	Enquire
-	4G438010833	ASHTRAY AUTO-GRAPHTE	4G438010833 ASHTRAY AUTO-GRAPHTE -	-	1	Enquire
-	4G438010598	UTILITY TRAY ASSEMBLY - PLATINUM	4G438010598 UTILITY TRAY ASSEMBLY - PLATINUM -	-	1	Enquire
-	4G438010599	UTILITY TRAY ASSEMBLY- ANTHRACITE	4G438010599 UTILITY TRAY ASSEMBLY- ANTHRACITE -	-	1	Enquire
-	4G438010835	UTILITY TRAY ASSY- GRAPHITE	4G438010835 UTILITY TRAY ASSY- GRAPHITE -	-	1	Enquire
-	4G43043K78AC	DR UTY TRY	4G43043K78AC DR UTY TRY -	-	1	Enquire
-	6G33043K78AA	DOOR UTILITY TRAY ANTHRACITE	6G33043K78AA DOOR UTILITY TRAY ANTHRACITE -	-	1	Enquire
-	6G33043K78BA	DOOR UTILITY TRAY GRAPHITE	6G33043K78BA DOOR UTILITY TRAY GRAPHITE -	-	1	Enquire
-	8D33043K78BA	DOOR UTILITY TRAY LGT STN CHROME	8D33043K78BA DOOR UTILITY TRAY LGT STN CHROME -	-	1	Enquire
-	4G438311058	COIN HOLDER ASY DB9	4G438311058 COIN HOLDER ASY DB9 Items 8,9,10 Combined	-	1	Enquire
-	6G33044J84ABW	CONT ASSY CNSL	6G33044J84ABW CONT ASSY CNSL -	-	1	Enquire
1	9G43045A67BA	PNL CNSL PNL CTR	9G43045A67BA PNL CNSL PNL CTR no cutouts for switches	-	1	Enquire
2	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) -	-	2	Enquire
3	4G438010993	ASHTRAY AUTO-I/SILVR	4G438010993 ASHTRAY AUTO-I/SILVR -	-	1	Enquire
4	4G438010961	UTILITY TRAY ASSY- IRIDIUM SILVER	4G438010961 UTILITY TRAY ASSY- IRIDIUM SILVER -	-	1	Enquire
5	6G33048A64AA	BOX CNSL PNL RR ASH- RECEPTICLE	6G33048A64AA BOX CNSL PNL RR ASH- RECEPTICLE -	-	1	Enquire
6	9G43043K78AA	DOOR-UTILITY TRAY	9G43043K78AA DOOR-UTILITY TRAY -	-	1	Enquire
7	703176PK	SCREW-M4x6 CHROME FREE PACK OF 10	703176PK SCREW-M4x6 CHROME FREE PACK OF 10 -	-	4	Enquire
8	673016532	LH BODY SIDE FRAME ASSEMBLY	673016532 LH BODY SIDE FRAME ASSEMBLY -	-	1	Enquire
9	4G438678AA	Foam, Coin Holder	4G438678AA Foam, Coin Holder -	-	2	Enquire
10	4G43045J82AA	Bracket, Coin Holder	4G43045J82AA Bracket, Coin Holder -	-	1	Enquire
11	703176PK	SCREW-M4x6 CHROME FREE PACK OF 10	703176PK SCREW-M4x6 CHROME FREE PACK OF 10 -	-	2	Enquire
12	4G4313D720AA	Switch Bracket, Console Panel	4G4313D720AA Switch Bracket, Console Panel -	-	1	Enquire
13	703176PK	SCREW-M4x6 CHROME FREE PACK OF 10	703176PK SCREW-M4x6 CHROME FREE PACK OF 10 -	-	2	Enquire
14	701445	SCREW 4x8 PAN T/H	701445 SCREW 4x8 PAN T/H -	-	2	Enquire
15	673015527	LH WINDSHIELD PILLAR SIDE ME	673015527 LH WINDSHIELD PILLAR SIDE ME -	-	1	Enquire
16	703176PK	SCREW-M4x6 CHROME FREE PACK OF 10	703176PK SCREW-M4x6 CHROME FREE PACK OF 10 -	-	4	Enquire
