Body Structure - EV Structure, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Body Structure - EV Structure, Coupe

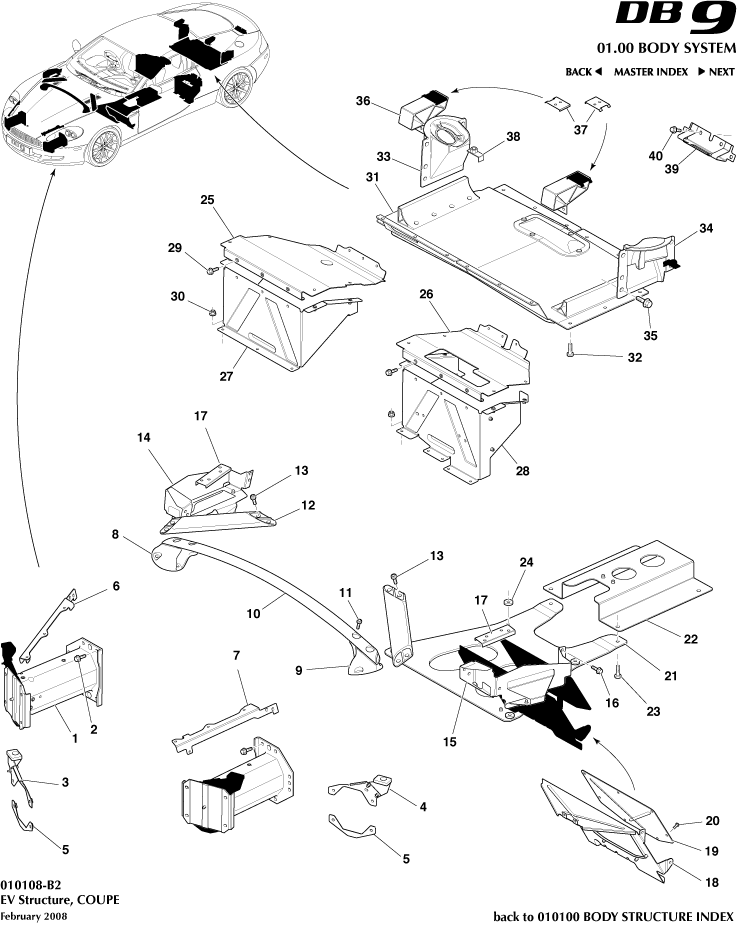

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE 08MY	-	12	Enquire
-	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	703172PK Screw M8 x 25 Pan Head (Pack of 10) Pack of 10	-	2	Enquire
-	4G43043B19AB	TUB PASS AIR BAG INT	4G43043B19AB TUB PASS AIR BAG INT USA	-	1	Enquire
-	4G43F00199AD	REINF BDY FRT CS BAR	4G43F00199AD REINF BDY FRT CS BAR Order in pairs	-	2	Enquire
-	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking -	-	4	Enquire
-	4G435340AJ	BRACKET ECU MOUNTING RH	4G435340AJ BRACKET ECU MOUNTING RH Up to 07MY	-	1	Enquire
-	4G435341AJ	BRACKET ECU MOUNTING LH	4G435341AJ BRACKET ECU MOUNTING LH Up to 07MY	-	1	Enquire
-	4G43111C61AD	PNL DUMMY FLR FRT	4G43111C61AD PNL DUMMY FLR FRT 6.5MY to 12MY. RHD	-	1	Enquire
-	4G43111C61AE	Panel, Dummy Floor Front, RHD	4G43111C61AE Panel, Dummy Floor Front, RHD 12MY onwards. RHD	-	1	Enquire
-	4G43111C60AC	PNL DUMMY FLR FRT	4G43111C60AC PNL DUMMY FLR FRT Up to 06MY. LHD	-	1	Enquire
-	4G43111C60AD	PANEL DUMMY FLOOR FRONT	4G43111C60AD PANEL DUMMY FLOOR FRONT 6.5MY onwrds. LHD	-	1	Enquire
-	4G43111K36AF	TUNNEL REINFORCEMENT FRONT	4G43111K36AF TUNNEL REINFORCEMENT FRONT From 09/2005	-	1	Enquire
-	4G43111K37AE	Tunnel Reinforcement, Centre	4G43111K37AE Tunnel Reinforcement, Centre From 09/2005	-	1	Enquire
-	7G4310N660AC	PANEL BATTERY COVER RH	7G4310N660AC PANEL BATTERY COVER RH From VIN GA07312	-	1	Enquire
-	4G4367518AE	PANEL REAR SEAT HEEL BOARD RH	4G4367518AE PANEL REAR SEAT HEEL BOARD RH From 09/2005	-	1	Enquire
-	4G4311262AC	REINF ASSY FRT FLR PAN FRT	4G4311262AC REINF ASSY FRT FLR PAN FRT -	-	1	Enquire
-	9G4311262BA	Reinforcement Assembly, Floor Pan Front	9G4311262BA Reinforcement Assembly, Floor Pan Front 09MY	-	1	Enquire
1	AD43V17N800AC	BUMPER FRONT CRASH CAN	AD43V17N800AC BUMPER FRONT CRASH CAN Structural Cat. A only	-	2	Enquire
2	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	703172PK Screw M8 x 25 Pan Head (Pack of 10) 07MY. Pack of 10	-	12	Enquire
3	4G4313068AD	PANEL HEADLAMP MOUNTING RH	4G4313068AD PANEL HEADLAMP MOUNTING RH -	-	1	Enquire
4	4G4313069AD	PANEL HEADLAMP MOUNTING LH	4G4313069AD PANEL HEADLAMP MOUNTING LH -	-	1	Enquire
5	4G436367912AC	NUT PLT ASY FRT CRSH	4G436367912AC NUT PLT ASY FRT CRSH -	-	2	Enquire
6	4G43043B19AC	TUBE PASSENGER AIR BAG INITIATPR RH	4G43043B19AC TUBE PASSENGER AIR BAG INITIATPR RH RoW	-	1	Enquire
7	4G43043B20AC	TUBE PASSENGER AIR BAG INITIATOR LH	4G43043B20AC TUBE PASSENGER AIR BAG INITIATOR LH -	-	1	Enquire
8	4G43108A86AE	BRACKET FRONT CROSS BRACE RH	4G43108A86AE BRACKET FRONT CROSS BRACE RH -	-	1	Enquire
9	4G43108A87AE	BRACKET FRONT CROSS BRACE LH	4G43108A87AE BRACKET FRONT CROSS BRACE LH -	-	1	Enquire
10	4G43108A75AA	BRA FRT CS	4G43108A75AA BRA FRT CS -	-	1	Enquire
11	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive -	-	4	Enquire
12	4G43F00198AD	REINF BDY FRT CS BAR	4G43F00198AD REINF BDY FRT CS BAR Order in pairs	-	2	Enquire
13	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive -	-	4	Enquire
14	4G435340AE	BRKT-ECU MTNG RH	4G435340AE BRKT-ECU MTNG RH Up to 07MY	-	1	Enquire
15	4G435341AE	BRKT ECU MTNG LH	4G435341AE BRKT ECU MTNG LH Up to 07MY	-	1	Enquire
16	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	12	Enquire
17	4G4316802AA	NUT PLATE HOOD HINGE MOUNTING BRACKET	4G4316802AA NUT PLATE HOOD HINGE MOUNTING BRACKET -	-	2	Enquire
18	4G43111C61AC	PNL DUMMY FLR FRT	4G43111C61AC PNL DUMMY FLR FRT Up to 06MY. RHD	-	1	Enquire
19	4G43111B48AB	Panel, Dummy Floor Cover, Front	4G43111B48AB Panel, Dummy Floor Cover, Front -	-	1	Enquire
20	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head -	-	8	Enquire
21	4G43111K36AD	TNL REINF FRT	4G43111K36AD TNL REINF FRT Up to 08/2005	-	1	Enquire
22	4G43111K37AD	REINF CTR TNL	4G43111K37AD REINF CTR TNL Up to 08/2005	-	1	Enquire
23	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	703172PK Screw M8 x 25 Pan Head (Pack of 10) Pack of 10	-	8	Enquire
24	4G431660AA	TUNNEL REINFORCEMENT FRONT SPACER	4G431660AA TUNNEL REINFORCEMENT FRONT SPACER -	-	4	Enquire
25	7G4310N660AA	PNL BATT CVR	7G4310N660AA PNL BATT CVR Up to VIN GA07311	-	1	Enquire
26	7G4310N661AA	PANEL BATTERY COVER LH	7G4310N661AA PANEL BATTERY COVER LH 07MY	-	1	Enquire
27	4G4367518AD	PAN RR ST HL BD RH	4G4367518AD PAN RR ST HL BD RH Up to 08/2005	-	1	Enquire
28	4G4367519AE	PAN RR ST HL BD LH	4G4367519AE PAN RR ST HL BD LH 07MY	-	1	Enquire
29	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	22	Enquire
30	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking -	-	12	Enquire
31	4G4338580AK	ASY PNL F/TNK COMP	4G4338580AK ASY PNL F/TNK COMP -	-	1	Enquire
32	700121	SCREW No6x3/4in BLK REC PAN HD S/T	700121 SCREW No6x3/4in BLK REC PAN HD S/T -	-	16	Enquire
33	4G4318A000AB	MBR RR SHK ABS MTNG	4G4318A000AB MBR RR SHK ABS MTNG -	-	1	Enquire
34	4G4318A001AB	MBR RR SHK ABS MTNG	4G4318A001AB MBR RR SHK ABS MTNG -	-	1	Enquire
35	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE -	-	8	Enquire
36	4G43C114B10AB	BRACKET REAR SEAT CHILD SEAT OUTER RH	4G43C114B10AB BRACKET REAR SEAT CHILD SEAT OUTER RH -	-	2	Enquire
37	4G43612C58AA	Plate, Child Seat Attachment	4G43612C58AA Plate, Child Seat Attachment -	-	2	Enquire
38	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14 -	-	2	Enquire
39	4G43433A32AE	Reinforcement Latch Housing, Luggage Compartment Door	4G43433A32AE Reinforcement Latch Housing, Luggage Compartment Door -	-	1	Enquire
40	700121	SCREW No6x3/4in BLK REC PAN HD S/T	700121 SCREW No6x3/4in BLK REC PAN HD S/T -	-	2	Enquire
