Exterior Rear View Mirrors

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Exterior Rear View Mirrors

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

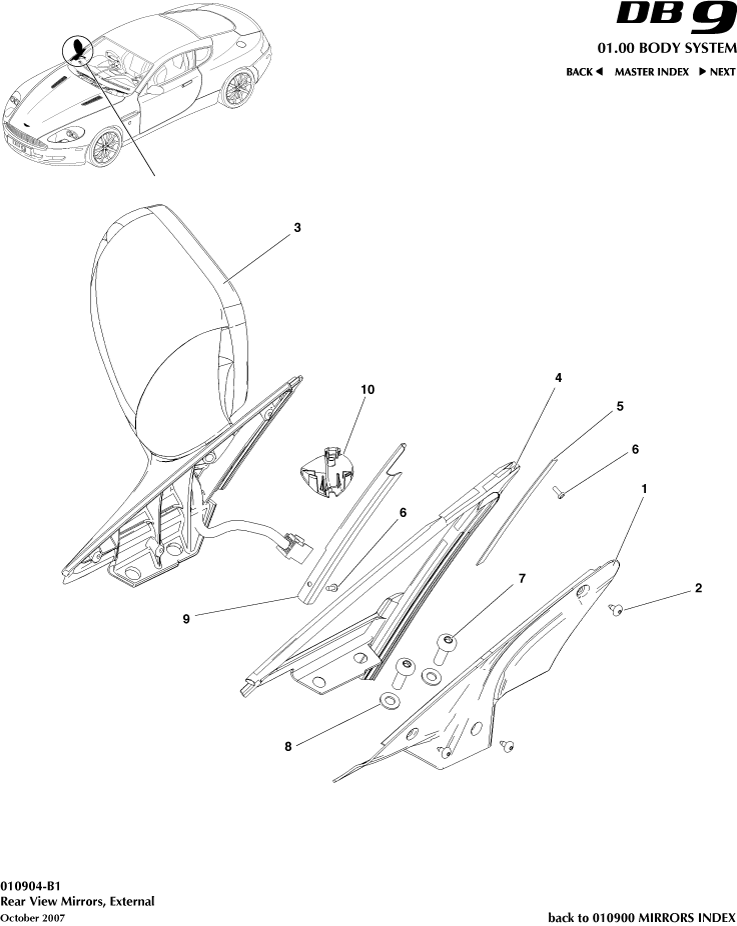

Exterior Rear View Mirrors of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G43830912AAW
COVER INT DR MR RH
From (V) B05152 		- 1 Enquire

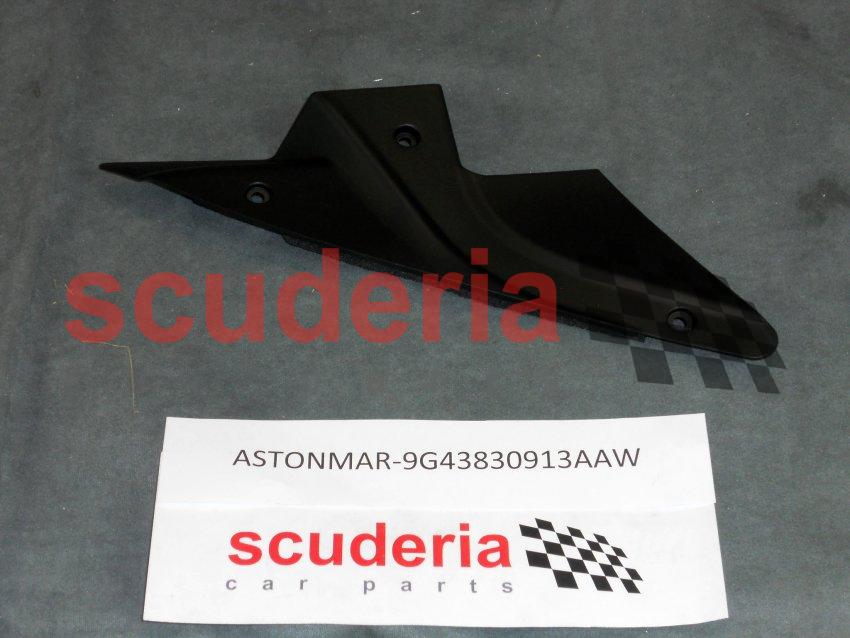

- 9G43830913AAW
COVER INT DR MR LH
- 		- 1 Enquire
- 4G4317683BE
POWERED ASSY MIRRORS REAR VIEW EXTERIOR LH O/S
Refer to Bulletin - I.PSB.2009.71 		- 1 Enquire
- 4G4317682AC
STD DOOR MIRROR RH
Up to (V) B05151. Refer to Bulletin - I.PSB.2009.71 		- 1 Enquire
- 4G4317682AD
MIRROR ASSY RH - MANUAL FOLD
From (V) B05152. Refer to Bulletin - I.PSB.2009.71 		- 1 Enquire
- 4G4317683AD
MIRROR ASSY LH - MANUAL FOLD
Refer to Bulletin - I.PSB.2009.71 		- 1 Enquire
- 3785512
MIRROR GLASS- CONVEX RH
GCC spec 		- 1 Enquire
- 3785513
MIRROR GLASS- CONVEX LH
GCC spec 		- 1 Enquire
- 3785516
MIRROR GLASS-CONVEX USA
Federal 		- 1 Enquire
- 3785514
MIRROR GLASS-FLAT
Federal 		- 1 Enquire
- 3785515
MIRROR GLASS-CONVEX
RoW 		- 2 Enquire
- 3785543
MIRROR CAP-RH
- 		- 1 Enquire
- 3785544
MIRROR CAP-LH
- 		- 1 Enquire
- 4G43F21510BA
WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH
From (V) B05152 		- 1 Enquire
- 4G43F21511AD
WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH
Up to (V) B05151 		- 1 Enquire
- 4G43F21511BA
WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL LH
From (V) B05152 		- 1 Enquire
- 4G43F21512BD
GLASS RUN CHANNEL GUIDE RH
From (V) A05513 		- 1 Enquire
- 4G43F21513BB
GLS RUN CHL GD LH
Up to (V) A05512 		- 1 Enquire
- 4G43F21513BD
GLASS RUN CHANNEL GUIDE LH
From (V) A05513 		- 1 Enquire
- 4G433710904
MOTOR-DOOR MIRROR MEMORY
- 		- 2 Enquire
1 4G43830912AEW
COVER INT DR MR RH
Up to (V) B05151 		- 1 Enquire
2 6G33104101BA
M4 THRD FORM SCREW
07MY 		- 6 Enquire
3 4G4317682BE
POWERED ASSY MIRROR REAR VIEW EXTERIOR RH O/S
Refer to Bulletin - I.PSB.2009.71 		- 1 Enquire
4 4G43F21510AD
WEATHERSTRIP - FRONT DOOR GLASS RUN CHNL RH
Up to (V) B05151 		- 1 Enquire
5 4G43C47775AA
Adhesive Foam Strip
- 		- 2 Enquire
6 700611
POP RIVET ALY 3.2
- 		- 4 Enquire
7 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
Pack of 10 		- 4 Enquire
8 703131
WASHER PLAIN FORM A M8 CHROME FREE
- 		- 4 Enquire
9 4G43F21512BB
GLS RUN CHL GD RH
Up to (V) A05512 		- 1 Enquire
10 3786361
DOOR MIRROR MOTOR- NON MEMORY
- 		- 2 Enquire
