Bumpers and Number Plates - Front Bumper of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Bumpers and Number Plates - Front Bumper

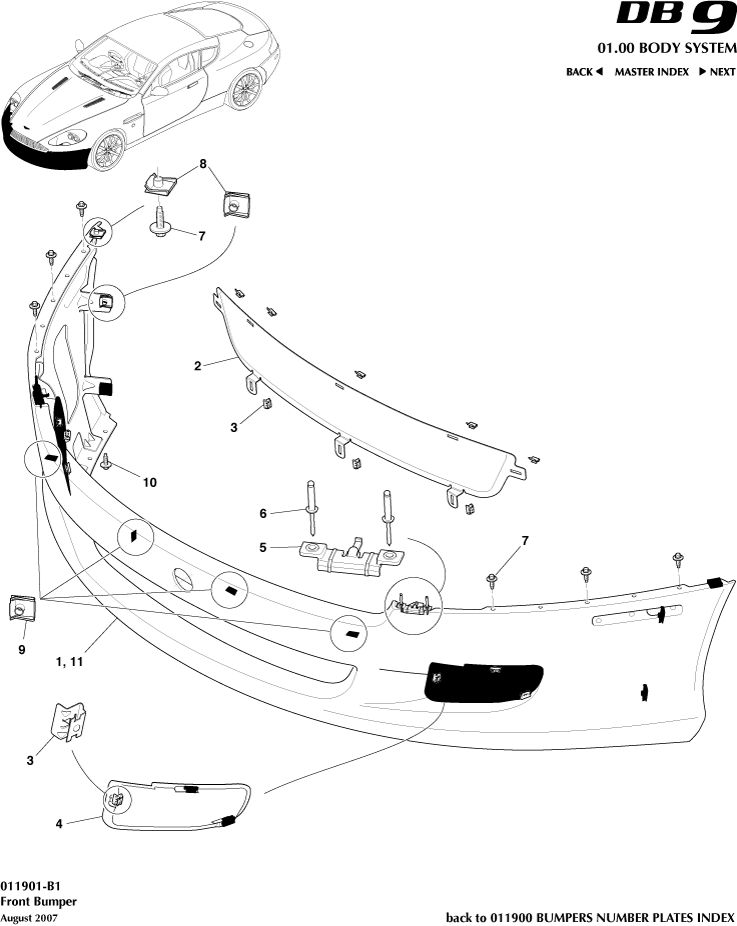

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4317D957AM	COVER ASSY - FRONT BUMPER - WORLD	4G4317D957AM COVER ASSY - FRONT BUMPER - WORLD -	-	1	Enquire
-	6G4317D957AD	COVER ASSY - FRONT BUMPER - WORLD	6G4317D957AD COVER ASSY - FRONT BUMPER - WORLD -	-	1	Enquire
-	4G4317D957BM	COVER ASSY - FRONT BUMPER - FED	4G4317D957BM COVER ASSY - FRONT BUMPER - FED -	-	1	Enquire
-	6G4317D957BD	COVER ASSY - FRONT BUMPER - FED	6G4317D957BD COVER ASSY - FRONT BUMPER - FED -	-	1	Enquire
-	AG4317D957AE	CVR ASSY FRT BMPR RO	AG4317D957AE CVR ASSY FRT BMPR RO 11MY	-	1	Enquire
-	AG4317D957CE	CVR ASY FRT BMPR	AG4317D957CE CVR ASY FRT BMPR 11MY	-	1	Enquire
-	670051762	PLUG	670051762 PLUG 11MY	-	1	Enquire
-	AG4317D957DE	CVR ASY FRT BMPR	AG4317D957DE CVR ASY FRT BMPR 11MY	-	1	Enquire
-	AG438156AE	MESH LWR FRT GRILL	AG438156AE MESH LWR FRT GRILL 11MY	-	1	Enquire
-	AG438156BB	MESH LWR FRT GRILL	AG438156BB MESH LWR FRT GRILL 11MY option	-	1	Enquire
-	4G438191AAPK	Clip Bumper Grille (Pack Of 10)	4G438191AAPK Clip Bumper Grille (Pack Of 10) -	-	4	Enquire

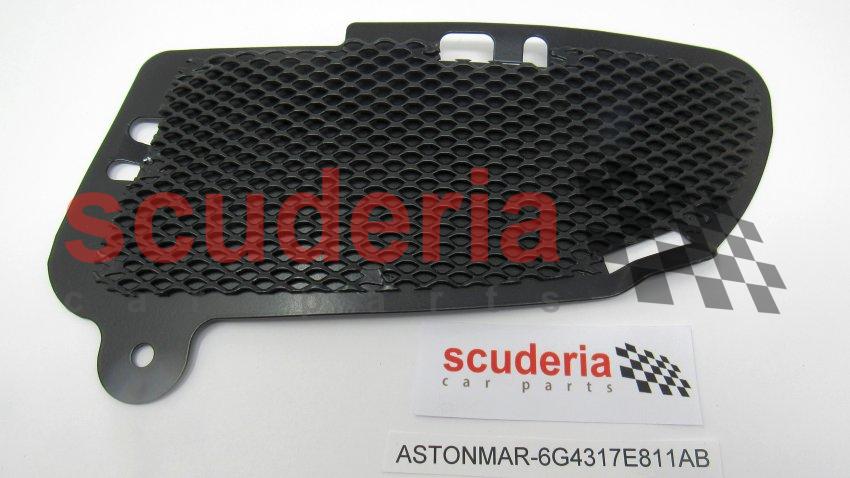

-	6G4317E811AB	Cover Front Bumper Opening LH	6G4317E811AB Cover Front Bumper Opening LH 07MY From (V) TBA	-	1	Enquire
-	AG4317E811AC	COVER FRT BMPR OPG	AG4317E811AC COVER FRT BMPR OPG 11MY	-	1	Enquire
-	AG4317E811BC	COVER FRONT BUMPER OPENING LH	AG4317E811BC COVER FRONT BUMPER OPENING LH 11MY	-	1	Enquire

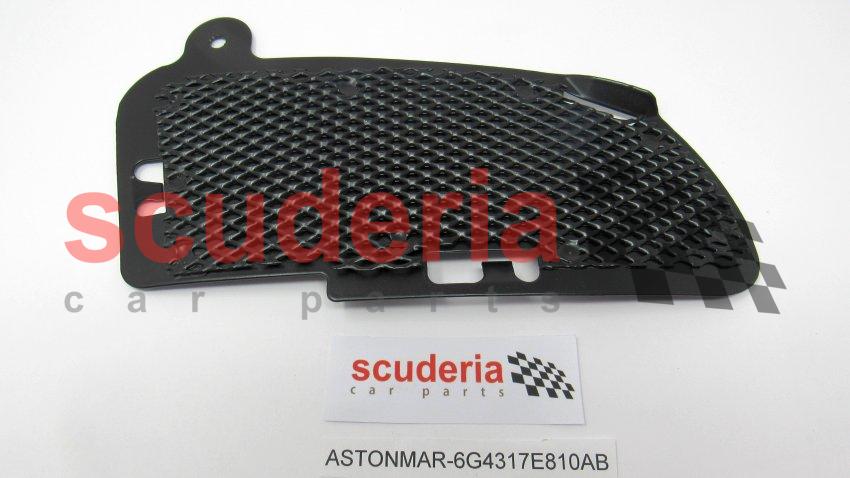

-	6G4317E810AB	Cover Front Bumper Opening RH	6G4317E810AB Cover Front Bumper Opening RH -	-	1	Enquire
-	6G4317E810AB	Cover Front Bumper Opening RH	6G4317E810AB Cover Front Bumper Opening RH 07MY From (V) TBA	-	1	Enquire
-	AG4317E810AC	COVER FRONT BUMPER OPENING RH	AG4317E810AC COVER FRONT BUMPER OPENING RH 11MY	-	1	Enquire
-	AG4317E810BC	COVER FRT BMPR OPG	AG4317E810BC COVER FRT BMPR OPG 11MY	-	1	Enquire
-	AG4310628AB	FRT BMPR LWR TPE	AG4310628AB FRT BMPR LWR TPE 11MY	-	1	Enquire
-	697452	Washer, M8 x 24 x 1.8, Black	697452 Washer, M8 x 24 x 1.8, Black -	-	4	Enquire
-	AG4317626AC	FRT LWR SPOILER	AG4317626AC FRT LWR SPOILER 11MY	-	1	Enquire
-	4G4317C832CB	Cover Front Bumper Cap Assy Rear	4G4317C832CB Cover Front Bumper Cap Assy Rear -	-	1	Enquire

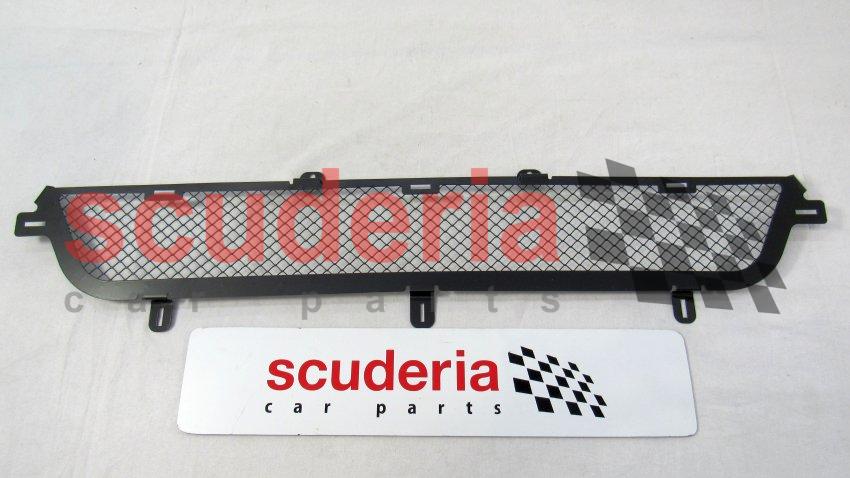

2	9G438156AA	Mesh Lower Front Grille	9G438156AA Mesh Lower Front Grille -	-	1	Enquire
3	4G4317F773ABPK	Retainer Grille to Front Bumper (Pack of 10)	4G4317F773ABPK Retainer Grille to Front Bumper (Pack of 10) -	-	14	Enquire
4	4G4317E811AB	COVER FRT BMPR OPG	4G4317E811AB COVER FRT BMPR OPG -	-	1	Enquire
5	4G43023A50ACPK	EXTERIOR FENDER CLIP PACK OF 5	4G43023A50ACPK EXTERIOR FENDER CLIP PACK OF 5 -	-	2	Enquire
6	701580PK	Rivet Dome Head (Pack of 20)	701580PK Rivet Dome Head (Pack of 20) -	-	4	Enquire
7	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) -	-	8	Enquire
8	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) - ARRIVING SOON	-	4	Enquire
9	4G438191AAPK	Clip Bumper Grille (Pack Of 10)	4G438191AAPK Clip Bumper Grille (Pack Of 10) -	-	4	Enquire
10	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) -	-	14	Enquire
11	4G4310628AA	FRT BMPR LWR TAPE	4G4310628AA FRT BMPR LWR TAPE see 010805-B1	-	1	Enquire
