Interior Trim & Ornamentation - Main Floor Trim, LHD, Alpine of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Interior Trim & Ornamentation - Main Floor Trim, LHD, Alpine

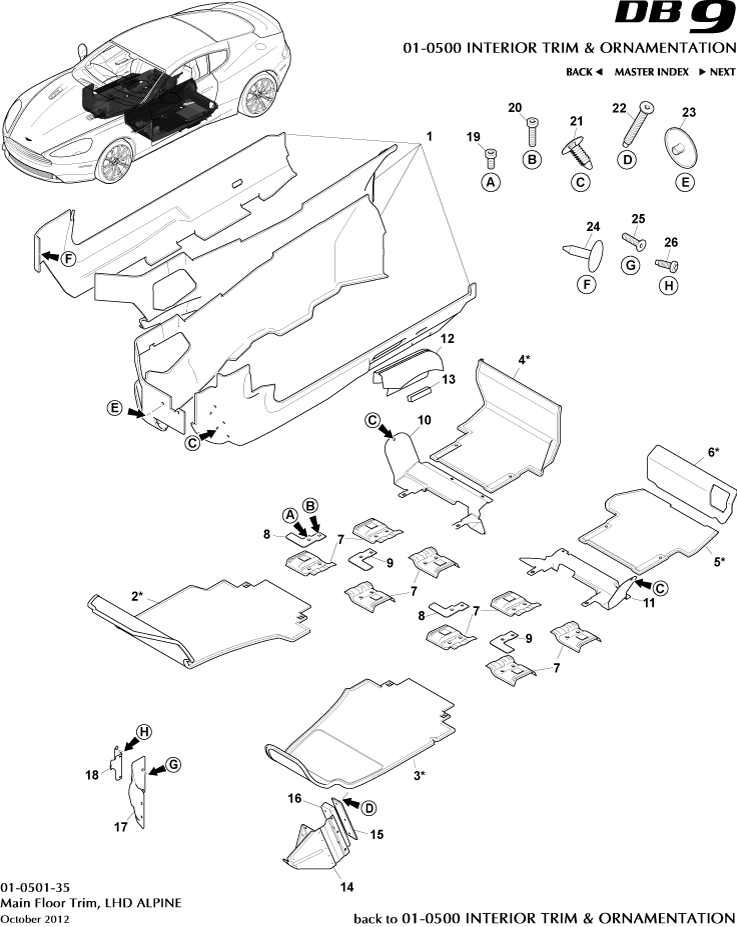

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
*	DD438310116	KIT ASY-FLR CRPT LHD	DD438310116 KIT ASY-FLR CRPT LHD Includes Items 2to 6	-	1	Enquire
-	CD3312020CA	Cover Plate, Foot Rest	CD3312020CA Cover Plate, Foot Rest Black	-	1	Enquire
-	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided -	-	-	Enquire
1	DD43281B11ABW	KIT ASSY SD CRPT LHD	DD43281B11ABW KIT ASSY SD CRPT LHD -	-	1	Enquire
2*	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
3*	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
4*	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
5*	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
6*	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
7	6G33M1H403AA	Cover, Floor Pan	6G33M1H403AA Cover, Floor Pan -	-	8	Enquire
8	6G33666A40AB	Finisher, Carpet, Common, RHS	6G33666A40AB Finisher, Carpet, Common, RHS -	-	4	Enquire
9	6G33666A41AB	Finisher, Carpet, Common, LHS	6G33666A41AB Finisher, Carpet, Common, LHS -	-	4	Enquire
10	4G43100A90AA	Support Panel, Rear Floor, RH	4G43100A90AA Support Panel, Rear Floor, RH -	-	1	Enquire
11	8G43100A91AC	Support Panel, Rear Floor, LH	8G43100A91AC Support Panel, Rear Floor, LH -	-	1	Enquire
12	4G43831237ABW	HANDBRAKE GAITER ASSY LHD	4G43831237ABW HANDBRAKE GAITER ASSY LHD -	-	1	Enquire
13	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter -	-	1	Enquire
14	4G433N328BE	Bracket, Foot Rest	4G433N328BE Bracket, Foot Rest -	-	1	Enquire
15	9G4312020BA	LHD FOOTREST TOP PAD ASSY	9G4312020BA LHD FOOTREST TOP PAD ASSY Silver	-	1	Enquire
16	00RA130	SCREW - NR8X13 - FLANGE	00RA130 SCREW - NR8X13 - FLANGE -	-	1	Enquire
17	4G4318449BD	ACCELERATOR SCUFF PLATE LHD	4G4318449BD ACCELERATOR SCUFF PLATE LHD -	-	1	Enquire
18	4G432B099AD	Mounting Bracket, Accelerator Scuff Plate, LH	4G432B099AD Mounting Bracket, Accelerator Scuff Plate, LH -	-	1	Enquire
19	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head -	-	4	Enquire
20	6G3368D11BA	Screw, M5 x 20, Cap Head	6G3368D11BA Screw, M5 x 20, Cap Head -	-	4	Enquire
22	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK -	-	3	Enquire
23	697564	Retainer, Push On	697564 Retainer, Push On -	-	3	Enquire
24	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) 20 per pack	-	1	Enquire
25	4G433L657AA	Screw, M5 x 20, Countersunk, Black	4G433L657AA Screw, M5 x 20, Countersunk, Black -	-	4	Enquire
26	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head -	-	3	Enquire
