Aston Martin GT DB9 (2004-2017) - Console and Switches - Centre Console, Manual, 08MY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

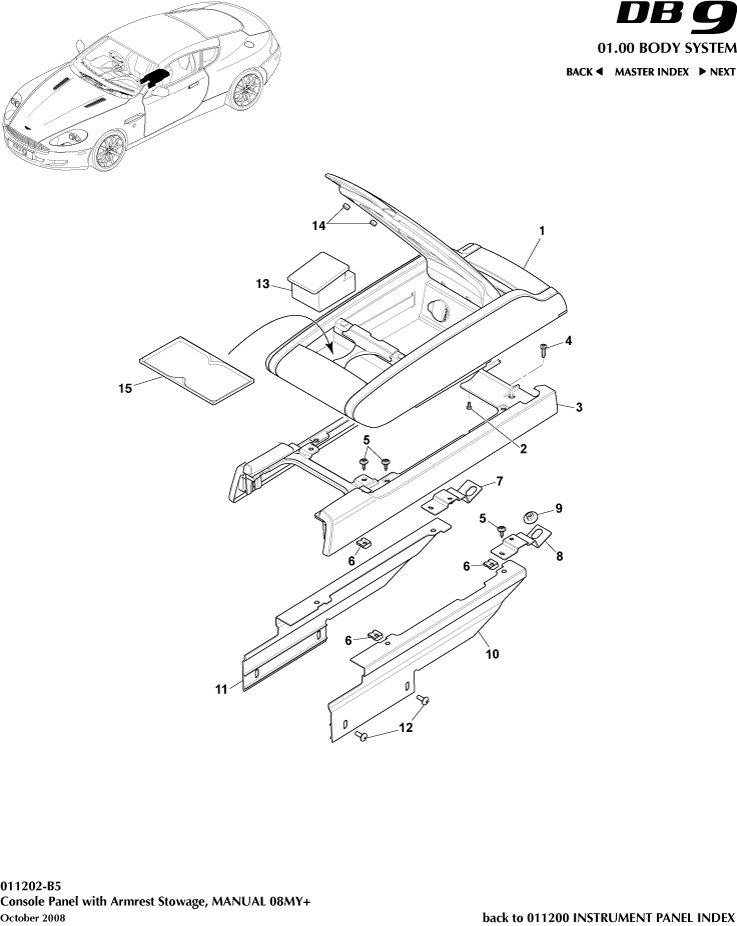

Console and Switches - Centre Console, Manual, 08MY of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G43045C76ABW
FRONT CONSOLE WITH STOWAGE
09MY 		- 1 Enquire
1 8G43045C76AAW
PAD ASSY CONSOLE ARMREST STWG
- 		- 1 Enquire
2 703178
M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE
-
IN STOCK 		- 4 Enquire
3 8G4367446AAW
PNL ASSY RR CNSL
- 		- 1 Enquire
4 701556
SCREW M5x16 PAN HD
- 		- 2 Enquire
5 701157
SCREW&WSHR 4.2x16
- 		- 6 Enquire
6 701448
Spring Nut, U Type, 4.2 x 2.1
-
IN STOCK 		- 6 Enquire
7 8G4313522AA
Bracket, Stowage Compartment Mounting, RH
- 		- 1 Enquire
8 8G4313523AA
Bracket, Stowage Compartment Mounting, LH
- 		- 1 Enquire
9 701194
NUT&WASHER M6 HEXFLG
- 		- 2 Enquire
10 4G43043B05AB
Reinforcement Assy, Console Panel, LH
- 		- 1 Enquire
11 4G43043B04AB
Reinforcement Assy, Console Panel, RH
- 		- 1 Enquire
12 703149
SCREW M6x16 PAN FLG TORX CHROME FRE
-
IN STOCK 		- 4 Enquire
13 9G43044J16AAW
Support, elbow
09MY 		- 1 Enquire
14 8G4323697AA
Magnet and Bumpstop Set
-
IN STOCK 		- 1 Enquire
14 8G43040K60AA
MAT - PHONE SHELF
-
IN STOCK 		- 1 Enquire
