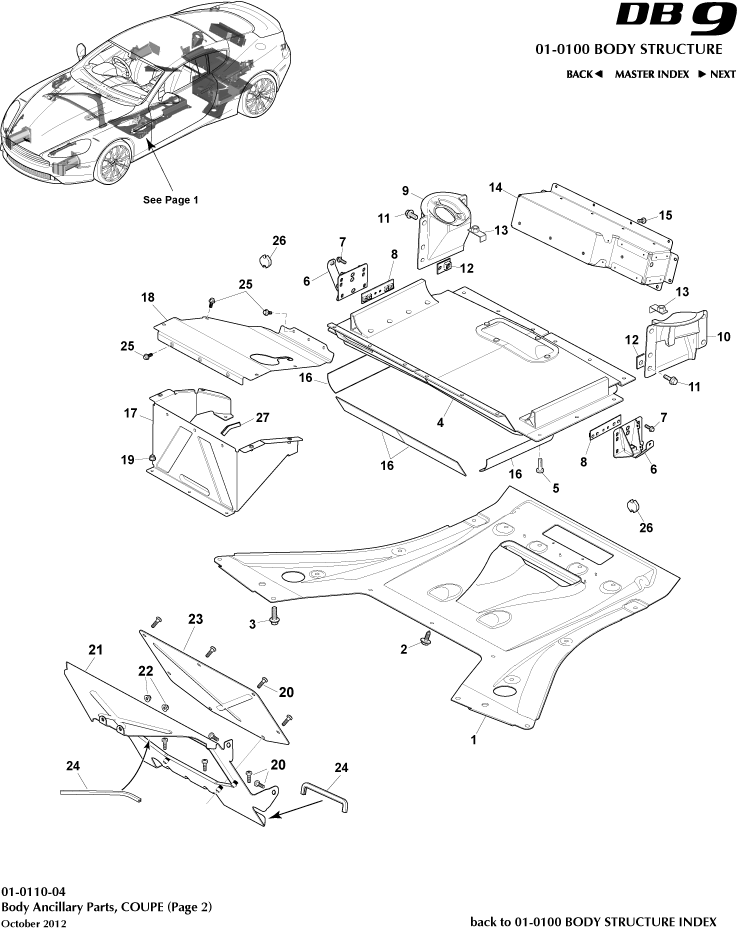

Aston Martin GT DB9 (2004-2017) - Body Structure - Anciliary Parts, Coupe, page 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	ED3367518AA	Panel, Rear Seat Heel Board, RH	ED3367518AA Panel, Rear Seat Heel Board, RH 14.5MY	-	1	Enquire
-	ED3310N660AA	Panel, Battery Cover	ED3310N660AA Panel, Battery Cover 14.5MY	-	1	Enquire
-	9G43111C60GF	Panel, Dummy Floor Front, LHD	9G43111C60GF Panel, Dummy Floor Front, LHD -	-	1	Enquire
-	AD43F16347BB	SPACER LATCH STRIKER	AD43F16347BB SPACER LATCH STRIKER 10.5mm	-	A/R	Enquire
-	AD43F16348BB	SPACER LATCH STRIKER	AD43F16348BB SPACER LATCH STRIKER 9.5mm	-	A/R	Enquire
-	AD43F16349BB	SPACER LATCH STRIKER	AD43F16349BB SPACER LATCH STRIKER 8.5mm	-	A/R	Enquire
-	AD43F16350BB	Spacer	AD43F16350BB Spacer 7.5mm	-	A/R	Enquire
-	AD43F16351BB	Spacer, Latch Striker	AD43F16351BB Spacer, Latch Striker 6.5mm	-	A/R	Enquire
-	DG43F16352BB	Spacer, Latch Striker	DG43F16352BB Spacer, Latch Striker 5.5mm	-	A/R	Enquire
-	DG43F16353BB	Spacer, Latch Striker	DG43F16353BB Spacer, Latch Striker 4.5mm	-	A/R	Enquire
1	AD33L17C857BB	SHIELD-RR BMPR OPG	AD33L17C857BB SHIELD-RR BMPR OPG -	-	1	Enquire
2	7G33108256AA	Screw, M8 x 21mm, Hex Flange Head	7G33108256AA Screw, M8 x 21mm, Hex Flange Head -	-	17	Enquire
3	702210	BOLT-M10x30 HF ADH10	702210 BOLT-M10x30 HF ADH10 -	-	2	Enquire
4	22AA129GP	SERVICE HATCH FOAM SEAL RR	22AA129GP SERVICE HATCH FOAM SEAL RR -	-	1	Enquire
5	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	18	Enquire
6	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	6G335D022AD BRACKET REAR SUB FRAME STABILISER -	-	2	Enquire
7	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder -	-	8	Enquire
8	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	6G335N394AB Nutplate Bracket, Rear Subframe Stabiliser, Upper -	-	2	Enquire
9	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	6G3318A000AD Member, Rear Shock Absorber Mounting, RH -	-	1	Enquire
10	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	6G3318A001AD Member, Rear Shock Absorber Mounting, LH -	-	1	Enquire
11	W500443S442	Screw, M12 x 35, Hex Flange Head	W500443S442 Screw, M12 x 35, Hex Flange Head -	-	8	Enquire
12	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front -	-	2	Enquire
13	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14 -	-	2	Enquire
14	RY5319G487AM	TCU ROW	RY5319G487AM TCU ROW -	-	1	Enquire
15	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head -	-	12	Enquire
16	4G439N070AB	INSULATION - FUEL TANK SUPPORT	4G439N070AB INSULATION - FUEL TANK SUPPORT -	-	4	Enquire
17	CD3367518AB	Panel, Rear Seat Heel Board, RH	CD3367518AB Panel, Rear Seat Heel Board, RH -	-	1	Enquire
18	CD3310N660AB	Panel, Battery Cover	CD3310N660AB Panel, Battery Cover -	-	1	Enquire
19	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking -	-	3	Enquire
20	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD -	-	12	Enquire
22	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE -	-	2	Enquire
23	4G43111B48AB	Panel, Dummy Floor Cover, Front	4G43111B48AB Panel, Dummy Floor Cover, Front -	-	1	Enquire
24	61315A9D334	Switch, trailer coupling	61315A9D334 Switch, trailer coupling 170mm Top, 180mm Bottom	-	A/R	Enquire
25	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	12	Enquire
26	AD43F16346BB	SPACER LATCH STRIKER	AD43F16346BB SPACER LATCH STRIKER 11.5mm	-	A/R	Enquire
27	4G4318K261AB	STP-DCT PROT	4G4318K261AB STP-DCT PROT -	-	1	Enquire
