Aston Martin GT DB9 (2004-2017) - Instrument and Console Panels - Centre Stack Trim Panel

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

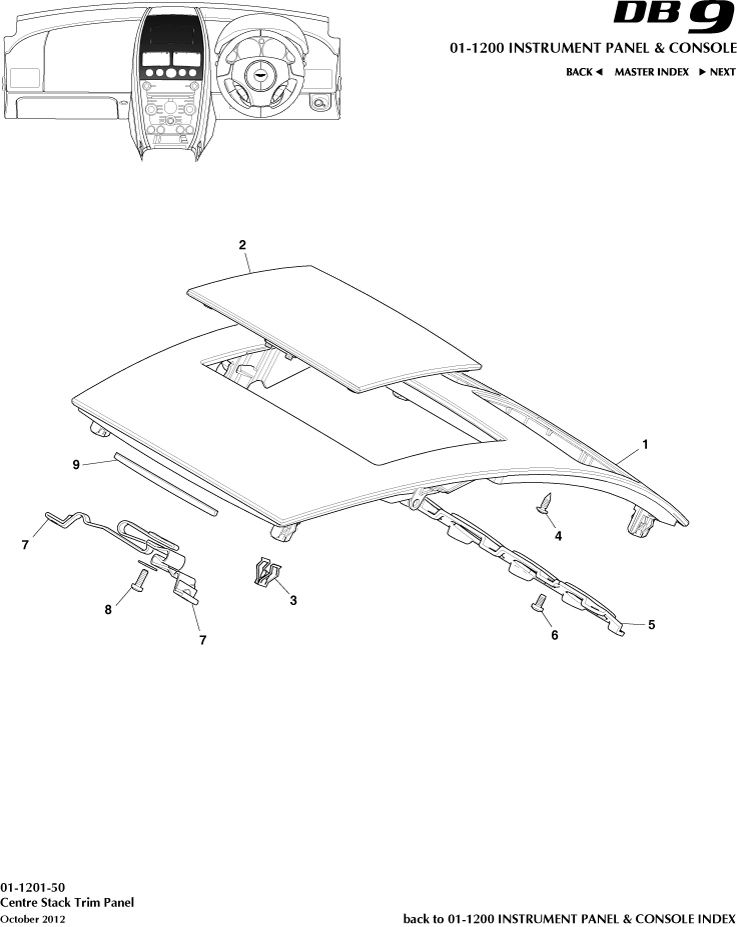

Instrument and Console Panels - Centre Stack Trim Panel of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG43045J10AE
NAV SURROUND -WALNUT
Sat Nav 		- 1 Enquire
- CG43045J10BE
NAV SURROUND - MAH
Sat Nav 		- 1 Enquire
- CG43045J10CE
NAV SURROUND - BAMBO
Sat Nav 		- 1 Enquire
- CG43045J10NE
SAT NAV TRIM SURROUND BLACK
Sat Nav 		- 1 Enquire
- CG43045J10SE
NAV SURROUND - ASH
Sat Nav 		- 1 Enquire
- BD33045J10DC
VNR NAV AUTO/BLK CF
Sat Nav 		- 1 Enquire
- 83305B74573
Thrust adapter
No Sat Nav 		- 1 Enquire
- CG43045J10HE
BZL ASSY I/PNL CTRL
No Sat Nav 		- 1 Enquire
- CG43045J10JE
BZL ASY I/PNL CTRL
No Sat Nav 		- 1 Enquire
- CG43045J10KE
BZL ASY I/PNL CONTR
No Sat Nav 		- 1 Enquire
- CG43045J10RE
BZL ASY I/PNL CONTR
No Sat Nav 		- 1 Enquire
- CG43045J10VE
BZL ASY I/PNL CONTR
No Sat Nav 		- 1 Enquire
- BD33045J10FC
BZL ASY I/PNL CONTR
No Sat Nav 		- 1 Enquire
1 RY63C043C92RB
IP UPR BRW DRVR CRBN
Sat Nav 		- 1 Enquire
2 NSS
 Seat Belt Loops Frt/ Rear and Left/Right
- 		- 1 Enquire
4 701447
Screw, M4 x 12, Pan Head, Torx Screw
- 		- 6 Enquire
5 8D3314A462AJ
RETAINER CONTROL SWITCH - VENEER
- 		- 1 Enquire
6 703178
M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE
- 		- 12 Enquire
7 CG43204A34AB
Clip, Console Tether Strap
- 		- 2 Enquire
8 00RA374
SCREW - TORX - 3.5X12
- 		- 1 Enquire
9 CG43F46970AA
Foam Strip, 90mm x 5mm x 3mm
- 		- 1 Enquire
