Interior Trim & Ornamentation - Load Compartment Trim, Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Interior Trim & Ornamentation - Load Compartment Trim, Volante

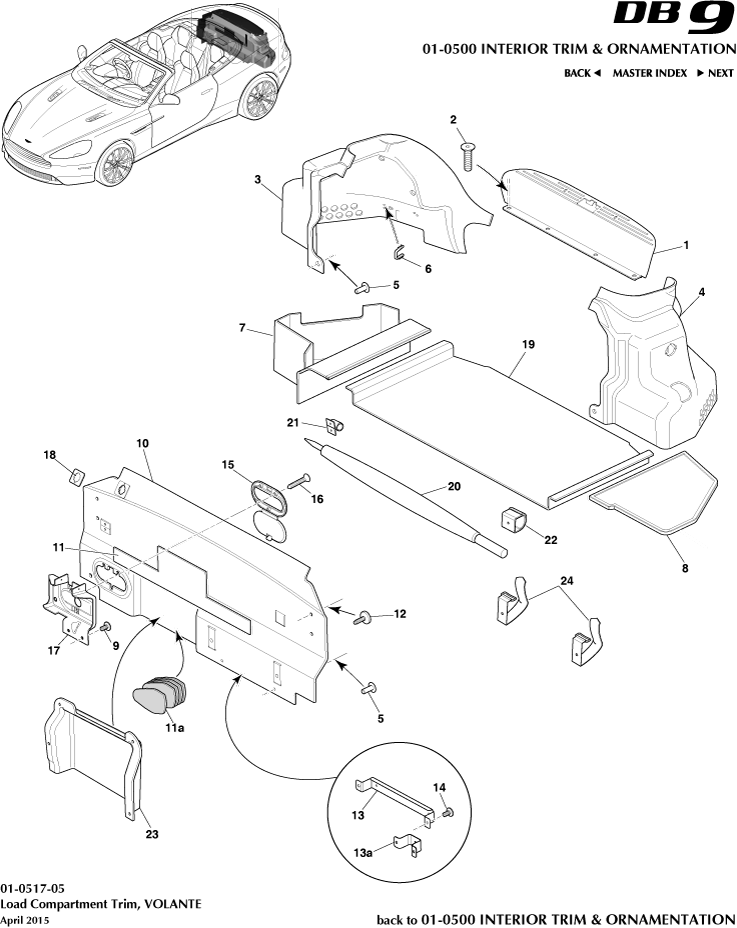

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G43L45445BCW	Back Board, Loadspace	9G43L45445BCW Back Board, Loadspace Up To 16MY, Federal	-	1	Enquire
-	9G43L45445ACW	LOADSPACE BACKBOARD ASSY - CONV	9G43L45445ACW LOADSPACE BACKBOARD ASSY - CONV From 16MY, Alpine, RoW	-	1	Enquire
-	9G43L45445BCW	Back Board, Loadspace	9G43L45445BCW Back Board, Loadspace From 16MY, Alpine, Federal	-	1	Enquire
-	RY63045J14NB	IP CRBN BLK FIN DRVR	RY63045J14NB IP CRBN BLK FIN DRVR From 16MY, B&O	-	1	Enquire
-	9G43130C62AA	Bracket, Luggage compartment, front	9G43130C62AA Bracket, Luggage compartment, front Alpine - Late	-	1	Enquire
-	RY63045B57BA	IP CLST OTR HSNG LHS	RY63045B57BA IP CLST OTR HSNG LHS From 16MY	-	1	Enquire
-	4G43P2100014BAA	RIVET R-LOK 6.3 X 4-10	4G43P2100014BAA RIVET R-LOK 6.3 X 4-10 -	-	5	Enquire
1	4G43L42626AB	REAR LOADSPACE SCUFF PLATE - CONV	4G43L42626AB REAR LOADSPACE SCUFF PLATE - CONV -	-	1	Enquire
2	4G433L657AA	Screw, M5 x 20, Countersunk, Black	4G433L657AA Screw, M5 x 20, Countersunk, Black -	-	4	Enquire
3	4G43L45422AE	Carpet assy, luggage compartment side, RH	4G43L45422AE Carpet assy, luggage compartment side, RH -	-	1	Enquire
4	4G43L45423AB	LHS LOADSPACE MOULDED CARPET CONV	4G43L45423AB LHS LOADSPACE MOULDED CARPET CONV -	-	1	Enquire
5	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) 20 Per Pack	-	2	Enquire
6	4G43N623361AA	Clip, U Type, Emergency Handle	4G43N623361AA Clip, U Type, Emergency Handle Emergency Handle Clip	-	1	Enquire
7	4G43L454K65AA	Carpet, Loadspace Floor, RH	4G43L454K65AA Carpet, Loadspace Floor, RH -	-	1	Enquire
8	4G43L454K64AB	LHS FLOOR CARPET ASSEMBLY - CONV	4G43L454K64AB LHS FLOOR CARPET ASSEMBLY - CONV -	-	1	Enquire
9	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8 -	-	2	Enquire
10	9G43L45445ACW	LOADSPACE BACKBOARD ASSY - CONV	9G43L45445ACW LOADSPACE BACKBOARD ASSY - CONV Up To 16MY, RoW	-	1	Enquire
11	4G43L45436AA	FOAM FOR BACKBOARD	4G43L45436AA FOAM FOR BACKBOARD Alpine - Early	-	1	Enquire
11a	6G3318808EB	Gasket, Door Speaker	6G3318808EB Gasket, Door Speaker Alpine - Late	-	5	Enquire
13	9G43130C62AA	Bracket, Luggage compartment, front	9G43130C62AA Bracket, Luggage compartment, front B&O	-	1	Enquire
13a	4G43L454A21AA	Bracket, Boot Front Boad Support	4G43L454A21AA Bracket, Boot Front Boad Support Alpine - Early	-	1	Enquire
14	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE -	-	2	Enquire
15	4G4313A752AC	LOAD COMPARTMENT SWITCH PLATE - LID	4G4313A752AC LOAD COMPARTMENT SWITCH PLATE - LID -	-	1	Enquire
16	703726	Screw, No 8 x 25, Countersunk	703726 Screw, No 8 x 25, Countersunk -	-	3	Enquire
17	4G43L43660AE	LOADSPACE POWER / BATTERY SWITCH PLATE	4G43L43660AE LOADSPACE POWER / BATTERY SWITCH PLATE Up To 16MY	-	1	Enquire
18	4G43L40170AA	Grommet, Reinforcement	4G43L40170AA Grommet, Reinforcement -	-	1	Enquire
19	4G4345456CC	LOADSPACE CARPET CTR - COUPE	4G4345456CC LOADSPACE CARPET CTR - COUPE -	-	1	Enquire
20	7G43700712BB	AML BLK STD UMBRELLA	7G43700712BB AML BLK STD UMBRELLA -	-	1	Enquire
21	4G4331426AA	RETENTION STRAP ASSY UMBRELLA POINT	4G4331426AA RETENTION STRAP ASSY UMBRELLA POINT -	-	1	Enquire
22	4G4331427AA	RETAINING STRAP ASSY UNBRELLA HANDLE	4G4331427AA RETAINING STRAP ASSY UNBRELLA HANDLE -	-	1	Enquire
23	708699	L/SMPL-ELEC.YELLW-SA	708699 L/SMPL-ELEC.YELLW-SA From 16MY, B&O	-	1	Enquire
