Body Insulation, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

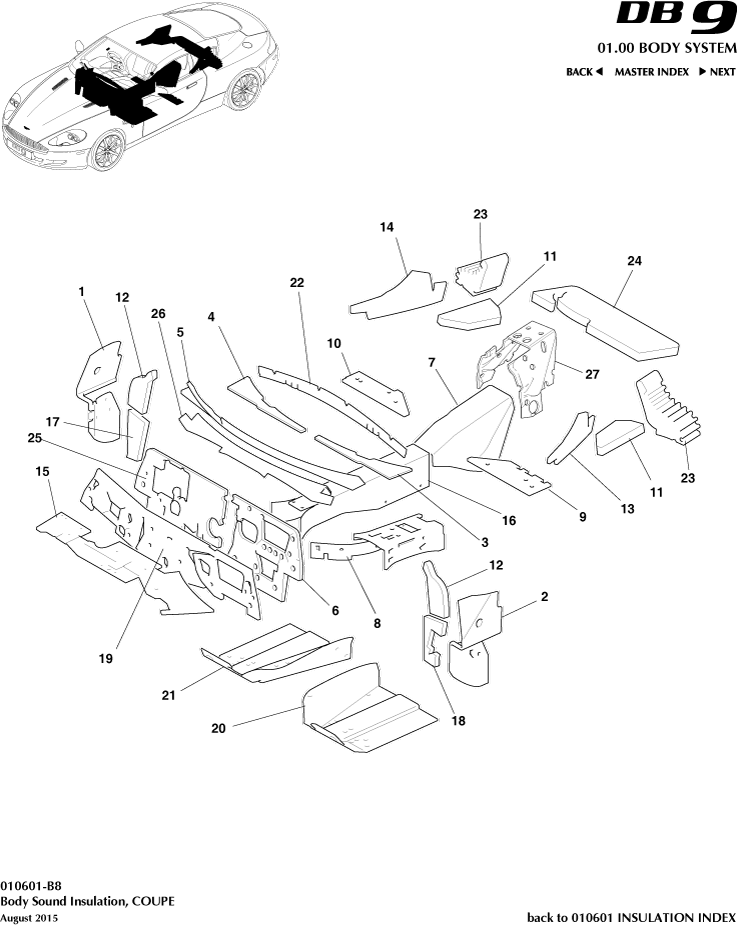

Aston Martin GT DB9 (2004-2017) - Body Insulation, Coupe

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8G43310A58AB	Insulation, Body Side Front, RH	8G43310A58AB Insulation, Body Side Front, RH 08MY	-	1	Enquire
-	8G43310A57AC	Insulation, Body Side Front, LH	8G43310A57AC Insulation, Body Side Front, LH 08MY	-	1	Enquire
-	4G43B1070AB	UNDER PLENUM NVH STRIP	4G43B1070AB UNDER PLENUM NVH STRIP 06MY on	-	1	Enquire
-	8G43015A22AB	BAFFLE BODY FRONT PANEL RHD LH	8G43015A22AB BAFFLE BODY FRONT PANEL RHD LH 08MY	-	1	Enquire
-	8G43015A23AA	BAFFLE BODY FRONT PANEL LHD LH	8G43015A23AA BAFFLE BODY FRONT PANEL LHD LH 07MY on	-	1	Enquire
-	8G4311446AA	INS FLR PAN GR SH LV	8G4311446AA INS FLR PAN GR SH LV -	-	1	Enquire
-	8G4311446AB	Insulation, Sound, Floor Pan Gear Shift Cover	8G4311446AB Insulation, Sound, Floor Pan Gear Shift Cover 08MY on	-	1	Enquire
-	8G4311205AA	Insulation, Sound, Rear Floor Pan, LH	8G4311205AA Insulation, Sound, Rear Floor Pan, LH 08MY	-	1	Enquire
-	4G4300152AF	INS BDY TO FR LHD	4G4300152AF INS BDY TO FR LHD -	-	1	Enquire
-	4G43114B26AG	INS TNL	4G43114B26AG INS TNL 08MY on	-	1	Enquire
-	6G33102B00BB	INS ENG HSG SND RHD	6G33102B00BB INS ENG HSG SND RHD From 09MY to 10MY	-	1	Enquire
-	6G33102B00BC	INS ENG HSG SND RHD	6G33102B00BC INS ENG HSG SND RHD From 10MY to 12MY	-	1	Enquire
-	6G33102B00AA	INS ENG HSG SND LHD	6G33102B00AA INS ENG HSG SND LHD Up to 09MY	-	1	Enquire
-	6G33102B00AD	INS ENG HSG SND LHD	6G33102B00AD INS ENG HSG SND LHD From 09MY	-	1	Enquire
-	4G4354572AE	Baffle, Floor, LH	4G4354572AE Baffle, Floor, LH 06MY on	-	1	Enquire
-	4G4354571AF	Baffle, Floor, RH	4G4354571AF Baffle, Floor, RH 06MY on	-	1	Enquire
-	8G43C56157AB	SHT DM PG SPT	8G43C56157AB SHT DM PG SPT 08MY	-	1	Enquire
-	4G43002K05AC	BAF BDY FRT PNL LHD	4G43002K05AC BAF BDY FRT PNL LHD 07MY	-	1	Enquire
-	8G43002K06AB	BAFFLE BODY FRONT PANEL RHD RH	8G43002K06AB BAFFLE BODY FRONT PANEL RHD RH 08MY	-	1	Enquire
-	8G43002K05AA	BAFFLE BODY FRONT PANEL LHD RH	8G43002K05AA BAFFLE BODY FRONT PANEL LHD RH 08MY	-	1	Enquire
-	8G435416AE	NVH TNL RR INR	8G435416AE NVH TNL RR INR From 09.5MY	-	1	Enquire
-	697648	Fastener, Fir Tree	697648 Fastener, Fir Tree -	-	4	Enquire
-	702212	Snapsac, 6.8mm, Push-on, Plastic	702212 Snapsac, 6.8mm, Push-on, Plastic -	-	5	Enquire
-	8G3324926AB	PAD TUNNEL SIDE RIGHT HAND	8G3324926AB PAD TUNNEL SIDE RIGHT HAND -	-	1	Enquire
-	8G3324927AB	PAD TUNNEL SIDE LEFT HAND	8G3324927AB PAD TUNNEL SIDE LEFT HAND -	-	1	Enquire
1	4G43310A58AC	A-PILLAR LOWER NVH RH	4G43310A58AC A-PILLAR LOWER NVH RH 07MY	-	1	Enquire
2	4G43310A57AC	A-PILLAR LOWER NVH LH	4G43310A57AC A-PILLAR LOWER NVH LH 07MY	-	1	Enquire
3	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	4G4302293AB Insulation, Sound, Cowl Side Panel Lower, LH -	-	1	Enquire
4	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	4G4302292AB Insulation, Sound, Cowl Side Panel Lower, RH -	-	1	Enquire
5	4G43B1070AA	INSTL SND INS ENG CM	4G43B1070AA INSTL SND INS ENG CM -	-	1	Enquire
6	4G43015A22AB	BAF BDY FRT PNL RHD	4G43015A22AB BAF BDY FRT PNL RHD 07MY	-	1	Enquire
7	4G437Z309AB	INS TRANS CSE CVR	4G437Z309AB INS TRANS CSE CVR -	-	1	Enquire
8	4G4311446AD	INS FLR PAN GR SH LV	4G4311446AD INS FLR PAN GR SH LV 07MY	-	1	Enquire
9	4G4311205AC	REAR FLOOR PAN NVH LH	4G4311205AC REAR FLOOR PAN NVH LH 07MY	-	1	Enquire
10	4G4311204AA	Insulation, Sound, Rear Floor Pan, RH	4G4311204AA Insulation, Sound, Rear Floor Pan, RH -	-	1	Enquire
11	4G43F310A26AA	Insulation, Sound, Quarter I/S Panel	4G43F310A26AA Insulation, Sound, Quarter I/S Panel -	-	2	Enquire
12	4G4328112AB	NVH FOAM PAD ASY FNDR RH UPR	4G4328112AB NVH FOAM PAD ASY FNDR RH UPR -	-	2	Enquire
13	4G4327747AB	INS RR QTR SND LH	4G4327747AB INS RR QTR SND LH -	-	1	Enquire
14	4G4327746AB	INS RR QTR SND RH	4G4327746AB INS RR QTR SND RH -	-	1	Enquire
15	4G4300152BF	INS BDY TO FR RHD	4G4300152BF INS BDY TO FR RHD -	-	1	Enquire
16	4G43114B26AE	INS TNL	4G43114B26AE INS TNL -	-	1	Enquire
17	4G4328110AB	NVH FOAM PAD ASY FNDR RH LWR	4G4328110AB NVH FOAM PAD ASY FNDR RH LWR -	-	1	Enquire
18	4G4328111AB	NVH FOAM PAD ASY FNDR LH LWR	4G4328111AB NVH FOAM PAD ASY FNDR LH LWR -	-	1	Enquire
19	6G33102B00BA	INS ENG HSG SND RHD	6G33102B00BA INS ENG HSG SND RHD Up to 09MY	-	1	Enquire
20	4G4354572AA	BAF FLR LH	4G4354572AA BAF FLR LH -	-	1	Enquire
21	4G4354571AA	BAF FLR RH	4G4354571AA BAF FLR RH -	-	1	Enquire
22	4G4302139AB	BAFFLE COWL TOP IN END	4G4302139AB BAFFLE COWL TOP IN END -	-	1	Enquire
23	4G43C27746AB	INS RR QTR I/S PNL	4G43C27746AB INS RR QTR I/S PNL -	-	2	Enquire
24	4G43C56157AB	PACKAGE TRAY ABSORBER	4G43C56157AB PACKAGE TRAY ABSORBER 07MY	-	1	Enquire
25	4G43002K06AC	BAFFLE BODY FRONT PANEL RHD RH	4G43002K06AC BAFFLE BODY FRONT PANEL RHD RH 07MY	-	1	Enquire
26	6G3368066AB	NVH DASH FOAM UNDER	6G3368066AB NVH DASH FOAM UNDER -	-	1	Enquire
27	8G435416AA	NVH TNL RR INR	8G435416AA NVH TNL RR INR Up to 09.5MY	-	1	Enquire
