Aston Martin GT DB9 (2004-2017) - Body Structure - Underbody, Rear, Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

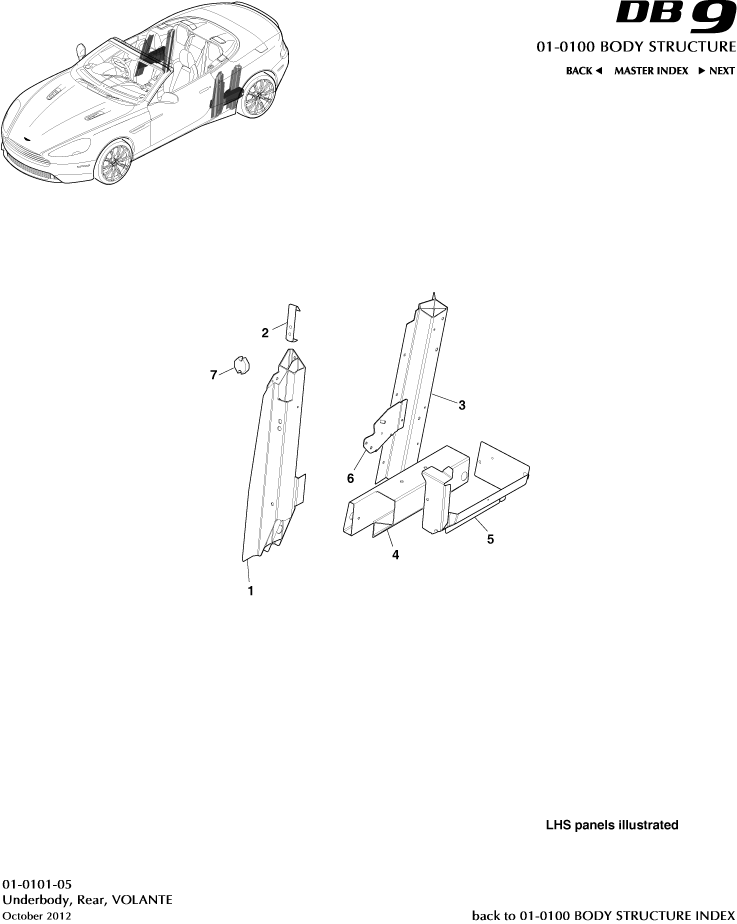

Body Structure - Underbody, Rear, Volante of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DG43L24312AC
Pillar, Centre Body, RH
Structural. Cat A Only 		- 1 Enquire
- DG43L24314AA
Pillar, Centre Body, Outer Rear, RH
Structural. Cat A Only 		- 1 Enquire
- DG43101D06AA
Extension Member, Rear Floor Side Lower, RH
Structural. Cat A Only 		- 1 Enquire
- 8G43L20414AE
REINFORCED DOOR OPENING FRONT REAR RIGHT HAND
Structural. Cat A Only 		- 1 Enquire
- 673016428
CPL.FRONT SEAT HEADREST BLAC
Structural. Cat A Only 		- 1 Enquire
- 670309450
REAR HARNESS
10.5mm Thick 		- A/R Enquire
- 940001780
FRONT EXTERIOR CARBON KIT MC
9.5mm Thick 		- A/R Enquire
- TY63C03408AAW
HDR ASSY COMP
8.5mm Thick 		- A/R Enquire
- SY6YC43720AA
W/STRIP LUGG COMPT
7.5mm Thick 		- A/R Enquire
- 920033584
MCPURA CIELO WELCOME KIT
6.5mm Thick 		- A/R Enquire
- DG43F16352BB
Spacer, Latch Striker
5.5mm Thick 		- A/R Enquire
- 910043656
M240 OWNERS GUIDE ENGLISH CA
4.5mm Thick 		- A/R Enquire
1 DG43L24313AC
Pillar, Centre Body, LH
Structural. Cat A Only 		- 1 Enquire
2 DG43393126AA
Nutplate Assembly, Striker
Structural. Cat A Only 		- 2 Enquire
3 DG43L24315AA
Pillar, Centre Body, Outer Rear, LH
Structural. Cat A Only 		- 1 Enquire
4 DG43101D07AA
Extension Member, Rear Floor Side Lower, LH
Structural. Cat A Only 		- 1 Enquire
5 SY9Y04792CBW
IP MAIN ASSEMBLY LHD
Structural. Cat A Only 		- 1 Enquire
6 DG43L24577AA
Panel, Centre Body Pillar, LH
Structural. Cat A Only 		- 1 Enquire
7 940001781
FRONT EXTERIOR CARBON KIT MC
11.5mm Thick 		- A/R Enquire
