Handles & Locks Mechanisms - Bonnet Latch & Actuation

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Handles & Locks Mechanisms - Bonnet Latch & Actuation

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

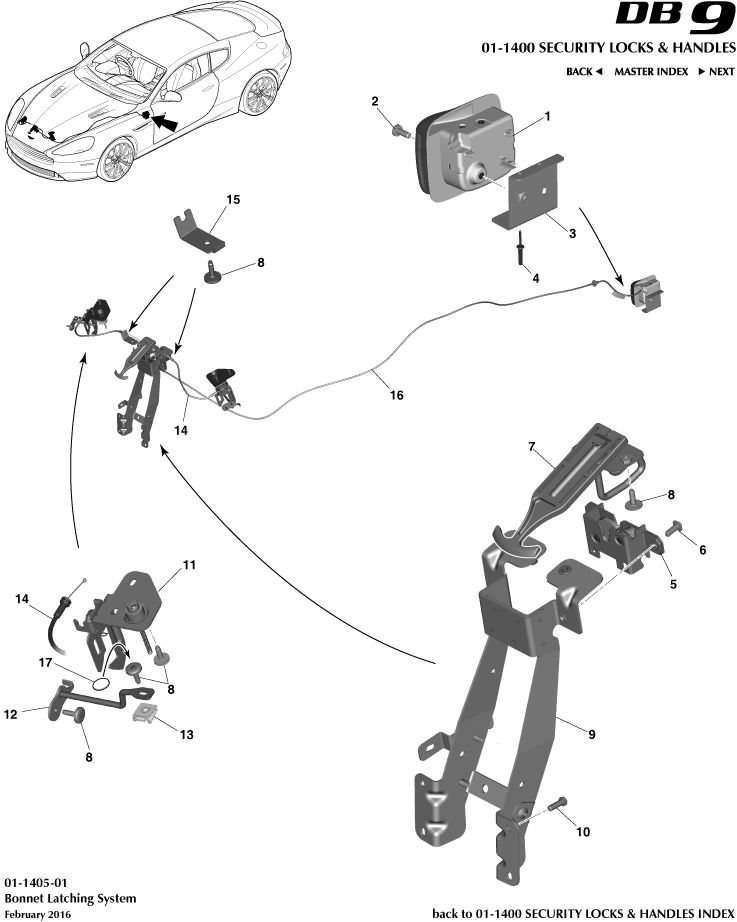

Handles & Locks Mechanisms - Bonnet Latch & Actuation of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DD4316B768AC
LATCH ASY HOD SEC LH
- 		- 1 Enquire
- DD4316A944AA
Striker Bar, Secondary Latch, LH
- 		- 1 Enquire
3 4G4316C730AB
Bracket, Hood Release Handle Mounting
- 		- 1 Enquire
4 701580
Rivet, Dome Head
- 		- 3 Enquire
5 4G436410063
Bonnet Latch
- 		- 1 Enquire
6 703149
SCREW M6x16 PAN FLG TORX CHROME FRE
- 		- 2 Enquire
7 DD435284AD
Striker, Primary With Secondary Release Handle
- 		- 1 Enquire
8 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
20 Per Pack 		- 12 Enquire
9 CD333804AA
Bracket, Hood Latch Mounting
- 		- 1 Enquire
10 703265
Screw, M6 x 16, Hex Flange Head
- 		- 4 Enquire
11 DD4316B769AC
LATCH ASY HOOD SE RH
- 		- 1 Enquire
12 DD4316A945AA
Striker Bar, Secondary Latch, RH
- 		- 1 Enquire
13 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
10 Per Pack
ARRIVING SOON 		- 2 Enquire
14 DD43405C45AD
Cable, Secondary Latch Release
- 		- 1 Enquire
15 DG4316K662AB
BRACKET SEC REL
- 		- 2 Enquire
16 AD4316C656AC
CABLE ASSY HOOD LATC
- 		- 1 Enquire
17 CD33A15K610AA
TORX CAP T X 30
From 15MY 		- 2 Enquire
