Front Heated Seats of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Front Heated Seats

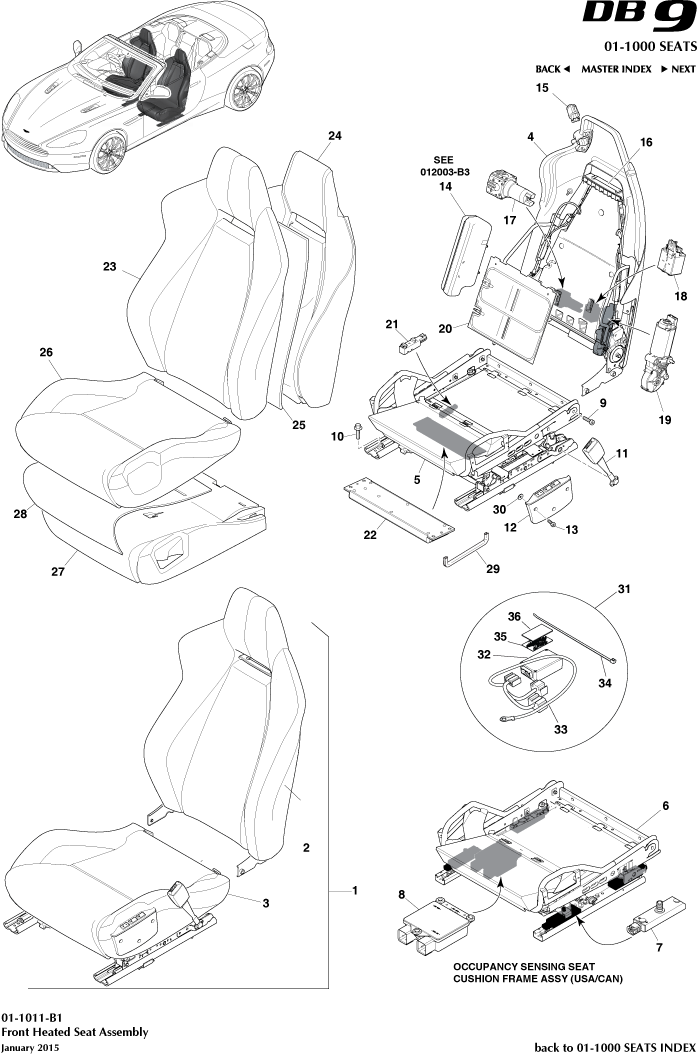

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	GG4360008AAW	ASSY FRONT SEAT RHS	GG4360008AAW ASSY FRONT SEAT RHS From 16MY	-	1	Enquire
-	CG4360009AFW	ASSY FRONT SEAT LHS	CG4360009AFW ASSY FRONT SEAT LHS Up To 16MY	-	1	Enquire
-	GG4360009AAW	ASSY FRONT SEAT LHS	GG4360009AAW ASSY FRONT SEAT LHS From 16MY	-	1	Enquire
-	708778	P/SMPL-KERMIT GREEN	708778 P/SMPL-KERMIT GREEN From 16MY	-	1	Enquire
-	CG4360137ACW	Squab Assembly, Front Seat Trimmed, LH	CG4360137ACW Squab Assembly, Front Seat Trimmed, LH Up To 16MY	-	1	Enquire
-	RY6313069CD	FENDER CARRIER LH	RY6313069CD FENDER CARRIER LH From 16MY	-	1	Enquire
-	708703	L/SMPL-NAVY BLUE-SA	708703 L/SMPL-NAVY BLUE-SA From 16MY	-	1	Enquire
-	CG4360051ABW	Cushion Assembly, Front Seat Trimmed, LH	CG4360051ABW Cushion Assembly, Front Seat Trimmed, LH Up To 16MY	-	1	Enquire
-	RY5320166ABW	DR TRM INNR ASY PLN	RY5320166ABW DR TRM INNR ASY PLN From 16MY	-	1	Enquire
-	CG4364802AC	Squab Frame, Front Seat, LH, Memory	CG4364802AC Squab Frame, Front Seat, LH, Memory -	-	1	Enquire
-	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting USA/Can	-	1	Enquire
-	7G43L60344CB	Cushion Frame, Front Seat, Non Height Adjusting, OCS	7G43L60344CB Cushion Frame, Front Seat, Non Height Adjusting, OCS USA/Can	-	1	Enquire
-	7G4314E693AA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH -	-	1	Enquire
-	GG4364572AAW	FRT ST SQB RH CVR AS	GG4364572AAW FRT ST SQB RH CVR AS From 16MY	-	1	Enquire
-	CG4364573AAW	Cover Assembly, Front Seat Squab, LH	CG4364573AAW Cover Assembly, Front Seat Squab, LH Up To 16MY	-	1	Enquire
-	GG4364573AAW	FRT ST SQB LH CVR AS	GG4364573AAW FRT ST SQB LH CVR AS From 16MY	-	1	Enquire
-	AG434D9513AA	Foam, Squab, LH	AG434D9513AA Foam, Squab, LH -	-	1	Enquire
-	GG4362900AAW	CVR ASY FRT CSHN RH	GG4362900AAW CVR ASY FRT CSHN RH From 16MY	-	1	Enquire
-	CG4362901AAW	Cover Assembly, Front Seat Cushion, LH	CG4362901AAW Cover Assembly, Front Seat Cushion, LH Up To 16MY	-	1	Enquire
-	GG4362901AAW	CVR ASY FRNT CSHN LH	GG4362901AAW CVR ASY FRNT CSHN LH From 16MY	-	1	Enquire
-	8G439516AA	FRT ST CUSH FOAM LH	8G439516AA FRT ST CUSH FOAM LH -	-	1	Enquire
1	CG4360008AFW	ASSY FRONT SEAT RHS	CG4360008AFW ASSY FRONT SEAT RHS Up To 16MY	-	1	Enquire
2	MY63L465C09CA	FRT ROPS CVR LH	MY63L465C09CA FRT ROPS CVR LH Up To 16MY	-	1	Enquire
3	708704	L/SAMPLE-PALE BLU-SA	708704 L/SAMPLE-PALE BLU-SA Up To 16MY	-	1	Enquire
4	CG4364800AC	Squab Frame, Front Seat, RH, Memory	CG4364800AC Squab Frame, Front Seat, RH, Memory -	-	1	Enquire
5	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting ROW	-	2	Enquire
6	7G33V604K40AA	FRT ST CUSH FRM PASS	7G33V604K40AA FRT ST CUSH FRM PASS ROW	-	1	Enquire
7	7G43625B02BA	Sensor Passenger Seat Weight	7G43625B02BA Sensor Passenger Seat Weight USA/Can	-	1	Enquire
8	7G43625B00CC	Module, Passenger Seat Weight	7G43625B00CC Module, Passenger Seat Weight USA/Can	-	1	Enquire
9	4G4361538AB	M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	4G4361538AB M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT -	-	4	Enquire
10	706423	SCREW-M8 x 25 HF PI	706423 SCREW-M8 x 25 HF PI -	-	8	Enquire
12	7G4314E693BA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	7G4314E693BA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH -	-	2	Enquire
13	7G43N014740AA	Screw, M6 x 16, Socket Head	7G43N014740AA Screw, M6 x 16, Socket Head -	-	6	Enquire
15	AD33062A00BB	SEAT TILT SWITCH	AD33062A00BB SEAT TILT SWITCH -	-	1	Enquire
17	AG4365530AA	PUMP FRONT SEAT LUMBAR	AG4365530AA PUMP FRONT SEAT LUMBAR -	-	1	Enquire
18	AG4362690AA	VALVE FRONT SOLENOID SEAT LUMBAR	AG4362690AA VALVE FRONT SOLENOID SEAT LUMBAR -	-	1	Enquire
19	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right See Squab Frame, Item 4	-	1	Enquire
20	920033499	SPARCO SHOES FORMULA 41	920033499 SPARCO SHOES FORMULA 41 -	-	1	Enquire
22	CD3314C249AE	SEAT ECU	CD3314C249AE SEAT ECU -	-	2	Enquire
23	CG4364572AAW	Cover Assembly, Front Seat Squab, RH	CG4364572AAW Cover Assembly, Front Seat Squab, RH Up To 16MY	-	1	Enquire
24	AG434D9514AA	Foam, Squab, RH	AG434D9514AA Foam, Squab, RH -	-	1	Enquire
25	7G4314D696AB	Heating Element, Squab	7G4314D696AB Heating Element, Squab -	-	2	Enquire
26	CG4362900AAW	Cover Assembly, Front Seat Cushion, RH	CG4362900AAW Cover Assembly, Front Seat Cushion, RH Up To 16MY	-	1	Enquire
28	7G4314D698AC	Element, Seat Base Heater	7G4314D698AC Element, Seat Base Heater -	-	2	Enquire
29	DAC402710	Edge Protection, Switch Harness, 150mm	DAC402710 Edge Protection, Switch Harness, 150mm -	-	2	Enquire
30	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20. Front Fixing, LH Seat Only	-	1	Enquire
31	FG43632B22AA	SUPERVISOR KIT	FG43632B22AA SUPERVISOR KIT See QN-01-0026, January 2015	-	1	Enquire
32	FG4318B512AA	SUPERVISOR BOX	FG4318B512AA SUPERVISOR BOX Part of kit #31	-	2	Enquire
33	FG4314B510AA	SUPERVISOR HARNESS	FG4314B510AA SUPERVISOR HARNESS Part of kit #31	-	2	Enquire
34	4G43N02091AB	Tie, Wrap	4G43N02091AB Tie, Wrap Part of kit #31	-	2	Enquire
35	920033488	SPARCO RACING GLOVES 12	920033488 SPARCO RACING GLOVES 12 Part of kit #31	-	2	Enquire
36	920033489	SPARCO RACING GLOVES 13	920033489 SPARCO RACING GLOVES 13 Part of kit #31	-	2	Enquire
