Interior Trim & Ornamentation - Rear Quarter Trim Panel, 2+0 Coupe

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Interior Trim & Ornamentation - Rear Quarter Trim Panel, 2+0 Coupe

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

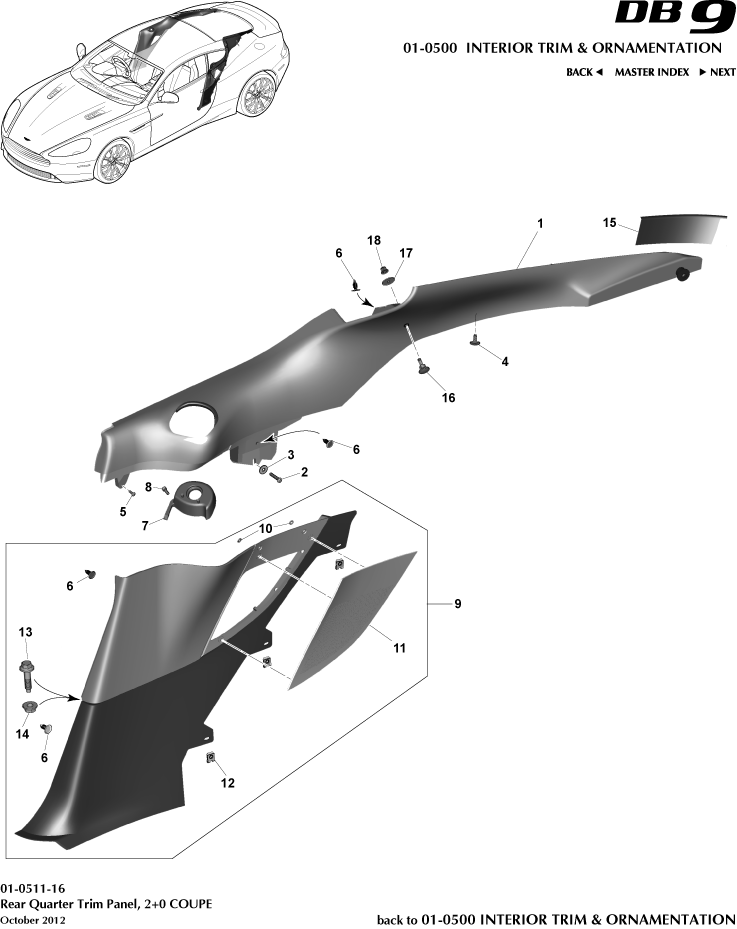

Interior Trim & Ornamentation - Rear Quarter Trim Panel, 2+0 Coupe of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CG4331113AAW
Panel Assy, Rear Quarter Upper, LH
- 		- 1 Enquire
- 4G4324859AEW
Bezel Assembly, Front Seat Belt, LH
- 		- 1 Enquire
- 9D3331013AEW
Panel Assembly, Quarter, LH
- 		- 1 Enquire
- 9D33310B08BA
Speaker Grille, Black Rear Quarter Lower, RH
B&O, Black 		- 1 Enquire
- EG43310B08CA
Speaker Grille, Rear Quarter Lower, RH
Alpine 		- 1 Enquire
- 9D33310B09AC
Speaker Grille, Rear Quarter Lower, LH
B&O 		- 1 Enquire
- 9D33310B09BA
Speaker Grille, Black Rear Quarter Lower, LH
B&O, Black 		- 1 Enquire
- EG43310B09CA
Speaker Grille, Rear Quarter Lower, LH
Alpine 		- 1 Enquire
1 CG4331112AAW
Panel Assy, Rear Quarter Upper, RH
- 		- 1 Enquire
2 704328
Screw, M5 x 20, Torx Pan Head
- 		- 2 Enquire
3 697517PK
WASHER-M6 LGE OD BLK PACK OF 20
Pack of 20 		- 2 Enquire
4 702514
SCREW M6 x 14 PAN HEAD
- 		- 2 Enquire
7 4G4324858AEW
Bezel Assembly, Front Seat Belt, RH
- 		- 1 Enquire
8 4G43V850063AA
Screw, Cap Hd
1 per Bezel 		- 2 Enquire
9 9D3331012AEW
Panel Assembly, Quarter, RH
- 		- 1 Enquire
10 13A2053CP
REGULATOR & MOTOR ASSY - DOOR GLASS - RH
3 per Grille 		- 6 Enquire
11 9D33310B08AC
Speaker Grille, Rear Quarter Lower, RH
B&O 		- 1 Enquire
13 703026
Screw, M5 x 16, Hex Flange Head
7 per Side 		- 14 Enquire
14 702295
Nut, M5, Hex Flange Head
7 per Side 		- 14 Enquire
15 8D3319H207AAW
Anti Squeak Tape
- 		- 2 Enquire
16 9G4318564AA
Hook, Coat
- 		- 2 Enquire
17 697810PK
WSHR-M6x25 SSBLK(10)
Pack of 10 		- 2 Enquire
18 703163
Nut, M6, Hex Flange Head, Locking
- 		- 2 Enquire
