Aston Martin GT DB9 (2004-2017) - Body Structure - Body Rear End, Volante

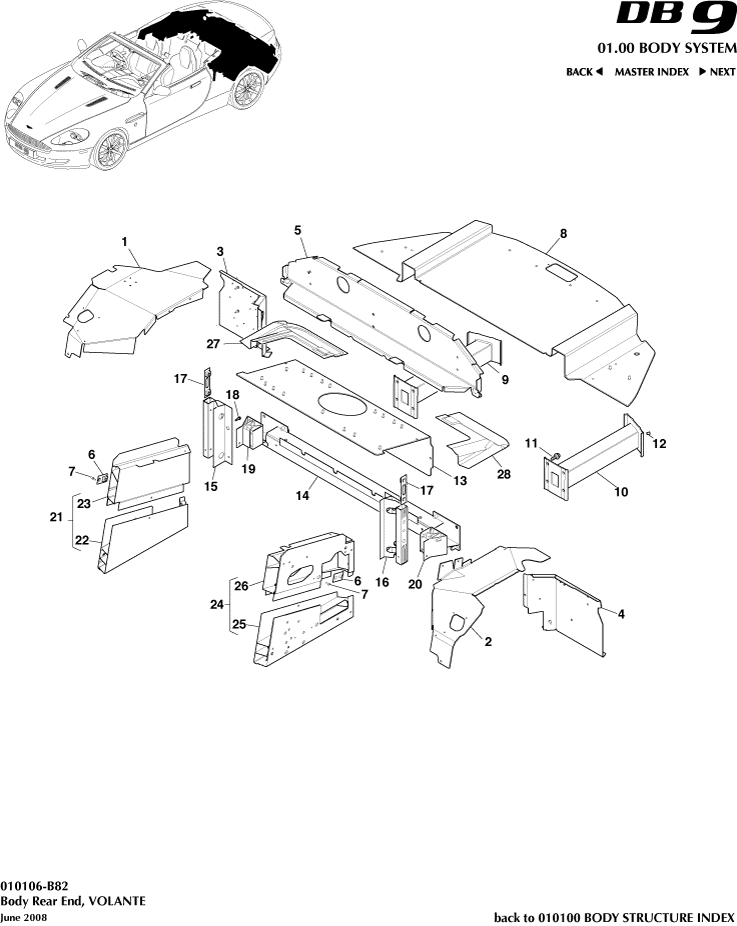

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8G43L40334GB	PNL UPR BK CTR	8G43L40334GB PNL UPR BK CTR 08MY,Structural Cat. A only	-	1	Enquire
1	8G43L279A54AA	PANEL QUARTER WHEEL HOUSE INNER REAR RH	8G43L279A54AA PANEL QUARTER WHEEL HOUSE INNER REAR RH Structural Cat. A only	-	1	Enquire
2	8G43L279A55AB	PANEL QUARTER WHEEL HOUSE INNER REAR LH	8G43L279A55AB PANEL QUARTER WHEEL HOUSE INNER REAR LH Structural Cat. A only	-	1	Enquire
3	9G43L10514AD	PANEL REAR FLOOR SIDE OUTER RIGHT HAND	9G43L10514AD PANEL REAR FLOOR SIDE OUTER RIGHT HAND Structural Cat. A only	-	1	Enquire
4	SY9Y23942FCW	DOOR ASSY TRIM RH	SY9Y23942FCW DOOR ASSY TRIM RH Structural Cat. A only	-	1	Enquire
5	670279890	LH DOOR PANEL INTERNAL TRIM	670279890 LH DOOR PANEL INTERNAL TRIM 07MY,Structural Cat. A only	-	1	Enquire
6	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front Structural Cat. A only	-	1	Enquire
7	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass Structural Cat. A only	-	2	Enquire
9	8G4317F034AA	ABS ASY BMPR RR RH	8G4317F034AA ABS ASY BMPR RR RH Structural Cat. A only	-	1	Enquire
11	701664	SCREW-M8x25 HEX FLG	701664 SCREW-M8x25 HEX FLG Structural Cat. A only	-	8	Enquire
12	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni Structural Cat. A only	-	4	Enquire
13	670224977	COVER	670224977 COVER Structural Cat. A only	-	1	Enquire
14	8G4340338AA	REINF LWR BK CTR PNL	8G4340338AA REINF LWR BK CTR PNL Structural Cat. A only	-	2	Enquire
15	GO8G43101C84AA	BRKT SD MBR RR RH	GO8G43101C84AA BRKT SD MBR RR RH Structural Cat. A only	-	1	Enquire
16	GO8G43101C85AA	BRKT SD MBR RR LH	GO8G43101C85AA BRKT SD MBR RR LH Structural Cat. A only	-	1	Enquire
17	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear Structural Cat. A only	-	2	Enquire
18	6G33375732AA	SCR SS HEX FL HD	6G33375732AA SCR SS HEX FL HD Structural Cat. A only	-	4	Enquire
19	670279893	LH OUTER FLAP BLACK	670279893 LH OUTER FLAP BLACK Structural Cat. A only	-	1	Enquire
20	670288073	PILLAR COVER	670288073 PILLAR COVER Structural Cat. A only	-	1	Enquire
21	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass Structural Cat. A only	-	1	Enquire
22	SY9Y23943FCW	DOOR ASSY TRIM LH	SY9Y23943FCW DOOR ASSY TRIM LH Structural Cat. A only	-	1	Enquire
23	670240255	LH FRONT SEAT TAN	670240255 LH FRONT SEAT TAN Structural Cat. A only	-	1	Enquire
24	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass Structural Cat. A only	-	1	Enquire
25	8G4310457AC	MEMBER REAR FLOOR SIDE LH	8G4310457AC MEMBER REAR FLOOR SIDE LH Structural Cat. A only	-	1	Enquire
26	670274402	LH REAR SIDE PANEL BLACK-ICE	670274402 LH REAR SIDE PANEL BLACK-ICE Structural Cat. A only	-	1	Enquire
27	4G4324442AB	CAP CENTRE BODY PILLAR RH	4G4324442AB CAP CENTRE BODY PILLAR RH Structural Cat. A only	-	1	Enquire
28	4G4324443AB	CAP CENTRE BODY PILLAR LH	4G4324443AB CAP CENTRE BODY PILLAR LH Structural Cat. A only	-	1	Enquire
