Body Structure - Body Rear End Composite, Volante

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Body Structure - Body Rear End Composite, Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

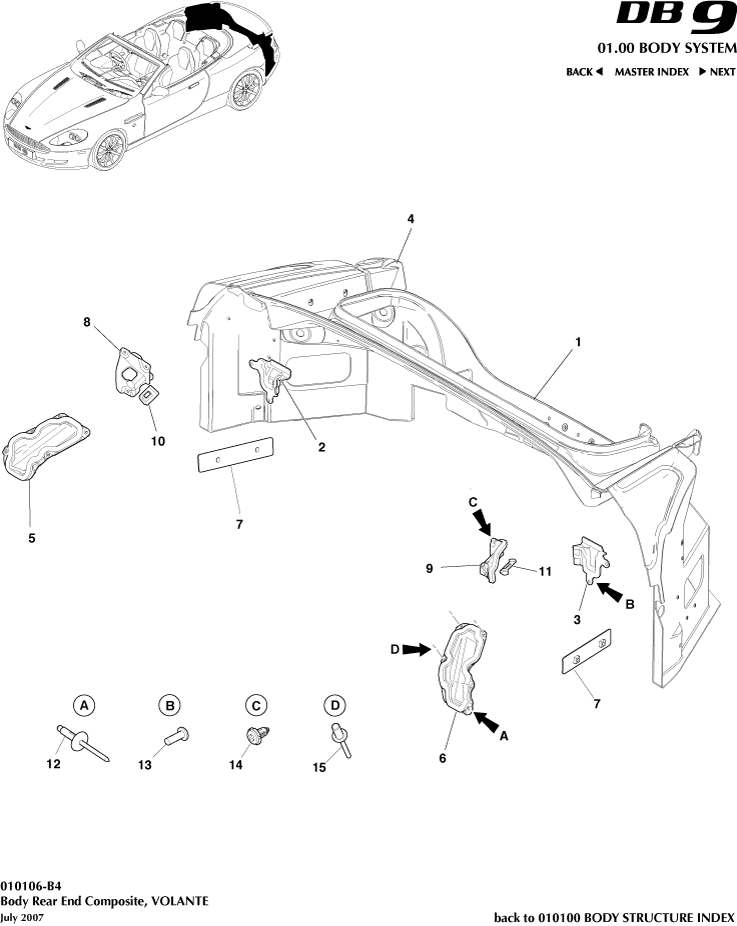

Body Structure - Body Rear End Composite, Volante of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8G43L45108AA
TRUNK LID SURROUND
From 08MY,Structural Cat. A only 		- 1 Enquire
- 4G43L40739AF
FILL TL GTPNL LWR CN
Structural Cat. A only 		- 1 Enquire
- 4G43C42765AF
REINF L/C DR HE INR
Structural Cat. A only 		- 1 Enquire
1 4G43L45108AJ
TRUNK LID SURROUND
Up to 07MY,Structural Cat. A only 		- 1 Enquire
2 4G43500B30AC
TONNEAU DRAIN RH
Structural Cat. A only 		- 1 Enquire
3 4G43500B31AC
TONNEAU LH
Structural Cat. A only 		- 1 Enquire
4 4G43L40738AF
FILL TL GTPNL LWR CN
Structural Cat. A only 		- 1 Enquire
5 4G4324442AB
CAP CENTRE BODY PILLAR RH
- 		- 1 Enquire
6 4G4324443AB
CAP CENTRE BODY PILLAR LH
- 		- 1 Enquire
7 4G43C42764AF
REINF L/C DR HE INR
Structural Cat. A only 		- 1 Enquire
9 4G43430A47AF
Seal, Hinge to Inner Panel, LH
- 		- 1 Enquire
10 4G43427A20AD
Wipe seal, Tnneau Hinge, RH
- 		- 1 Enquire
11 4G43427A21AD
Wipe seal, Tonneau Hinge, LH
- 		- 1 Enquire
12 6G33RA610123AA
Pop Rivet, Aluminium, 4.8
- 		- 2 Enquire
13 703074
Rivet, 4.65 x 13.8
- 		- 4 Enquire
14 4G437810814
Fastener Assembly, 6.2x3, 5.8, Push In
- 		- 6 Enquire
15 703754
RIVET-BLIND- 4.8x6.4-7.9 ALLOY/S.STEEL
- 		- 8 Enquire
