Body Sealing - Static Sealing

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Body Sealing - Static Sealing

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

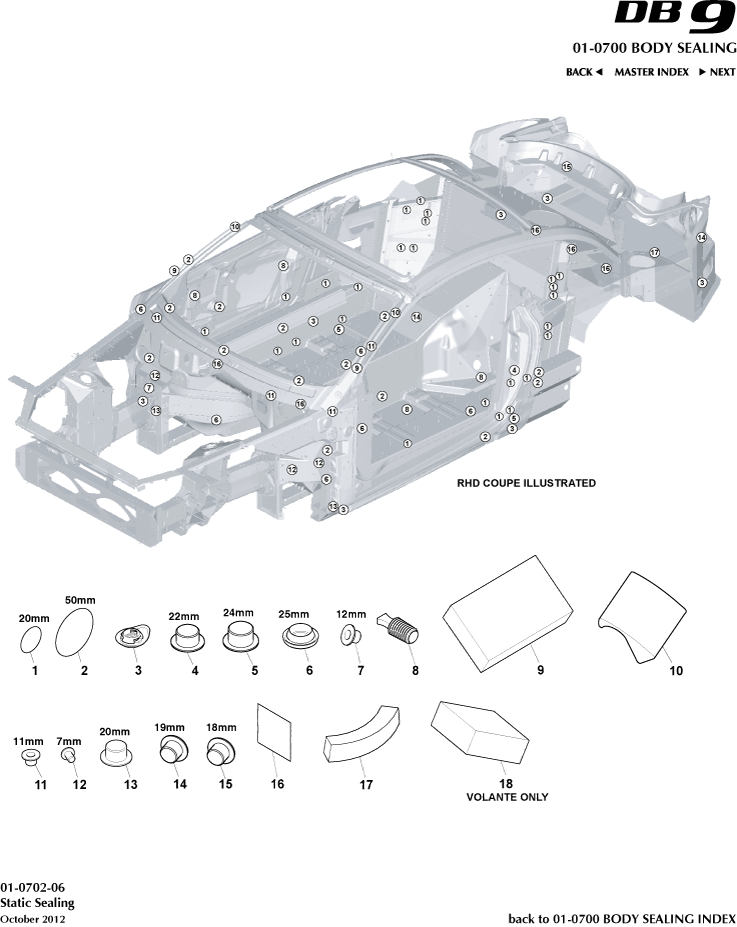

Body Sealing - Static Sealing of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G43L20222AA
Small Seal Patch for Door Mod
- 		- 29 Enquire
2 4G43L20220AA
Seal Patch, Large 50mm
- 		- 26 Enquire
3 702804
Drain Plug, Rubber, 20mm x 0.6 - 2.2, Push In
- 		- 6 Enquire
4 6G33N804263AA
Rubber Plug, 22mm, Black Thermoplastic
- 		- 1 Enquire
5 6G33N804814AA
Rubber Plug, 24mm, Black Thermoplastic
- 		- 2 Enquire
6 4G432273AA
BLACK TPR BODY PLUG 25mm
- 		- 6 Enquire
7 6G3325919AA
Rubber Plug, 12mm, Black Thermoplastic
- 		- 1 Enquire
8 4G43N805935AA
Flangeless Plug, Black PVC, 17mm
- 		- 4 Enquire
9 4G43F280C09AA
A PILLAR SEALING PRISEAL FOAM BLOCK
- 		- 2 Enquire
11 4G43N800631AA
Rubber Plug, 11mm, Black Thermoplastic
- 		- 5 Enquire
12 4G43N800631AA
Rubber Plug, 11mm, Black Thermoplastic
- 		- 6 Enquire
13 6G33N806457AA
Rubber Plug, 20mm, Black Thermoplastic
- 		- 2 Enquire
14 4G43N808070AA
Rubber Plug, 19mm, Black Thermoplastic
- 		- 2 Enquire
15 4G43N804138AA
Rubber Plug, 18mm, Black Thermoplastic
- 		- 1 Enquire
16 6G43F78410AA
Sealing Pad, Al Butyl, 35 x 35
5 Required For Coupe 		- 8 Enquire
17 4G43M4D4515BA
FOAM
- 		- 1 Enquire
18 4G4358863AA
Pad, Header Sealing
Volante 		- 2 Enquire

Haven't found what you're looking for?
