Interior Trim - Floor Trim of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Interior Trim - Floor Trim

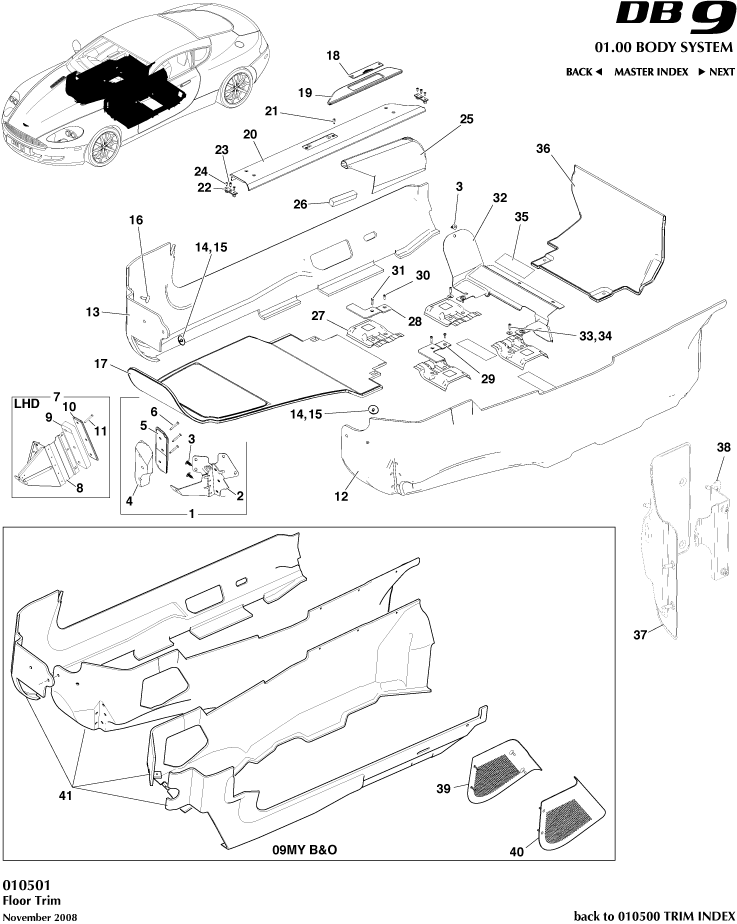

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G433N328BE	Bracket, Foot Rest	4G433N328BE Bracket, Foot Rest 06MY on	-	1	Enquire
-	4G43044J09AC	ENERY ABSORBING BLOCK LHD FOOTREST	4G43044J09AC ENERY ABSORBING BLOCK LHD FOOTREST 06MY on	-	1	Enquire
-	4G438010295	SILL NAME PLATE DB9 PERSONALISED	4G438010295 SILL NAME PLATE DB9 PERSONALISED -	-	2	Enquire
-	670354707	LH REAR DOOR SEAL	670354707 LH REAR DOOR SEAL Special Edition-Le Mans	-	2	Enquire
-	670354877	HUB ASSEMBLY	670354877 HUB ASSEMBLY Special Edition	-	2	Enquire
-	697687	SCREW No6 x 9.5 CSK BLACK IN STOCK	697687 SCREW No6 x 9.5 CSK BLACK IN STOCK	-	4	Enquire
-	4G4313255AAW	SILL TREAD LEATHER NAME PAD LH	4G4313255AAW SILL TREAD LEATHER NAME PAD LH -	-	1	Enquire
-	4G43132A12BE	FRONT SILL SCUFF PLATE RH	4G43132A12BE FRONT SILL SCUFF PLATE RH 07MY	-	1	Enquire
-	4G43132A13BC	PLT DR SCF FRT LH	4G43132A13BC PLT DR SCF FRT LH Up to 06MY	-	1	Enquire
-	4G43132A13BE	FRONT SILL SCUFF PLATE LH	4G43132A13BE FRONT SILL SCUFF PLATE LH 07MY	-	1	Enquire
-	673010976	REAR SEAT BACK CROSS MEMBER	673010976 REAR SEAT BACK CROSS MEMBER 08MY to 13MY	-	1	Enquire
-	703738	SCREW-M6x20 FLAT HD CSK TORX 8.8 FC T18	703738 SCREW-M6x20 FLAT HD CSK TORX 8.8 FC T18 08MY	-	4	Enquire
-	4G43831237AAW	HANDBRAKE GAITER LHD	4G43831237AAW HANDBRAKE GAITER LHD 07MY	-	1	Enquire
-	673012602	RH REAR BRACKET BLACK	673012602 RH REAR BRACKET BLACK 07MY	-	1	Enquire
-	673012607	LH REAR BRACKET BLACK	673012607 LH REAR BRACKET BLACK 07MY	-	1	Enquire
-	4G432B099AC	FT SCF PLT REINF BRK	4G432B099AC FT SCF PLT REINF BRK B + O Speakers	-	1	Enquire
-	4G438310389	DB9 LHD FRONT & REAR CARPET KIT- OBSIDIAN ALL MODEL YEARS	4G438310389 DB9 LHD FRONT & REAR CARPET KIT- OBSIDIAN ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310381	DB9 RHD SIDE & CENTRE CARPET KIT OBSIDIAN-ALL MOD YRS	4G438310381 DB9 RHD SIDE & CENTRE CARPET KIT OBSIDIAN-ALL MOD YRS All Model Years	-	1	Enquire
-	4G438310405	DB9 LHD SIDE & CENTRE CARPET KIT OBSIDIAN-ALL MOD YRS	4G438310405 DB9 LHD SIDE & CENTRE CARPET KIT OBSIDIAN-ALL MOD YRS All Model Years	-	1	Enquire
-	4G438310366	DB9 RHD FRONT & REAR CARPET KIT - BLACK CHERRY ALL MOD YEARS	4G438310366 DB9 RHD FRONT & REAR CARPET KIT - BLACK CHERRY ALL MOD YEARS All Model Years	-	1	Enquire
-	4G438310390	DB9 LHD FRONT & REAR CARPET KIT - BLACK CHERRY ALL MOD YEARS	4G438310390 DB9 LHD FRONT & REAR CARPET KIT - BLACK CHERRY ALL MOD YEARS All Model Years	-	1	Enquire
-	4G438310382	DB9 RHD SIDE & CENTRE CARPET KIT - B.CHERRY-ALL MOD YRS	4G438310382 DB9 RHD SIDE & CENTRE CARPET KIT - B.CHERRY-ALL MOD YRS All Model Years	-	1	Enquire
-	4G438310406	DB9 LHD SIDE & CENTRE CARPET KIT - B.CHERRY ALL MOD YRS	4G438310406 DB9 LHD SIDE & CENTRE CARPET KIT - B.CHERRY ALL MOD YRS All Model Years	-	1	Enquire
-	4G438310367	DB9 RHD FRONT & REAR CARPET KIT-PARLIAM T GREEN ALL MOD YEARS	4G438310367 DB9 RHD FRONT & REAR CARPET KIT-PARLIAM T GREEN ALL MOD YEARS All Model Years	-	1	Enquire
-	4G438310391	DB9 LHD FRONT & REAR CARPET KIT-PARLIAM T GREEN ALL MOD YEARS	4G438310391 DB9 LHD FRONT & REAR CARPET KIT-PARLIAM T GREEN ALL MOD YEARS All Model Years	-	1	Enquire
-	4G438310383	DB9 RHD SIDE &CENTRE CARPET KIT-PARLIAM T GREEN ALL MOD YEARS	4G438310383 DB9 RHD SIDE &CENTRE CARPET KIT-PARLIAM T GREEN ALL MOD YEARS All Model Years	-	1	Enquire
-	4G438310407	DB9 LHD SIDE &CENTRE CARPET KIT-PARLIAM T GREEN ALL MOD YEARS	4G438310407 DB9 LHD SIDE &CENTRE CARPET KIT-PARLIAM T GREEN ALL MOD YEARS All Model Years	-	1	Enquire
-	4G438310368	DB9 RHD FRONT & REAR CARPET KIT-SANDSTORM ALL MODEL YEARS	4G438310368 DB9 RHD FRONT & REAR CARPET KIT-SANDSTORM ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310392	DB9 LHD FRONT & REAR CARPET KIT-SANDSTORM ALL MODEL YEARS	4G438310392 DB9 LHD FRONT & REAR CARPET KIT-SANDSTORM ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310384	DB9 RHD SIDE &CENTRE CARPET KIT-SANDSTORM ALL MODEL YEARS	4G438310384 DB9 RHD SIDE &CENTRE CARPET KIT-SANDSTORM ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310408	DB9 LHD SIDE &CENTRE CARPET KIT-SANDSTORM ALL MODEL YEARS	4G438310408 DB9 LHD SIDE &CENTRE CARPET KIT-SANDSTORM ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310369	DB9 RHD FRONT & REAR CARPET KIT-BLUE HAZE ALL MODEL YEARS	4G438310369 DB9 RHD FRONT & REAR CARPET KIT-BLUE HAZE ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310393	DB9 LHD FRONT & REAR CARPET KIT-BLUE HAZE ALL MODEL YEARS	4G438310393 DB9 LHD FRONT & REAR CARPET KIT-BLUE HAZE ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310385	DB9 RHD SIDE &CENTRE CARPET KIT-BLUE HAZE ALL MODEL YEARS	4G438310385 DB9 RHD SIDE &CENTRE CARPET KIT-BLUE HAZE ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310409	DB9 LHD SIDE &CENTRE CARPET KIT-BLUE HAZE ALL MODEL YEARS	4G438310409 DB9 LHD SIDE &CENTRE CARPET KIT-BLUE HAZE ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310370	DB9 RHD FRONT & REAR CARPET KIT - CASPIAN BLUE ALL MODEL YEARS	4G438310370 DB9 RHD FRONT & REAR CARPET KIT - CASPIAN BLUE ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310394	DB9 LHD FRONT & REAR CARPET KIT - CASPIAN BLUE ALL MODEL YEARS	4G438310394 DB9 LHD FRONT & REAR CARPET KIT - CASPIAN BLUE ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310386	DB9 RHD SIDE &CENTRE CARPET KIT - CASPIAN BLUE ALL MODEL YEARS	4G438310386 DB9 RHD SIDE &CENTRE CARPET KIT - CASPIAN BLUE ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310410	DB9 LHD SIDE &CENTRE CARPET KIT - CASPIAN BLUE ALL MODEL YEARS	4G438310410 DB9 LHD SIDE &CENTRE CARPET KIT - CASPIAN BLUE ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310371	DB9 RHD FRONT & REAR CARPET KIT - PHANTOM GREY ALL MODEL YEARS	4G438310371 DB9 RHD FRONT & REAR CARPET KIT - PHANTOM GREY ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310395	DB9 LHD FRONT & REAR CARPET KIT - PHANTOM GREY ALL MODEL YEARS	4G438310395 DB9 LHD FRONT & REAR CARPET KIT - PHANTOM GREY ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310387	DB9 RHD SIDE &CENTRE CARPET KIT - PHANTOM GREY ALL MODEL YEARS	4G438310387 DB9 RHD SIDE &CENTRE CARPET KIT - PHANTOM GREY ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310411	DB9 LHD SIDE &CENTRE CARPET KIT - PHANTOM GREY ALL MODEL YEARS	4G438310411 DB9 LHD SIDE &CENTRE CARPET KIT - PHANTOM GREY ALL MODEL YEARS All Model Years	-	1	Enquire
-	4G438310372	DB9 RHD FRONT & REAR CARPET KIT - BITTER CHOC. ALL MOD YEARS	4G438310372 DB9 RHD FRONT & REAR CARPET KIT - BITTER CHOC. ALL MOD YEARS All Model Years	-	1	Enquire
-	4G438310396	DB9 LHD FRONT & REAR CARPET KIT - BITTER CHOC. ALL MODEL YRS	4G438310396 DB9 LHD FRONT & REAR CARPET KIT - BITTER CHOC. ALL MODEL YRS All Model Years	-	1	Enquire
-	4G438310388	DB9 RHD SIDE &CENTRE CARPET KIT - BITTER CHOC. ALL MOD YEARS	4G438310388 DB9 RHD SIDE &CENTRE CARPET KIT - BITTER CHOC. ALL MOD YEARS All Model Years	-	1	Enquire
-	4G438310412	DB9 LHD SIDE &CENTRE CARPET KIT - BITTER CHOC. ALL MOD YEARS	4G438310412 DB9 LHD SIDE &CENTRE CARPET KIT - BITTER CHOC. ALL MOD YEARS All Model Years	-	1	Enquire
-	9G438311017	DB9 RHD FRONT & REAR CARPET KIT-SAHARA TAN - ALL MOD YEARS	9G438311017 DB9 RHD FRONT & REAR CARPET KIT-SAHARA TAN - ALL MOD YEARS All Model Years	-	1	Enquire
-	9G438311018	DB9 LHD FRONT & REAR CARPET KIT-SAHARA TAN- ALL MOD YEARS	9G438311018 DB9 LHD FRONT & REAR CARPET KIT-SAHARA TAN- ALL MOD YEARS All Model Years	-	1	Enquire
-	9G438311020	DB9 RHD SIDE & CENTRE CARPET KIT SAHARA TAN	9G438311020 DB9 RHD SIDE & CENTRE CARPET KIT SAHARA TAN All Model Years	-	1	Enquire
-	9G438311022	DB9 LHD SIDE & CENTRE CARPET KIT SAHARA TAN	9G438311022 DB9 LHD SIDE & CENTRE CARPET KIT SAHARA TAN All Model Years	-	1	Enquire
1	6G339662AA	RH FOOTREST ASY	6G339662AA RH FOOTREST ASY -	-	1	Enquire
2	6G333N234AA	BRACKET FOOTREST RHD	6G333N234AA BRACKET FOOTREST RHD -	-	1	Enquire
3	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free - IN STOCK	-	3	Enquire
4	6G33044J08AA	Energy Absorber, Footrest	6G33044J08AA Energy Absorber, Footrest -	-	1	Enquire
5	6G3312021AA	RH F/R COVER PLATE	6G3312021AA RH F/R COVER PLATE -	-	1	Enquire
6	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK -	-	3	Enquire
7	SY9Y14A272BB	P2.5 INVERTER AC CAB	SY9Y14A272BB P2.5 INVERTER AC CAB -	-	1	Enquire
8	4G433N328BC	RES FT ASY LHD	4G433N328BC RES FT ASY LHD Up to 06MY	-	1	Enquire
9	4G43044J09AA	ENER ABS FT RST LHD	4G43044J09AA ENER ABS FT RST LHD Up to 06MY	-	1	Enquire
10	9G4312020BA	LHD FOOTREST TOP PAD ASSY	9G4312020BA LHD FOOTREST TOP PAD ASSY -	-	1	Enquire
11	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK -	-	3	Enquire
12	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right See item 41	-	1	Enquire
13	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right See item 41	-	1	Enquire
14	6G3313925AA	Push On Button, M5 x 35 IN STOCK	6G3313925AA Push On Button, M5 x 35 - IN STOCK	-	3	Enquire
15	697251PK	NUT-M5 FLG HEX (10)	697251PK NUT-M5 FLG HEX (10) Pack of 10	-	3	Enquire
16	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20) Pack of 20	-	2	Enquire
17	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right See item 41	-	1	Enquire
18	4G438010787	NAMEPLATE-FRONT SILL STANDARD- AM WING ONLY DB9	4G438010787 NAMEPLATE-FRONT SILL STANDARD- AM WING ONLY DB9 -	-	2	Enquire
19	4G4313254AAW	SILL TREAD LEATHER NAME PAD RH	4G4313254AAW SILL TREAD LEATHER NAME PAD RH -	-	1	Enquire
20	4G43132A12BC	PLT DR SCF FRT RH	4G43132A12BC PLT DR SCF FRT RH Up to 06MY	-	1	Enquire
21	702084	Screw, M5 x 12, Pan Head	702084 Screw, M5 x 12, Pan Head -	-	2	Enquire
22	4G4313218BA	BRACKET FRONT SCUFF TO SILL BIW	4G4313218BA BRACKET FRONT SCUFF TO SILL BIW -	-	4	Enquire
23	4G433L657AA	Screw, M5 x 20, Countersunk, Black	4G433L657AA Screw, M5 x 20, Countersunk, Black 07MY	-	4	Enquire
24	699123	Screw, No.6 x 9.5 Countersunk Head	699123 Screw, No.6 x 9.5 Countersunk Head -	-	8	Enquire
25	4G43831236AAW	HANDBRAKE GAITER RHD	4G43831236AAW HANDBRAKE GAITER RHD 07MY	-	1	Enquire
26	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter -	-	1	Enquire
27	6G33M1H403AA	Cover, Floor Pan	6G33M1H403AA Cover, Floor Pan -	-	4	Enquire
28	6G33666A40AB	Finisher, Carpet, Common, RHS	6G33666A40AB Finisher, Carpet, Common, RHS -	-	1	Enquire
29	6G33666A41AB	Finisher, Carpet, Common, LHS	6G33666A41AB Finisher, Carpet, Common, LHS -	-	1	Enquire
30	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head -	-	4	Enquire
31	6G3368D11BA	Screw, M5 x 20, Cap Head IN STOCK	6G3368D11BA Screw, M5 x 20, Cap Head - IN STOCK	-	4	Enquire
32	4G43100A90AA	Support Panel, Rear Floor, RH	4G43100A90AA Support Panel, Rear Floor, RH -	-	1	Enquire
33	702217	Screw, M5 x 2.5 x 20, Internal Hex Dome Head IN STOCK	702217 Screw, M5 x 2.5 x 20, Internal Hex Dome Head - IN STOCK	-	2	Enquire
34	8G438979AA	WASHER M5 x 20 x 1.5 THK ST/STEEL BLK IN STOCK	8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK - IN STOCK	-	4	Enquire
35	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided -	-	3	Enquire
36	4G43130A36ACW	Carpet Assembly, Rear Floor RH	4G43130A36ACW Carpet Assembly, Rear Floor RH See item 41	-	1	Enquire
37	4G4318449BD	ACCELERATOR SCUFF PLATE LHD	4G4318449BD ACCELERATOR SCUFF PLATE LHD -	-	1	Enquire
38	4G432B099AB	FT SCF PLT REINF BRK	4G432B099AB FT SCF PLT REINF BRK -	-	1	Enquire
39	9D33311A76CA	Speaker Grille, Footwell, RH, B&O	9D33311A76CA Speaker Grille, Footwell, RH, B&O -	-	1	Enquire
40	9D33311A77CA	Speaker Grille, Footwell, LH, B&O	9D33311A77CA Speaker Grille, Footwell, LH, B&O -	-	1	Enquire
41	4G438310365	DB9 RHD FRONT & REAR CARPET KIT- OBSIDIAN ALL MODEL YEARS	4G438310365 DB9 RHD FRONT & REAR CARPET KIT- OBSIDIAN ALL MODEL YEARS All Model Years	-	1	Enquire
