Body Structure - Body Dash & Cowl, Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Body Structure - Body Dash & Cowl, Volante

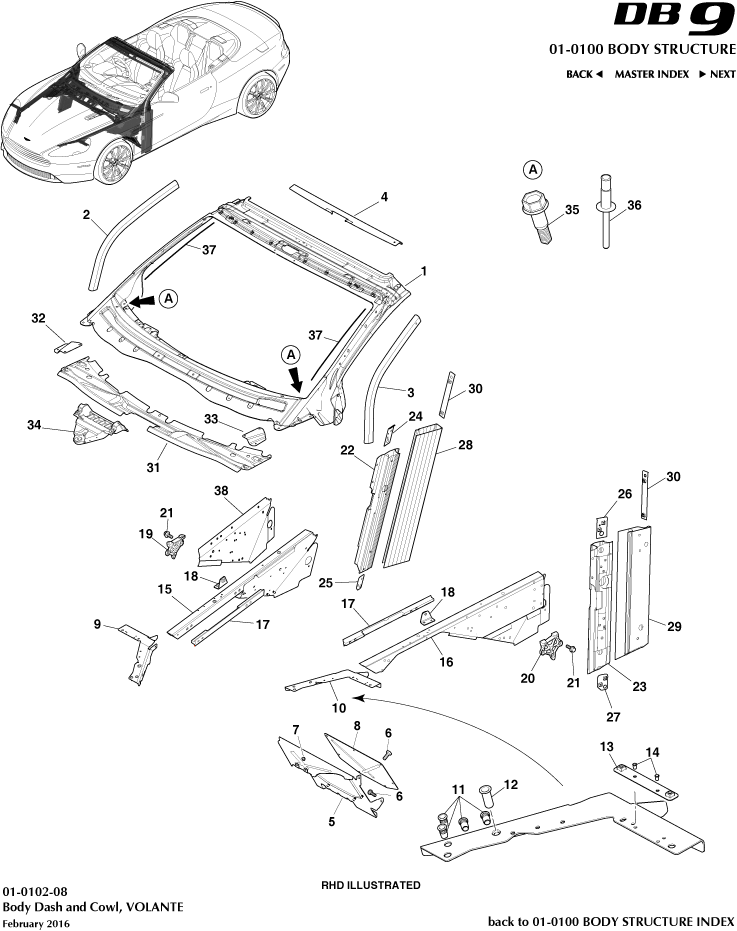

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	EG43L03014AC	Frame Assembly, Windshield	EG43L03014AC Frame Assembly, Windshield From 14 MY. Structural. Cat A Only	-	1	Enquire
-	9G43111C60GD	Panel, Dummy Floor Front, LHD	9G43111C60GD Panel, Dummy Floor Front, LHD Structural. Cat A Only	-	1	Enquire
-	RY5313E796AE	CNSL ROLL SW LEFT HE	RY5313E796AE CNSL ROLL SW LEFT HE Structural. Cat A Only	-	1	Enquire
1	DG43L03014AD	Frame Assembly, Windshield	DG43L03014AD Frame Assembly, Windshield Up to 14MY. Structural. Cat A Only	-	1	Enquire
2	GOAG33F02526AA	REINF FRT BDY PLR RH	GOAG33F02526AA REINF FRT BDY PLR RH Structural. Cat A Only	-	1	Enquire
3	GOAG33F02527AA	Pillar, Front Body Reinforcement, LH	GOAG33F02527AA Pillar, Front Body Reinforcement, LH Structural. Cat A Only	-	1	Enquire
4	4G43L03444AB	Reinf Windshield Header	4G43L03444AB Reinf Windshield Header Structural. Cat A Only	-	1	Enquire
6	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head -	-	12	Enquire
7	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE -	-	2	Enquire
9	DG4316430AA	Reinforcement, Hood Striker Plate, RH	DG4316430AA Reinforcement, Hood Striker Plate, RH Structural. Cat A Only	-	1	Enquire
10	DG4316431AA	Reinforcement, Hood Striker Plate, LH	DG4316431AA Reinforcement, Hood Striker Plate, LH Structural. Cat A Only	-	1	Enquire
13	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket Structural. Cat A Only	-	2	Enquire
14	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 2 per Nutplate	-	4	Enquire
15	DD4316185AC	Extrusion, Front Wing LH	DD4316185AC Extrusion, Front Wing LH Structural. Cat A Only	-	1	Enquire
16	DD4316184AC	Extrusion, Front Wing RH	DD4316184AC Extrusion, Front Wing RH Structural. Cat A Only	-	1	Enquire
17	GODG4317F790BA	Nutplate, Shotgun, M10	GODG4317F790BA Nutplate, Shotgun, M10 Structural. Cat A Only	-	2	Enquire
18	DG4318178BA	Bracket, Gas Damper Mounting	DG4318178BA Bracket, Gas Damper Mounting Structural. Cat A Only	-	2	Enquire
21	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	6	Enquire
22	GODG43F02660AB	Pillar, Front Body, Lower Front, RH	GODG43F02660AB Pillar, Front Body, Lower Front, RH Structural. Cat A Only	-	1	Enquire
23	GODG43F02661AB	Pillar, Front Body, Lower Front, LH	GODG43F02661AB Pillar, Front Body, Lower Front, LH Structural. Cat A Only	-	1	Enquire
24	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	6G3371490AA Nutplate, A Post Hinge, Upper, RH Structural. Cat A Only	-	1	Enquire
25	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	6G3315110AB Nutplate M8, ??post hinge, lower, RH Structural. Cat A Only	-	1	Enquire
26	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	6G3394545AA Nutplate, A Post Hinge, Upper, LH Structural. Cat A Only	-	1	Enquire
27	22AB326GP	TAILGATE COOLING AIR DUCT RH	22AB326GP TAILGATE COOLING AIR DUCT RH Structural. Cat A Only	-	1	Enquire
28	GODG43F02662AC	Extrusion, Front Body Pillar Lower, RH	GODG43F02662AC Extrusion, Front Body Pillar Lower, RH Structural. Cat A Only	-	1	Enquire
29	GODG43F02663AC	Extrusion, Front Body Pillar Lower, LH	GODG43F02663AC Extrusion, Front Body Pillar Lower, LH Structural. Cat A Only	-	1	Enquire
31	GODG43F292650AC	Plenum, Lower	GODG43F292650AC Plenum, Lower Structural. Cat A Only	-	1	Enquire
32	GODG4319414AA	Adaptor, Plenum Lower, RH	GODG4319414AA Adaptor, Plenum Lower, RH Structural. Cat A Only	-	1	Enquire
33	GODG4319415AA	Adaptor, Plenum Lower, LH	GODG4319415AA Adaptor, Plenum Lower, LH Structural. Cat A Only	-	1	Enquire
34	GODD4371023AE	Cowl, Reinforcement Casting	GODD4371023AE Cowl, Reinforcement Casting Structural. Cat A Only	-	1	Enquire
35	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head -	-	2	Enquire
36	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind -	-	A/R	Enquire
38	22AA542GP	GAS STRUT DOOR RH	22AA542GP GAS STRUT DOOR RH Structural. Cat A Only	-	1	Enquire
