Aston Martin GT DB9 (2004-2017) - Body Structure - Underbody, Rear, Coupe

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

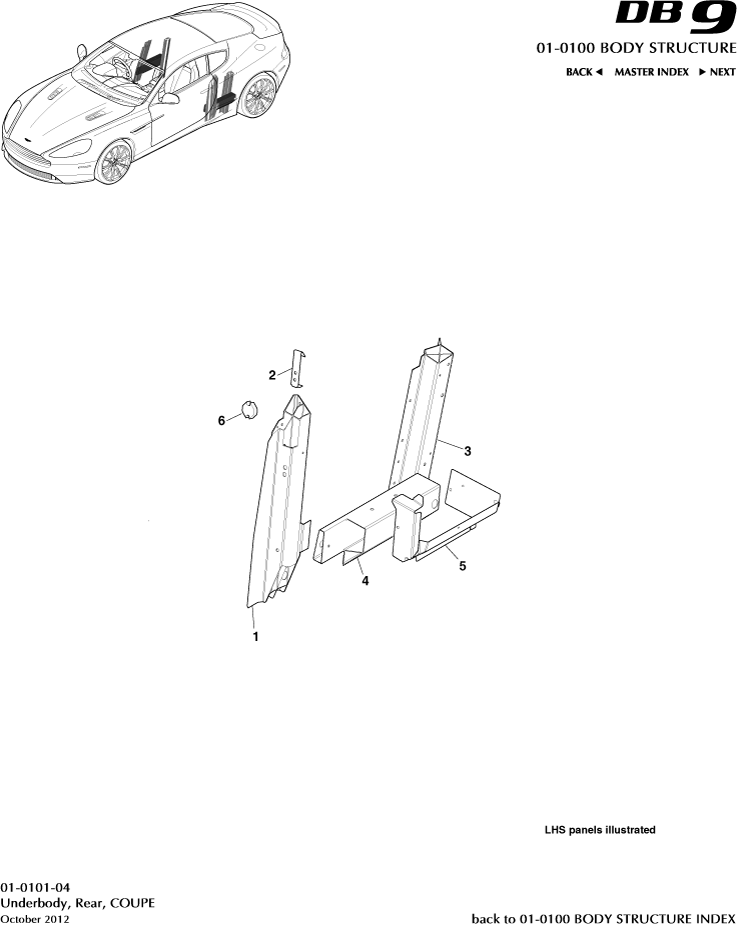

Body Structure - Underbody, Rear, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 940001777
INTERIOR CARBON KIT MCPURA
From 15MY Structural. Cat A Only 		- 1 Enquire
- DG43C24312AD
Pillar, Centre Body, RH
Structural. Cat A Only 		- 1 Enquire
- 940001775
BLACK WHEEL CENTER LOCK
From 15MY Structural. Cat A Only 		- 1 Enquire
- 00RA325
SCREW - M8X20 - BUTTON
From 15MY Structural. Cat A Only 		- 1 Enquire
- GODG4324314BA
Pillar, Centre Body, Outer Rear, RH
Structural. Cat A Only 		- 1 Enquire
- 13A7002CP
INSERT - GAS STRUT
From 15MY Structural. Cat A Only 		- 1 Enquire
- DG43101D06AA
Extension Member, Rear Floor Side Lower, RH
Structural. Cat A Only 		- 1 Enquire
- P08G43C20414AC
Reinforcement, Door Opening Rear, RH
Structural. Cat A Only 		- 1 Enquire
- 670309450
REAR HARNESS
10.5mm Thick 		- A/R Enquire
- 940001780
FRONT EXTERIOR CARBON KIT MC
9.5mm Thick 		- A/R Enquire
- TY63C03408AAW
HDR ASSY COMP
8.5mm Thick 		- A/R Enquire
- SY6YC43720AA
W/STRIP LUGG COMPT
7.5mm Thick 		- A/R Enquire
- AD43F16351BB
Spacer, Latch Striker
6.5mm Thick 		- A/R Enquire
- DG43F16352BB
Spacer, Latch Striker
5.5mm Thick 		- A/R Enquire
- DG43F16353BB
Spacer, Latch Striker
4.5mm Thick 		- A/R Enquire
1 DG43C24313AD
Pillar, Centre Body, LH
Structural. Cat A Only 		- 1 Enquire
2 DG43393126AA
Nutplate Assembly, Striker
Structural. Cat A Only 		- 2 Enquire
3 GODG4324315BA
Pillar, Centre Body, Outer Rear, LH
Structural. Cat A Only 		- 1 Enquire
5 P08G43C20415AC
Reinforcement, Door Opening Rear, LH
Structural. Cat A Only 		- 1 Enquire
6 940001781
FRONT EXTERIOR CARBON KIT MC
11.5mm Thick 		- A/R Enquire
