Front Structure - Front Wing Assembly

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Front Structure - Front Wing Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

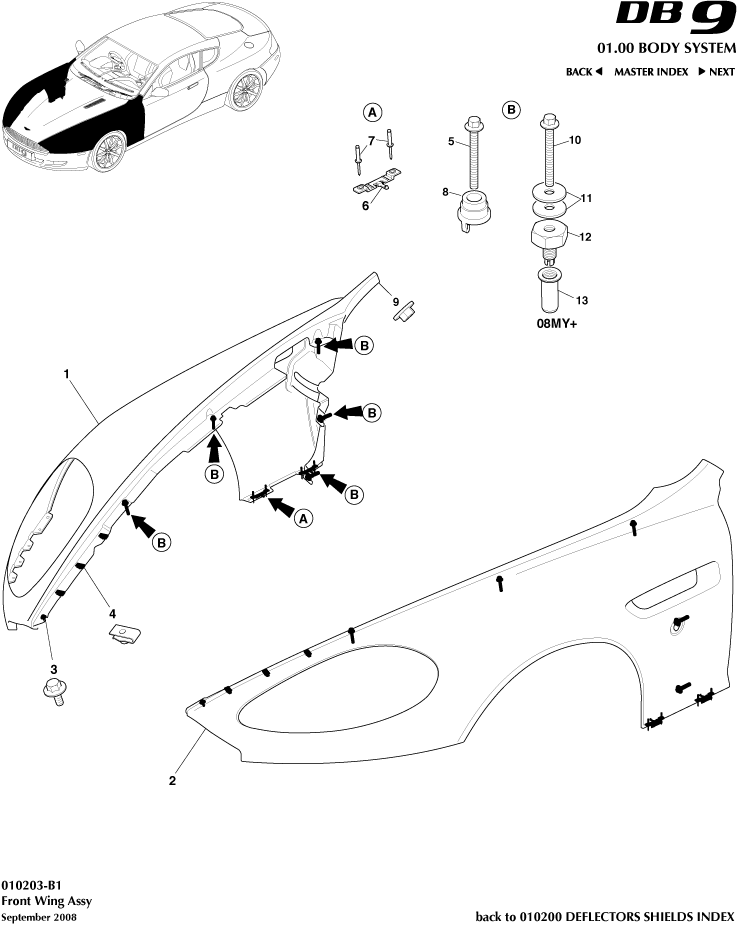

Front Structure - Front Wing Assembly of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 670304738
COMPLETE CROSS MEMBER
- 		- 2 Enquire
1 4G4316005AR
PNL ASY-FRT FNDR RH
- 		- 1 Enquire
2 4G4316006AR
PNL ASY-FRT FNDR LH
- 		- 1 Enquire
3 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20
IN STOCK 		- 12 Enquire
4 703740
NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG
-
IN STOCK 		- 6 Enquire
5 703196PK
BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)
07MY. Pack of 10
IN STOCK 		- 6 Enquire
6 4G43023A50BAPK
EXT FENDER CLIP (5)
Pack of 5 		- 8 Enquire
7 701580PK
Rivet Dome Head (Pack of 20)
Pack of 20
IN STOCK 		- 8 Enquire
8 670300304
PAD
07MY 		- 10 Enquire
9 703612
Nut & Washer, M6, HVAC to XCB
-
IN STOCK 		- 2 Enquire
10 703196PK
BOLT M6 x 55 HEX FLANGE HEAD (PACK 10)
08MY. Pack of 10
IN STOCK 		- 10 Enquire
11 697810PK
WSHR-M6x25 SSBLK(10)
Pack of 10 		- 20 Enquire
12 4G43E826280BAPK
Nut M6- Flexax Tolerance (Pack of 5)
08MY. Pack of 5
IN STOCK 		- 10 Enquire
13 6G3346768AA
RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni
08MY 		- 30 Enquire
