Aston Martin GT DB9 (2004-2017) - Front Structure - Grille Opening Panel

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

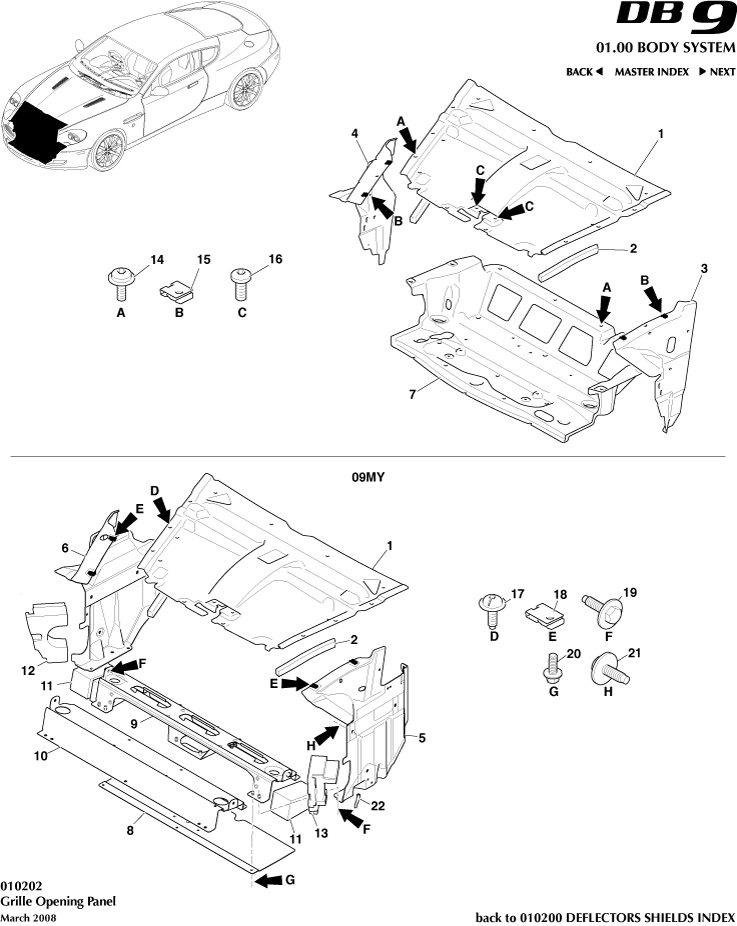

Front Structure - Grille Opening Panel of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D338136AC
Grille Radiator Centre
- 		- 1 Enquire
2 4G43403D62AA
SE UPR PNL VEN AIT
- 		- 2 Enquire
3 4G43F01991AB
PANEL VENT AIR LEFT HAND SIDE
- 		- 1 Enquire
4 4G43F01990AC
PANEL VENT AIR RIGHT SIDE
- 		- 1 Enquire
5 8G43F01991AF
PNL VEN AIR LH
09MY 		- 1 Enquire
6 8G43F01990AF
PNL VEN AIR RH
09MY 		- 1 Enquire
7 4G438052AH
Radiator Support Lower
- 		- 1 Enquire
8 8G432943751AB
Beam, Radiator Support Lower
09MY 		- 1 Enquire
9 8G438052AD
CVR ASY - RAD SUPT LWR
09MY 		- 1 Enquire
10 8G438052BA
CVR ASY - RAD SUPT LWR (MANUAL)
09MY 		- 1 Enquire
11 8D3342761AA
Foam Pad, Cover Assy Radiator Support
09MY 		- 2 Enquire
12 AG43334610AA
BMPR INTF FOAM RH
09MY 		- 1 Enquire
13 AG43334611AA
BMPR INTF FOAM LH
09MY 		- 1 Enquire
14 703156
Screw/Washer M6x18 Chrome Free
- 		- 30 Enquire
15 703740
NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG
- 		- 6 Enquire
16 703156
Screw/Washer M6x18 Chrome Free
- 		- 2 Enquire
17 703743
SCREW &WASHER M6x18
09MY 		- 14 Enquire
18 703740
NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG
09MY 		- 4 Enquire
19 703152PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
09MY. Pack of 10 		- 6 Enquire
20 703729
Screw, M6 x 16, Flange Hex Head
09MY 		- 8 Enquire
21 703139
Screw/Washer M8x20 Chrome Free
09MY 		- 8 Enquire
22 4G43L41041AA
Edge Strip, Black 2 x 40
09MY 		- 1 Enquire
