Aston Martin GT DB9 (2004-2017) - Sound & Heat Control - NVH Pads, Volante

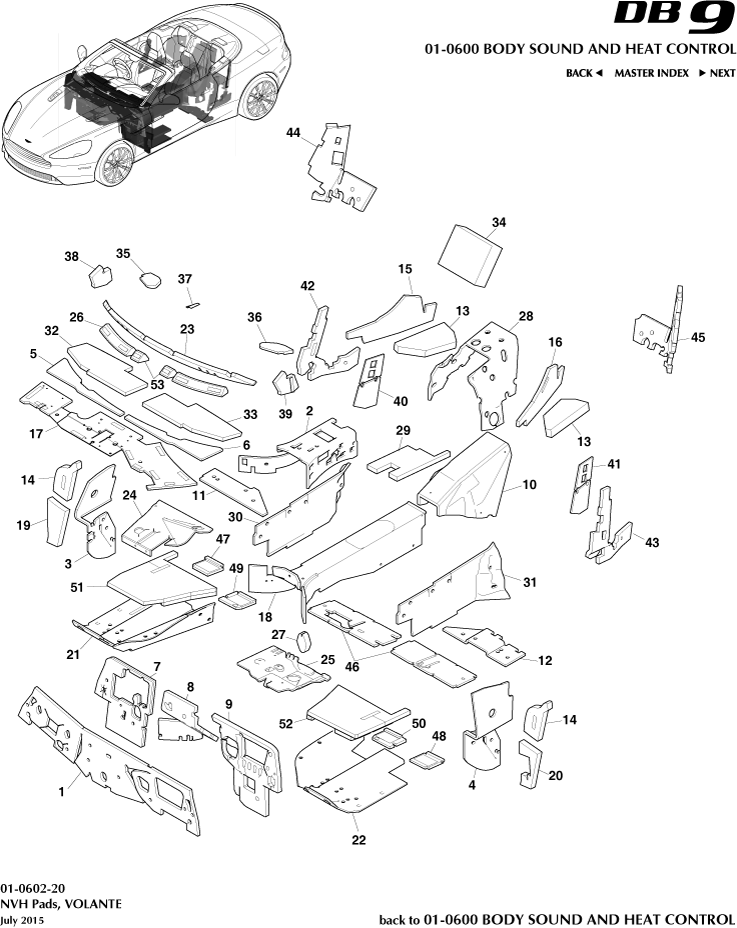

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G33102B00AD	INS ENG HSG SND LHD	6G33102B00AD INS ENG HSG SND LHD LHD	-	1	Enquire
-	ED2311446AC	INS FLR PAN GR SH LV	ED2311446AC INS FLR PAN GR SH LV 14.5MY	-	1	Enquire
-	DD33002K05AC	DASH INR RH LHD	DD33002K05AC DASH INR RH LHD LHD	-	1	Enquire
-	8G43021A59AA	Baffle, Body Front Panel, Centre	8G43021A59AA Baffle, Body Front Panel, Centre LHD	-	1	Enquire
-	DD33015A23AD	DSH INR LH LHD	DD33015A23AD DSH INR LH LHD LHD	-	1	Enquire
-	4G4311455BH	Insulation Assembly, Front Floor Pan Sound, RH, LHD	4G4311455BH Insulation Assembly, Front Floor Pan Sound, RH, LHD LHD	-	1	Enquire
-	4G4311455AH	Insulation Assembly, Front Floor Pan Sound, LH, LHD	4G4311455AH Insulation Assembly, Front Floor Pan Sound, LH, LHD LHD	-	1	Enquire
-	4G4311455BH	Insulation Assembly, Front Floor Pan Sound, RH, LHD	4G4311455BH Insulation Assembly, Front Floor Pan Sound, RH, LHD -	-	1	Enquire
-	4G4311455AH	Insulation Assembly, Front Floor Pan Sound, LH, LHD	4G4311455AH Insulation Assembly, Front Floor Pan Sound, LH, LHD -	-	1	Enquire
1	6G33102B00BD	INS ENG HSG SND RHD	6G33102B00BD INS ENG HSG SND RHD RHD	-	1	Enquire
2	8G4311446AB	Insulation, Sound, Floor Pan Gear Shift Cover	8G4311446AB Insulation, Sound, Floor Pan Gear Shift Cover -	-	1	Enquire
3	8G43310A58AB	Insulation, Body Side Front, RH	8G43310A58AB Insulation, Body Side Front, RH -	-	1	Enquire
4	8G43310A57AC	Insulation, Body Side Front, LH	8G43310A57AC Insulation, Body Side Front, LH -	-	1	Enquire
5	4G4302292AB	Insulation, Sound, Cowl Side Panel Lower, RH	4G4302292AB Insulation, Sound, Cowl Side Panel Lower, RH -	-	1	Enquire
6	4G4302293AB	Insulation, Sound, Cowl Side Panel Lower, LH	4G4302293AB Insulation, Sound, Cowl Side Panel Lower, LH -	-	1	Enquire
7	00RA289	BOLT - BUTTON - FLANGE - M8X35 - 10.9	00RA289 BOLT - BUTTON - FLANGE - M8X35 - 10.9 RHD	-	1	Enquire
8	8G43021A58AB	BAFFLE BODY FRONT PANEL RHD CENTRE	8G43021A58AB BAFFLE BODY FRONT PANEL RHD CENTRE RHD	-	1	Enquire
9	22AB262GP	ASSY BRKT LUGGAGE SUPPORT CTR RH	22AB262GP ASSY BRKT LUGGAGE SUPPORT CTR RH RHD	-	1	Enquire
10	4G437Z309AC	Insulation, Transmission Case Cover	4G437Z309AC Insulation, Transmission Case Cover -	-	1	Enquire
11	4G4311204AA	Insulation, Sound, Rear Floor Pan, RH	4G4311204AA Insulation, Sound, Rear Floor Pan, RH -	-	1	Enquire
12	8G4311205AA	Insulation, Sound, Rear Floor Pan, LH	8G4311205AA Insulation, Sound, Rear Floor Pan, LH -	-	1	Enquire
13	4G43F310A26AA	Insulation, Sound, Quarter I/S Panel	4G43F310A26AA Insulation, Sound, Quarter I/S Panel -	-	2	Enquire
14	DG4328112AA	NVH Foam Pad, Fender Upper	DG4328112AA NVH Foam Pad, Fender Upper -	-	2	Enquire
15	AD33L27746AB	INS QTR PNL FRT SD R	AD33L27746AB INS QTR PNL FRT SD R -	-	1	Enquire
16	AD33L27747AB	INS QTR PNL FRT SD L	AD33L27747AB INS QTR PNL FRT SD L -	-	1	Enquire
17	DD3300152AA	Insulation, Body To Front	DD3300152AA Insulation, Body To Front -	-	1	Enquire
18	4G43114B26AH	Insulation, Tunnel	4G43114B26AH Insulation, Tunnel -	-	1	Enquire
19	DG4328110AA	NVH Foam Pad Assembly, Fender Lower, RH	DG4328110AA NVH Foam Pad Assembly, Fender Lower, RH -	-	1	Enquire
20	DG4328111AA	NVH Foam Pad Assembly, Fender Lower, LH	DG4328111AA NVH Foam Pad Assembly, Fender Lower, LH -	-	1	Enquire
21	4G4354571AF	Baffle, Floor, RH	4G4354571AF Baffle, Floor, RH -	-	1	Enquire
22	4G4354572AE	Baffle, Floor, LH	4G4354572AE Baffle, Floor, LH -	-	1	Enquire
23	13A5840CP	COVER - LUGGAGE BIN TOE	13A5840CP COVER - LUGGAGE BIN TOE -	-	1	Enquire
24	4G4311454BH	Insulation Assembly, Front Floor Pan Sound, RH, RHD	4G4311454BH Insulation Assembly, Front Floor Pan Sound, RH, RHD RHD	-	1	Enquire
25	4G4311454AH	Insulation Assembly, Front Floor Pan Sound, LH, RHD	4G4311454AH Insulation Assembly, Front Floor Pan Sound, LH, RHD RHD	-	1	Enquire
26	22AA048GP	PNL FNDR FRT HEADLAMP MTG RH	22AA048GP PNL FNDR FRT HEADLAMP MTG RH 2x Only When Pedestrian Impact System Fitted	-	3	Enquire
27	8G4304564AA	NVH, Autobox Clutch Pedal	8G4304564AA NVH, Autobox Clutch Pedal -	-	1	Enquire
28	8G435416AE	NVH TNL RR INR	8G435416AE NVH TNL RR INR -	-	1	Enquire
29	6G3313082AA	NVH, Tunnel Top Arm Rest	6G3313082AA NVH, Tunnel Top Arm Rest -	-	1	Enquire
30	8G3324926AB	PAD TUNNEL SIDE RIGHT HAND	8G3324926AB PAD TUNNEL SIDE RIGHT HAND -	-	1	Enquire
31	8G3324927AB	PAD TUNNEL SIDE LEFT HAND	8G3324927AB PAD TUNNEL SIDE LEFT HAND -	-	1	Enquire
32	8G4348182AB	Foam Pad, Under IP, RH	8G4348182AB Foam Pad, Under IP, RH -	-	1	Enquire
33	8G4348181AB	Foam Pad, Under IP, LH	8G4348181AB Foam Pad, Under IP, LH -	-	1	Enquire
34	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH -	-	1	Enquire
35	9G43046B72AA	Insulation, I/ panel radio speaker opening, RH	9G43046B72AA Insulation, I/ panel radio speaker opening, RH Non B&O	-	1	Enquire
36	9G43046B73AA	Insulation, I/ pnl radio speaker opening, LH	9G43046B73AA Insulation, I/ pnl radio speaker opening, LH Non B&O	-	1	Enquire
37	51165B682C7	Trim, USB port	51165B682C7 Trim, USB port Non B&O	-	1	Enquire
38	00RB250	CLIP - BOWDEN CABLE	00RB250 CLIP - BOWDEN CABLE -	-	1	Enquire
40	00RB173	STUD - CLIP - EXPANDING	00RB173 STUD - CLIP - EXPANDING -	-	1	Enquire
41	CG43D1161AC	Insulation, Rear Quarter Trim, LH	CG43D1161AC Insulation, Rear Quarter Trim, LH -	-	1	Enquire
42	AD33L27747AC	REAR 1/4 PANEL CABIN NVH LH	AD33L27747AC REAR 1/4 PANEL CABIN NVH LH -	-	1	Enquire
45	AD33L31181AB	INS RR BLKHD NVH LH	AD33L31181AB INS RR BLKHD NVH LH -	-	1	Enquire
46	4G43111C73AE	Kit, Insulation Assembly, Sound Centre Floor Pan	4G43111C73AE Kit, Insulation Assembly, Sound Centre Floor Pan -	-	1	Enquire
47	6G33114B32AB	Insulation Assembly, Front Floor Pan, RH	6G33114B32AB Insulation Assembly, Front Floor Pan, RH -	-	1	Enquire
48	6G33114B33AB	Insulation Assembly, Front Floor Pan, LH	6G33114B33AB Insulation Assembly, Front Floor Pan, LH -	-	1	Enquire
49	6G33114A42AB	Insulation Assembly, Front Floor Pan, RH	6G33114A42AB Insulation Assembly, Front Floor Pan, RH -	-	1	Enquire
50	6G33114A43AB	Insulation Assembly, Front Floor Pan, LH	6G33114A43AB Insulation Assembly, Front Floor Pan, LH -	-	1	Enquire
51	4G4311454BH	Insulation Assembly, Front Floor Pan Sound, RH, RHD	4G4311454BH Insulation Assembly, Front Floor Pan Sound, RH, RHD -	-	1	Enquire
52	4G4311454AH	Insulation Assembly, Front Floor Pan Sound, LH, RHD	4G4311454AH Insulation Assembly, Front Floor Pan Sound, LH, RHD -	-	1	Enquire
53	RY6315B484BA	REAR BUMPER HARNESS	RY6315B484BA REAR BUMPER HARNESS When Pedestrian Impact System Fitted	-	2	Enquire
