Body Structure - Body Dash and Cowl, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

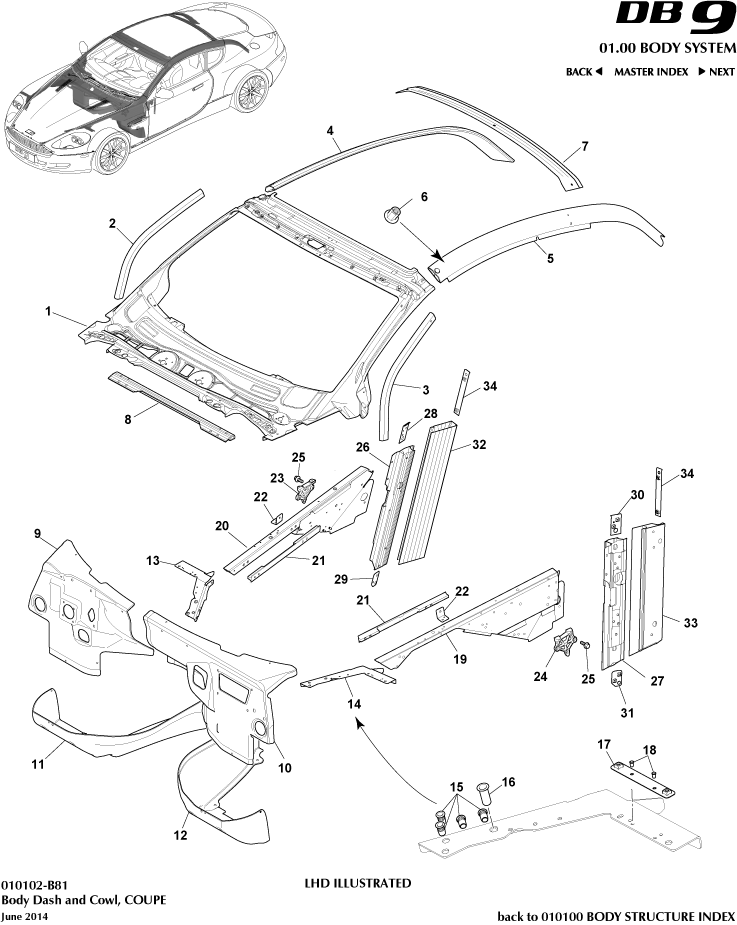

Aston Martin GT DB9 (2004-2017) - Body Structure - Body Dash and Cowl, Coupe

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G43C03014AR	FR ASY W/SHIELD	4G43C03014AR FR ASY W/SHIELD Structural Cat. A only	-	1	Enquire
-	670172022	MINIGONNA SX TROFEO	670172022 MINIGONNA SX TROFEO Structural Cat. A only	-	1	Enquire
-	670173717	PROTEZIONE ANTIRIBALTAMENTO	670173717 PROTEZIONE ANTIRIBALTAMENTO Structural Cat. A only	-	1	Enquire
1	670127691	LH REAR DOOR PANEL BLACK+ROS	670127691 LH REAR DOOR PANEL BLACK+ROS Structural Cat. A only	-	1	Enquire
2	670128304	RH FRONT DOOR PANEL LHD L. B	670128304 RH FRONT DOOR PANEL LHD L. B Structural Cat. A only	-	1	Enquire
3	670146067	FRONT RH DOOR PANEL ASSEMBLY	670146067 FRONT RH DOOR PANEL ASSEMBLY Structural Cat. A only	-	1	Enquire
4	8G43C513A07AB	REINFORCED ROOF SIDE RAIL RH	8G43C513A07AB REINFORCED ROOF SIDE RAIL RH Structural Cat. A only	-	1	Enquire
5	670151640	REMOVABLE CARPETS KIT RHD BL	670151640 REMOVABLE CARPETS KIT RHD BL Structural Cat. A only	-	1	Enquire
6	22AA512GP	SERVICE HATCH RR MACHINED	22AA512GP SERVICE HATCH RR MACHINED Structural Cat. A only	-	1 per rail	Enquire
7	670163752	RIM HELIOS D.IRON R21-10.5J	670163752 RIM HELIOS D.IRON R21-10.5J Structural Cat. A only	-	1	Enquire
8	6G3310414AB	MBR FRT CS AT DH	6G3310414AB MBR FRT CS AT DH Structural Cat. A only	-	1	Enquire
9	670164743	DASHBOARD RHD BLACK+BEIGE	670164743 DASHBOARD RHD BLACK+BEIGE Structural Cat. A only	-	1	Enquire
10	670172023	MINIGONNA DX TROFEO	670172023 MINIGONNA DX TROFEO Structural Cat. A only	-	1	Enquire
11	6G33F01612AB	Panel, dash side, RH	6G33F01612AB Panel, dash side, RH Structural Cat. A only	-	1	Enquire
12	670183240	RHD DASHBOARD ROSSO+AMANN	670183240 RHD DASHBOARD ROSSO+AMANN Structural Cat. A only	-	1	Enquire
13	8G4316430AA	REINF HOOD STRIKER PLATE RH	8G4316430AA REINF HOOD STRIKER PLATE RH Structural Cat. A only	-	1	Enquire
14	8G4316431AA	REINF HOOD STRIKER PLATE LH	8G4316431AA REINF HOOD STRIKER PLATE LH Structural Cat. A only	-	1	Enquire
15	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni Structural Cat. A only	-	4 per plate	Enquire
16	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni Structural Cat. A only	-	1 per plate	Enquire
17	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket Structural Cat. A only	-	2	Enquire
18	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 Structural Cat. A only	-	2 per plate	Enquire
19	4G432010882	SUPPORT ARM ASSY- FRT WING LH-DB9	4G432010882 SUPPORT ARM ASSY- FRT WING LH-DB9 Structural Cat. A only	-	1	Enquire
20	4G432010881	SUPPORT ARM ASSY- FRT WING RH-DB9	4G432010881 SUPPORT ARM ASSY- FRT WING RH-DB9 Structural Cat. A only	-	1	Enquire
21	670194273	DOOR MOULDING	670194273 DOOR MOULDING Structural Cat. A only	-	2	Enquire
22	6G33C18178AB	Bracket, Gas Damper Mounting	6G33C18178AB Bracket, Gas Damper Mounting Structural Cat. A only	-	2	Enquire
23	GO8G4316A681AB	REINF HOOD HNGE BODY	GO8G4316A681AB REINF HOOD HNGE BODY -	-	1	Enquire
24	GO8G4316A682AB	RH REINF HOOD HINGE ON BODY LH	GO8G4316A682AB RH REINF HOOD HINGE ON BODY LH -	-	1	Enquire
25	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm -	-	3 per hinge	Enquire
26	P06G33F02660BA	PLR FRT BDY LWR FRT	P06G33F02660BA PLR FRT BDY LWR FRT Structural Cat. A only	-	1	Enquire
27	P06G33F02661BA	PLR FRT BDY LWR FRT	P06G33F02661BA PLR FRT BDY LWR FRT Structural Cat. A only	-	1	Enquire
28	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	6G3371490AA Nutplate, A Post Hinge, Upper, RH Structural Cat. A only	-	1	Enquire
29	6G3315110AA	NUTPLATE A POST LWR	6G3315110AA NUTPLATE A POST LWR Structural Cat. A only	-	1	Enquire
30	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	6G3394545AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A only	-	1	Enquire
31	6G3315111AA	Nutplate, A Post Hinge, Upper, LH	6G3315111AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A only	-	1	Enquire
32	P06G33F02662BA	EXTRUSION FRONT BODY PILLAR LOWER RH	P06G33F02662BA EXTRUSION FRONT BODY PILLAR LOWER RH Structural Cat. A only	-	1	Enquire
33	P06G33F02663BA	EXT FRT BDY PLR LWR	P06G33F02663BA EXT FRT BDY PLR LWR Structural Cat. A only	-	1	Enquire
34	6G33486226AA	Nutplate, M8, IP beam	6G33486226AA Nutplate, M8, IP beam Structural Cat. A only	-	2	Enquire
