Occupant Restraining Devices - Front Seat Belts

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Occupant Restraining Devices - Front Seat Belts

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

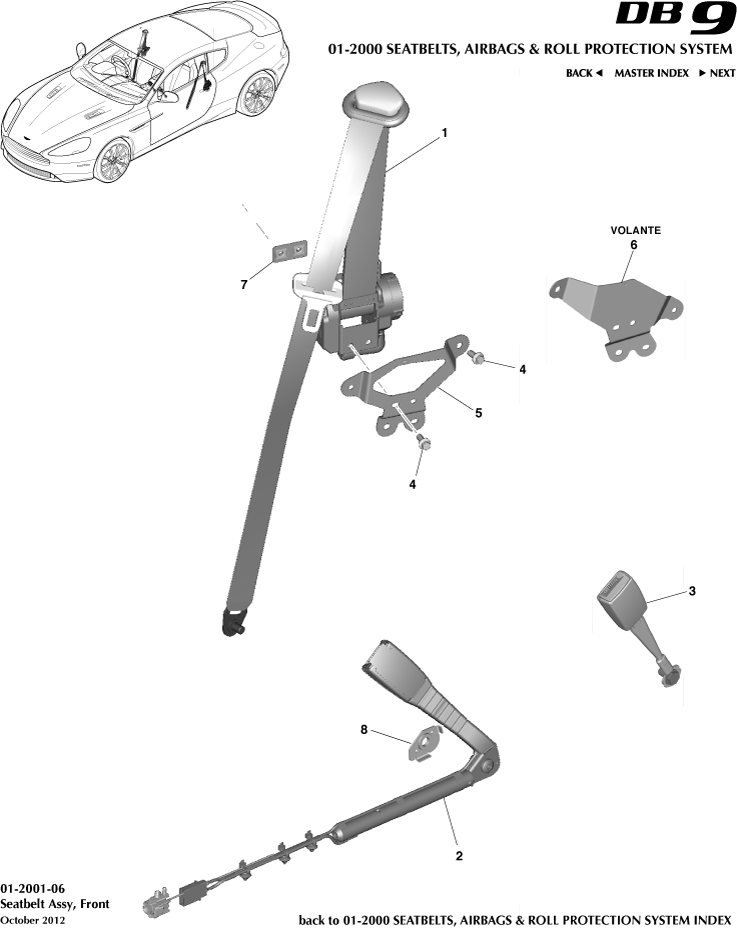

Occupant Restraining Devices - Front Seat Belts of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- CD33611B69ABW
BELT RETR ASY FRT ST
Warm Charcoal 		- 1 Enquire
- CD33611B70BBW
BLT RETR ASY FRT ST
Flint 		- 1 Enquire
- CD33611B69BBW
BELT RETR ASY FRT ST
Flint 		- 1 Enquire
- CD33611B70DBW
BELT RETR ASY FRT ST
Blue 		- 1 Enquire
- CD33611B69DBW
BELT RETR ASY FRT ST
Blue 		- 1 Enquire
- DD33610E55AA
Buckle, Pretensioner Seat Belt, LH
- 		- 1 Enquire
- CD3360259AB
Bracket, Front Seat Belt Reinforcement, LH
Coupe 		- 1 Enquire
- DG4360259BB
Bracket, Front Seat Belt Mounting, LH
Volante 		- 1 Enquire
- DD33610E57AA
Bracket, Pretensioner Seat Belt Buckle, LH
- 		- 1 Enquire
1 CD33611B70ABW
BLT RETR ASY FRT ST
Warm Charcoal 		- 1 Enquire
2 DD33610E54AA
Buckle, Pretensioner Seat Belt, RH
- 		- 1 Enquire
3 4G43613K22BD
Buckle Assembly, Front Seatbelt
Lightweight Seats Only 		- 2 Enquire
4 703121
Screw, M8 x 25, Hex Flange Head
- 		- 12 Enquire
5 CD3360258AB
Bracket, Front Seat Belt Reinforcement, RH
Coupe 		- 1 Enquire
6 DG4360258BB
Bracket, Front Seat Belt Mounting, RH
Volante 		- 1 Enquire
7 DG43V248A66AA
Plate, Cage Nut
- 		- 2 Enquire
8 DD33610E56AA
Bracket, Pretensioner Seat Belt Buckle, RH
- 		- 1 Enquire
