Interior Trim & Ornamentation - Parcel Shelf Trim Panel, 2+0 Coupe

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Interior Trim & Ornamentation - Parcel Shelf Trim Panel, 2+0 Coupe

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

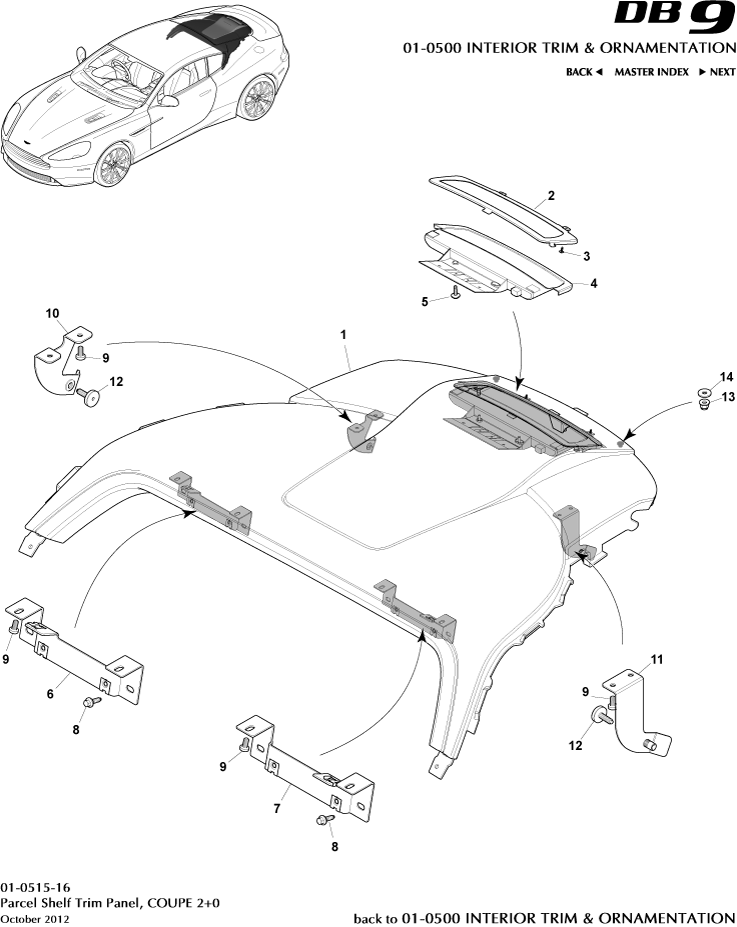

Interior Trim & Ornamentation - Parcel Shelf Trim Panel, 2+0 Coupe of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D3346668AEW
Panel Assy, Package Tray
- 		- 1 Enquire
2 4G4313B477AC
Bezel, Centre High Mounted Stop Lamp (CHMSL)
- 		- 1 Enquire
3 697477
SCREW No6 x 9.5 FLANGED AB S.T
- 		- 2 Enquire
4 8D3313N408AC
Lamp Assy, Centre High Mounted Stop Lamp (CHMSL), Clear
- 		- 1 Enquire
5 703174
Bolt, M4, Pan Head
- 		- 2 Enquire
6 8D33313A66AC
Bracket, Package Tray, RH
- 		- 1 Enquire
7 8D33313A67AC
Bracket, Package Tray, LH
- 		- 1 Enquire
8 703026
Screw, M5 x 16, Hex Flange Head
-
IN STOCK 		- 4 Enquire
9 6G3346058AA
Screw, M5 x 10 Pan Head Flange Torx
- 		- 8 Enquire
10 8D33313A68AA
Package Tray Bracket, RH
- 		- 1 Enquire
11 8D33313A69AA
Package Tray Bracket, LH
- 		- 1 Enquire
12 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
20 Per Pack
IN STOCK 		- 2 Enquire
13 703165
NUT M5 HEX FLG PLAS CHROME FREE
-
IN STOCK 		- 2 Enquire
14 697528
WASHER M5 LARGE OD
-
IN STOCK 		- 2 Enquire
