Aston Martin GT DB9 (2004-2017) - Body Structure - Anciliary Parts, Volante, page 2

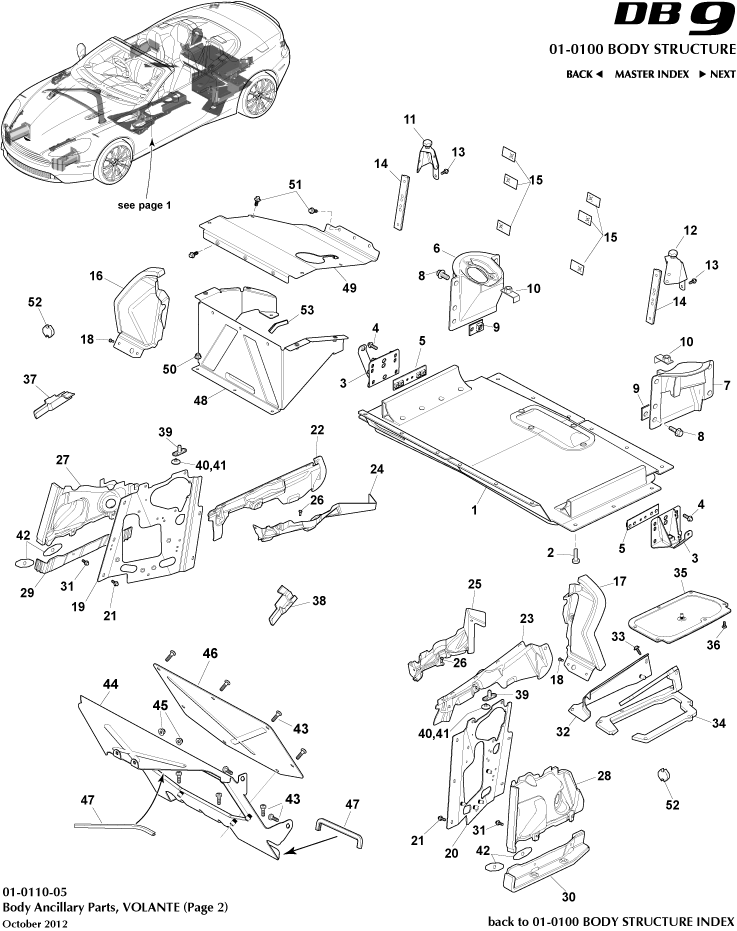

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G43111C60GF	Panel, Dummy Floor Front, LHD	9G43111C60GF Panel, Dummy Floor Front, LHD -	-	1	Enquire
-	ED3367518AA	Panel, Rear Seat Heel Board, RH	ED3367518AA Panel, Rear Seat Heel Board, RH 14.5MY	-	1	Enquire
-	ED3310N660AA	Panel, Battery Cover	ED3310N660AA Panel, Battery Cover 14.5MY	-	1	Enquire
-	AD43F16347BB	SPACER LATCH STRIKER	AD43F16347BB SPACER LATCH STRIKER 10.5mm	-	A/R	Enquire
-	AD43F16348BB	SPACER LATCH STRIKER	AD43F16348BB SPACER LATCH STRIKER 9.5mm	-	A/R	Enquire
-	AD43F16349BB	SPACER LATCH STRIKER	AD43F16349BB SPACER LATCH STRIKER 8.5mm	-	A/R	Enquire
-	AD43F16350BB	Spacer	AD43F16350BB Spacer 7.5mm	-	A/R	Enquire
-	AD43F16351BB	Spacer, Latch Striker	AD43F16351BB Spacer, Latch Striker 6.5mm	-	A/R	Enquire
-	DG43F16352BB	Spacer, Latch Striker	DG43F16352BB Spacer, Latch Striker 5.5mm	-	A/R	Enquire
-	DG43F16353BB	Spacer, Latch Striker	DG43F16353BB Spacer, Latch Striker 4.5mm	-	A/R	Enquire
1	22AA129GP	SERVICE HATCH FOAM SEAL RR	22AA129GP SERVICE HATCH FOAM SEAL RR -	-	1	Enquire
2	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	18	Enquire
3	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	6G335D022AD BRACKET REAR SUB FRAME STABILISER -	-	2	Enquire
4	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder -	-	8	Enquire
5	6G335N394AB	Nutplate Bracket, Rear Subframe Stabiliser, Upper	6G335N394AB Nutplate Bracket, Rear Subframe Stabiliser, Upper -	-	2	Enquire
6	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	6G3318A000AD Member, Rear Shock Absorber Mounting, RH -	-	1	Enquire
7	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	6G3318A001AD Member, Rear Shock Absorber Mounting, LH -	-	1	Enquire
8	W500443S442	Screw, M12 x 35, Hex Flange Head	W500443S442 Screw, M12 x 35, Hex Flange Head 4 per Member	-	8	Enquire
9	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front -	-	2	Enquire
10	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14 -	-	2	Enquire
11	4G434S018AA	Bracket, Tonneau Cover Bump Stop Mounting, RH	4G434S018AA Bracket, Tonneau Cover Bump Stop Mounting, RH -	-	1	Enquire
12	4G434S017AA	Bracket, Tonneau Cover Bump Stop Mounting, LH	4G434S017AA Bracket, Tonneau Cover Bump Stop Mounting, LH -	-	1	Enquire
13	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 3 per Bracket	-	6	Enquire
14	4G43L24556AB	Nutplate, Pillar Centre Body Inner Rear	4G43L24556AB Nutplate, Pillar Centre Body Inner Rear -	-	2	Enquire
15	7G432943707AA	Plate, Weld Nut, Centre	7G432943707AA Plate, Weld Nut, Centre -	-	6	Enquire
16	9G4328114AA	Baffle, Quarter Panel At Wheel, Housing Upper, RH	9G4328114AA Baffle, Quarter Panel At Wheel, Housing Upper, RH Structural. Cat A Only	-	1	Enquire
17	9G4328115AA	Baffle, Quarter Panel At Wheel, Housing Upper, LH	9G4328115AA Baffle, Quarter Panel At Wheel, Housing Upper, LH Structural. Cat A Only	-	1	Enquire
18	703704	Stud, M8 x 13.6+16, Hex Head	703704 Stud, M8 x 13.6+16, Hex Head 3 per Panel	-	6	Enquire
19	ED33L04702AB	Panel, Window Regulator Opening Cover, RH	ED33L04702AB Panel, Window Regulator Opening Cover, RH Structural. Cat A Only	-	1	Enquire
20	ED33L04703AB	Panel, Window Regulator Opening Cover, LH	ED33L04703AB Panel, Window Regulator Opening Cover, LH Structural. Cat A Only	-	1	Enquire
21	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 10 per Panel	-	20	Enquire
22	4G43A410K24AH	Panel, Rear Body Pillar Closing, RH	4G43A410K24AH Panel, Rear Body Pillar Closing, RH Structural. Cat A Only	-	1	Enquire
23	4G43A410K25AH	Panel, Rear Body Pillar Closing, LH	4G43A410K25AH Panel, Rear Body Pillar Closing, LH Structural. Cat A Only	-	1	Enquire
24	9G435422AB	Se bearing casting, rear quarter, RH	9G435422AB Se bearing casting, rear quarter, RH Structural. Cat A Only	-	1	Enquire
25	9G435423AB	Se bearing casting, rear quarter, LH	9G435423AB Se bearing casting, rear quarter, LH Structural. Cat A Only	-	1	Enquire
26	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 3 per Panel	-	6	Enquire
27	9G4328034AA	RR QTR SHEDDER PNL	9G4328034AA RR QTR SHEDDER PNL Structural. Cat A Only	-	1	Enquire
28	9G4328035AA	RR QTR SHEDDER PNL	9G4328035AA RR QTR SHEDDER PNL Structural. Cat A Only	-	1	Enquire
29	KY9Y53316BCS	HOSE ASSY RR WING	KY9Y53316BCS HOSE ASSY RR WING Structural. Cat A Only	-	1	Enquire
30	SY7Y14A301AB	REAR BCM BRACKET	SY7Y14A301AB REAR BCM BRACKET Structural. Cat A Only	-	1	Enquire
31	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 2 per Bracket	-	4	Enquire
32	9G43507A62AC	TONNEAU PUMP COVER PLATE LEFT HAND SIDE	9G43507A62AC TONNEAU PUMP COVER PLATE LEFT HAND SIDE -	-	1	Enquire
33	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10	-	3	Enquire
34	9G43P8K141AB	Gasket, Tonneau Pump Closing Panel	9G43P8K141AB Gasket, Tonneau Pump Closing Panel -	-	1	Enquire
35	9G43507A63AB	Closing plate assy, pump	9G43507A63AB Closing plate assy, pump -	-	1	Enquire
36	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE -	-	6	Enquire
37	4G43L025C50AB	Trough, Front Body Pillar Upper, RH	4G43L025C50AB Trough, Front Body Pillar Upper, RH -	-	1	Enquire
38	4G43L025C51AB	Trough, Front Body Pillar Upper, LH	4G43L025C51AB Trough, Front Body Pillar Upper, LH -	-	1	Enquire
39	4G43L243A70AA	Alignment Pin, Main Bearing Bracket	4G43L243A70AA Alignment Pin, Main Bearing Bracket -	-	2	Enquire
40	697810PK	WSHR-M6x25 SSBLK(10)	697810PK WSHR-M6x25 SSBLK(10) 2 per Pin. Pack of 10	-	4	Enquire
41	703266	Screw M6 x 10 Pan Head Torx	703266 Screw M6 x 10 Pan Head Torx 2 per Pin	-	4	Enquire
42	4G4314A573AA	Plate Assembly, Window Regulator Rear Switch Cover	4G4314A573AA Plate Assembly, Window Regulator Rear Switch Cover 2 per Regulator	-	4	Enquire
43	W505534S309	Screw, M6 x 16 Pan Head	W505534S309 Screw, M6 x 16 Pan Head -	-	13	Enquire
45	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE -	-	2	Enquire
46	4G43111B48AB	Panel, Dummy Floor Cover, Front	4G43111B48AB Panel, Dummy Floor Cover, Front -	-	1	Enquire
47	61315A9D334	Switch, trailer coupling	61315A9D334 Switch, trailer coupling 170mm Top, 180mm Bottom	-	A/R	Enquire
48	CD3367518AB	Panel, Rear Seat Heel Board, RH	CD3367518AB Panel, Rear Seat Heel Board, RH -	-	1	Enquire
49	CD3310N660AB	Panel, Battery Cover	CD3310N660AB Panel, Battery Cover -	-	1	Enquire
50	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking -	-	3	Enquire
51	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	12	Enquire
52	AD43F16346BB	SPACER LATCH STRIKER	AD43F16346BB SPACER LATCH STRIKER 11.5mm	-	A/R	Enquire
53	4G4318K261AB	STP-DCT PROT	4G4318K261AB STP-DCT PROT -	-	1	Enquire
