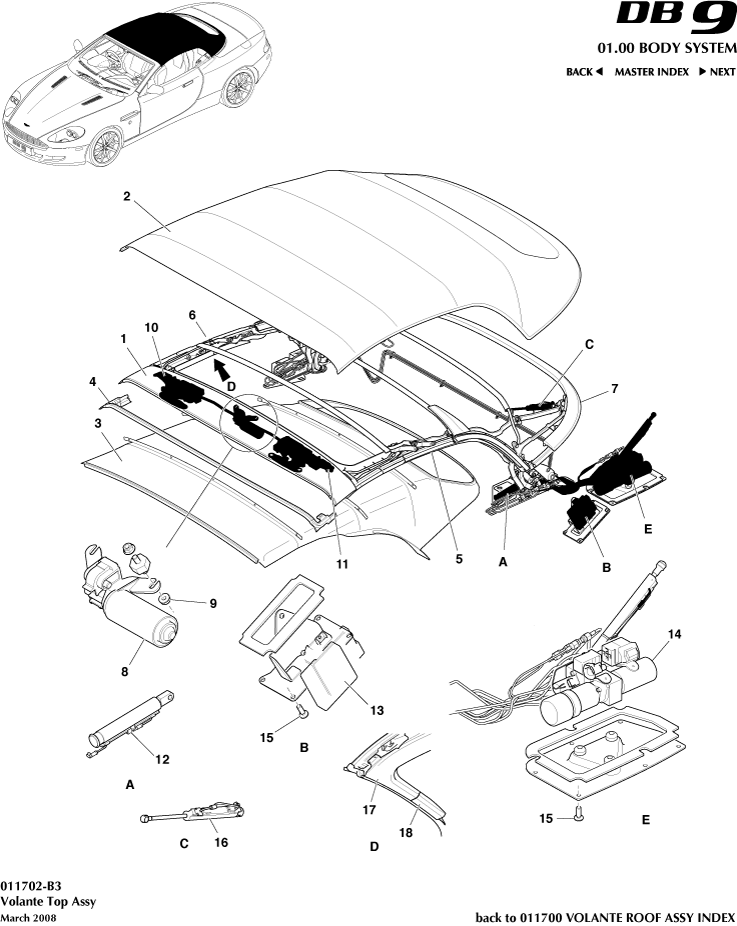

Aston Martin GT DB9 (2004-2017) - Volante Roof - Volante Roof Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4376501B00AG	TOP ASSY FOLDING	4G4376501B00AG TOP ASSY FOLDING 07MY	-	1	Enquire
-	670319746	CAMERA SUPPORT	670319746 CAMERA SUPPORT 08MY	-	1	Enquire
-	ED3376501B00CA	TOP ASSY FOLDING	ED3376501B00CA TOP ASSY FOLDING -	-	1	Enquire
-	670314841	LH FRONT MOULDING	670314841 LH FRONT MOULDING 09MY	-	1	Enquire
-	4G4370351BA	CPY CVR CG ATL BLUE	4G4370351BA CPY CVR CG ATL BLUE Atlantic Blue	-	1	Enquire
-	4G4370351CA	CPY CVR CG JAVA KIT	4G4370351CA CPY CVR CG JAVA KIT Java/ Sandstone	-	1	Enquire
-	4G4370351DA	CPY CVR CG W GREEN K	4G4370351DA CPY CVR CG W GREEN K Westminster Green	-	1	Enquire
-	4G4370351EA	CPY CVR CG T GRY KIT	4G4370351EA CPY CVR CG T GRY KIT Titan Grey	-	1	Enquire
-	4G4370351FA	CPY CVR CG BURG KIT	4G4370351FA CPY CVR CG BURG KIT Burgundy	-	1	Enquire
-	9G4370351GA	CANOPY COVER CG SINGED BROWN KIT	9G4370351GA CANOPY COVER CG SINGED BROWN KIT Singed Brown / Bitter Chocolate	-	1	Enquire
-	9G4370351HA	CPY CVR CG GREN RED	9G4370351HA CPY CVR CG GREN RED Grenadine Red	-	1	Enquire
-	4G4374480AA	Rivet, Blind	4G4374480AA Rivet, Blind Per canopy cover kit	-	8	Enquire
-	4G431005038AA	SPRING CLIP	4G431005038AA SPRING CLIP Per canopy cover kit	-	4	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass Per canopy cover kit	-	2	Enquire
-	9G4370352AB	Inner Lining, Obsidian Black	9G4370352AB Inner Lining, Obsidian Black Obsidian Black, 09MY	-	1	Enquire
-	4G4370352BA	INNER LINING CG IVORY	4G4370352BA INNER LINING CG IVORY Ivory	-	1	Enquire
-	9G4370352BB	INNER LINING CG IVORY	9G4370352BB INNER LINING CG IVORY Ivory, 09MY	-	1	Enquire
-	4G4370352CA	INNER LINING CG MOONSH	4G4370352CA INNER LINING CG MOONSH Moonshadow	-	1	Enquire
-	9G4370352CB	INNER LINING CG MOON SHADOW	9G4370352CB INNER LINING CG MOON SHADOW Moonshadow, 09	-	1	Enquire
-	4G4370352DA	INNER LINING CG TAILOR GR	4G4370352DA INNER LINING CG TAILOR GR Tailors Grey	-	1	Enquire
-	9G4370352DB	INNER LINING CG TAILORS GREY	9G4370352DB INNER LINING CG TAILORS GREY Tailors Grey, 09MY	-	1	Enquire
-	9G4370352EB	Inner Lining, New Light Tan	9G4370352EB Inner Lining, New Light Tan Tan 09MY	-	1	Enquire
-	4G43L51338AA	W/STRIP ASSY F/TOP	4G43L51338AA W/STRIP ASSY F/TOP per kit	-	1	Enquire
-	4G4378380AA	SELF CUTTING SCREW FH	4G4378380AA SELF CUTTING SCREW FH per kit	-	2	Enquire
-	4G431004355AA	SELF CUTTING SCREW FH	4G431004355AA SELF CUTTING SCREW FH per kit	-	8	Enquire
-	4G431001991AA	Nut & Washer, M5	4G431001991AA Nut & Washer, M5 per kit	-	4	Enquire
-	4G4375999AA	SHIM WASHER SEAL CARRIER	4G4375999AA SHIM WASHER SEAL CARRIER per kit	-	6	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass Part of 4G43-L51210-AA	-	2	Enquire
-	4G43L51339BA	W/STRIP ASSY F/TOP	4G43L51339BA W/STRIP ASSY F/TOP per kit	-	1	Enquire
-	4G4375999AA	SHIM WASHER SEAL CARRIER	4G4375999AA SHIM WASHER SEAL CARRIER per kit	-	6	Enquire
-	4G431001991AA	Nut & Washer, M5	4G431001991AA Nut & Washer, M5 per kit	-	4	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	4G43L51338BA	W/STRIP ASSY F/TOP	4G43L51338BA W/STRIP ASSY F/TOP per kit	-	1	Enquire
-	4G4375999AA	SHIM WASHER SEAL CARRIER	4G4375999AA SHIM WASHER SEAL CARRIER per kit	-	6	Enquire
-	4G431001991AA	Nut & Washer, M5	4G431001991AA Nut & Washer, M5 per kit	-	4	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	670126661	LH FRONT DOOR PANEL LHD BLAC	670126661 LH FRONT DOOR PANEL LHD BLAC Tension Bow	-	1	Enquire
-	4G4374480AA	Rivet, Blind	4G4374480AA Rivet, Blind Part of 4G43-L51230-AA	-	8	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	23	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	2	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	2	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass per kit	-	1	Enquire
-	4G4350639AC	MAIN HYDRAULIC CYLINDER LEFT HAND IN STOCK	4G4350639AC MAIN HYDRAULIC CYLINDER LEFT HAND Main Actuator IN STOCK	-	2	Enquire
-	9G4353390AB	HYDRAULIC MAIN CYLINDER RIGHT HAND	9G4353390AB HYDRAULIC MAIN CYLINDER RIGHT HAND NSS part of 4G43-9G803-AD	-	1	Enquire
-	9G4353391AB	Hydraulic Hose, Main Cylinder, LH	9G4353391AB Hydraulic Hose, Main Cylinder, LH NSS part of 4G43-9G803-AD	-	1	Enquire
-	4G43539A79AA	Cylinder, Tension Bow, LH	4G43539A79AA Cylinder, Tension Bow, LH Main Tensbow	-	1	Enquire
-	4G4303508BA	TRM CVR FRT HDR IVRY	4G4303508BA TRM CVR FRT HDR IVRY Ivory	-	1	Enquire
-	4G4303508CA	TRM CVR FRT HDR MOON	4G4303508CA TRM CVR FRT HDR MOON Moonshadow	-	1	Enquire
-	4G4303508DA	TRM CVR FRT HDR TAIL	4G4303508DA TRM CVR FRT HDR TAIL Tailor Grey	-	1	Enquire
-	4G4303515AA	TRIM COVER CTRL 2 LH BLACK	4G4303515AA TRIM COVER CTRL 2 LH BLACK Black	-	1	Enquire
-	4G4303514BA	TRIM COVER CTRL 2 RH IVORY	4G4303514BA TRIM COVER CTRL 2 RH IVORY Ivory	-	1	Enquire
-	4G4303515BA	TRIM COVER CTRL 2 LH IVORY	4G4303515BA TRIM COVER CTRL 2 LH IVORY Ivory	-	1	Enquire
-	4G4303514CA	TRIM COVER CTRL 2 RH MOONSH	4G4303514CA TRIM COVER CTRL 2 RH MOONSH Moonshadow	-	1	Enquire
-	4G4303515CA	TRIM COVER CTRL 2 LH MOONSH	4G4303515CA TRIM COVER CTRL 2 LH MOONSH Moonshadow	-	1	Enquire
-	4G4303514DA	TRIM COVER CTRL 2 RH TAILOR GR	4G4303514DA TRIM COVER CTRL 2 RH TAILOR GR Tailor Grey	-	1	Enquire
-	4G4303515DA	TRIM COVER CTRL 2 LH TAILOR GR	4G4303515DA TRIM COVER CTRL 2 LH TAILOR GR Tailor Grey	-	1	Enquire
-	4G431003889AA	Screw, Trim Cover Bracket	4G431003889AA Screw, Trim Cover Bracket -	-	16	Enquire
-	4G43515A50AA	Bracket, Trim Cover	4G43515A50AA Bracket, Trim Cover -	-	8	Enquire
-	4G4368326AA	Screw, M5, Trim Cover	4G4368326AA Screw, M5, Trim Cover -	-	4	Enquire
-	4G43F502D41AA	TENSION BELT CG LH	4G43F502D41AA TENSION BELT CG LH -	-	1	Enquire
-	9G43F502D41AA	Belt, Tension CG LH, includes control strap	9G43F502D41AA Belt, Tension CG LH, includes control strap 09MY	-	1	Enquire
-	4G43F502D42AA	TENSION BELT CG RH	4G43F502D42AA TENSION BELT CG RH -	-	1	Enquire
-	9G43F502D42AA	Belt, Tension CG RH, includes control strap	9G43F502D42AA Belt, Tension CG RH, includes control strap 09MY	-	1	Enquire
-	4G43A502D41AA	TENSION CABLE CG	4G43A502D41AA TENSION CABLE CG -	-	2	Enquire
-	4G4310D916AA	Control Strap, NSS part of tension belt	4G4310D916AA Control Strap, NSS part of tension belt -	-	2	Enquire
-	4G431012525AA	Flex Shaft, LH	4G431012525AA Flex Shaft, LH -	-	1	Enquire
-	4G431012524AA	Flex Shaft, RH	4G431012524AA Flex Shaft, RH -	-	1	Enquire
-	4G4369832AA	HEXAGON NUT M6	4G4369832AA HEXAGON NUT M6 -	-	6	Enquire
-	4G431004048AA	Screw, M6, Pan Head	4G431004048AA Screw, M6, Pan Head -	-	2	Enquire
-	4G431013271AA	SCREW PIVOT HOOK	4G431013271AA SCREW PIVOT HOOK -	-	1	Enquire
-	4G4350641AA	OVER CENTER PIN	4G4350641AA OVER CENTER PIN -	-	1	Enquire
-	4G431013272AA	WHITE CLIPS	4G431013272AA WHITE CLIPS -	-	6	Enquire
-	4G431016033AA	Screw, Self Cutting	4G431016033AA Screw, Self Cutting -	-	8	Enquire
-	4G431003920AA	Screw, Self Cutting	4G431003920AA Screw, Self Cutting -	-	2	Enquire
-	4G431005038AA	SPRING CLIP	4G431005038AA SPRING CLIP -	-	4	Enquire
-	4G43765010AD	STRIKER HEADER RH	4G43765010AD STRIKER HEADER RH -	-	1	Enquire
-	4G43765011AC	STRIKER HEADER LH	4G43765011AC STRIKER HEADER LH -	-	1	Enquire
-	4G43765013AD	LATCH BRKT HARNESS	4G43765013AD LATCH BRKT HARNESS -	-	1	Enquire
-	4G439310614	HEADER TRIM KIT DB9 VOLANTE-IVORY	4G439310614 HEADER TRIM KIT DB9 VOLANTE-IVORY Ivory	-	1	Enquire
-	4G439310615	HEADER TRIM KIT DB9 VOLANTE MOONSHADOW	4G439310615 HEADER TRIM KIT DB9 VOLANTE MOONSHADOW Moonshadow	-	1	Enquire
-	4G439310616	HEADER TRIM KIT DB9 VOLANTE TAILORS GREY	4G439310616 HEADER TRIM KIT DB9 VOLANTE TAILORS GREY Grey	-	1	Enquire
-	4G439310617	HEADER TRIM KIT DB9 VOLANTE-BLACK	4G439310617 HEADER TRIM KIT DB9 VOLANTE-BLACK Black	-	1	Enquire
-	4G433710685	Harness, Roof Hydraulics, LH	4G433710685 Harness, Roof Hydraulics, LH -	-	1	Enquire
-	4G433710686	Harness, Roof Hydraulics, RH	4G433710686 Harness, Roof Hydraulics, RH -	-	1	Enquire
-	4G439310506	ARAL VITAMOL ZH-M (64037) HOOD FLUID 1ltr PLASTIC BOTTLE	4G439310506 ARAL VITAMOL ZH-M (64037) HOOD FLUID 1ltr PLASTIC BOTTLE -	-	-	Enquire
1	670316151	PILLAR COVER BLACK	670316151 PILLAR COVER BLACK -	-	1	Enquire
2	9G4370351AA	CANOPY COVER CG BLACK KIT	9G4370351AA CANOPY COVER CG BLACK KIT Black	-	1	Enquire
3	4G4370352AA	INNER LINING CG OBSIDIAN	4G4370352AA INNER LINING CG OBSIDIAN Obsidian Black	-	1	Enquire
4	4G43L51210AA	FRT SL SPR PRT ASY K	4G43L51210AA FRT SL SPR PRT ASY K -	-	1	Enquire
5	4G43L51220AA	MIDDLE SEAL SPARE PART LH ASSY KIT	4G43L51220AA MIDDLE SEAL SPARE PART LH ASSY KIT -	-	1	Enquire
6	4G43L51221AA	MIDDLE SEAL SPARE PART RH ASSY KID	4G43L51221AA MIDDLE SEAL SPARE PART RH ASSY KID per kit	-	1	Enquire
7	4G43L51230AA	RR SL SPR PRT ASY KT	4G43L51230AA RR SL SPR PRT ASY KT	-	1	Enquire
8	4G43L51240AA	CONVERTIBLE ROOF LATCH MOTOR KIT IN STOCK	4G43L51240AA CONVERTIBLE ROOF LATCH MOTOR KIT - IN STOCK	-	1	Enquire
9	4G4369832AA	HEXAGON NUT M6	4G4369832AA HEXAGON NUT M6 per kit	-	8	Enquire
10	4G43L51270AA	FULLY AUTOMOTIVE LATCHING RH KIT	4G43L51270AA FULLY AUTOMOTIVE LATCHING RH KIT -	-	1	Enquire
11	4G43L51260AA	FULLY AUTOMATIC LATCHING LH KIT	4G43L51260AA FULLY AUTOMATIC LATCHING LH KIT per kit	-	1	Enquire
12	4G4350638AB	MAIN HYDRAULIC CYLINDER RIGHT HAND IN STOCK	4G4350638AB MAIN HYDRAULIC CYLINDER RIGHT HAND Main Actuator IN STOCK	-	2	Enquire
13	9G43L53085AD	CRM BKRT ASSY	9G43L53085AD CRM BKRT ASSY -	-	1	Enquire
14	4G439G803AD	PUMP ASSY ROOF HYDRAULIC	4G439G803AD PUMP ASSY ROOF HYDRAULIC -	-	1	Enquire
15	702637	SCREW M6X20 SKT HD	702637 SCREW M6X20 SKT HD -	-	9	Enquire
16	4G43539A78AA	Cylinder, Tension Bow, RH	4G43539A78AA Cylinder, Tension Bow, RH Main Tensbow	-	1	Enquire
17	4G4303508AA	TRM CVR FRT HDR BLCK	4G4303508AA TRM CVR FRT HDR BLCK Black	-	1	Enquire
18	4G4303514AA	TRIM COVER CTRL 2 RH BLACK	4G4303514AA TRIM COVER CTRL 2 RH BLACK Black	-	1	Enquire
