Front Structure - Front Wheel Arches

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Front Structure - Front Wheel Arches

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

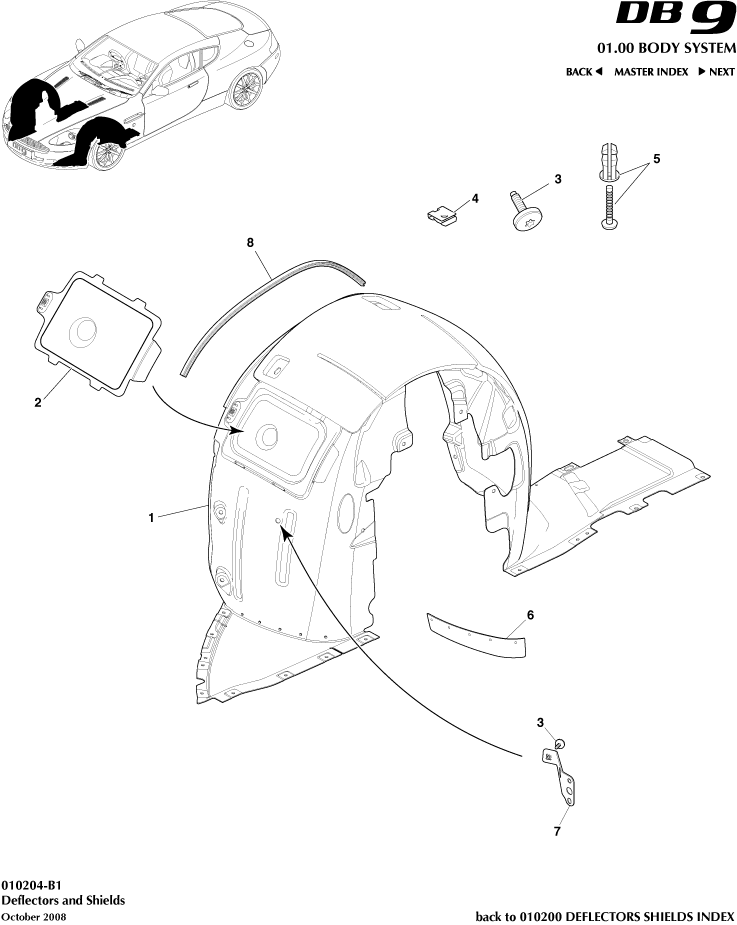

Front Structure - Front Wheel Arches of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G43L166562AF
FRONT WHEELARCH LINER RH VOLANTE
From 09MY Volante 		- 1 Enquire
- 9G43166563AC
Front Whhelarch Liner LH
Coupe & Pre 09MY Volante 		- 1 Enquire
- 9G43L166563AF
FRONT WHEELARCH LINER LH VOLANTE
From 09MY Volante 		- 1 Enquire
- 4G4316F119AA
FRT WHEEL ARCH LINER ACCESS DOOR KIT LH
- 		- 1 Enquire
- 4G437811289

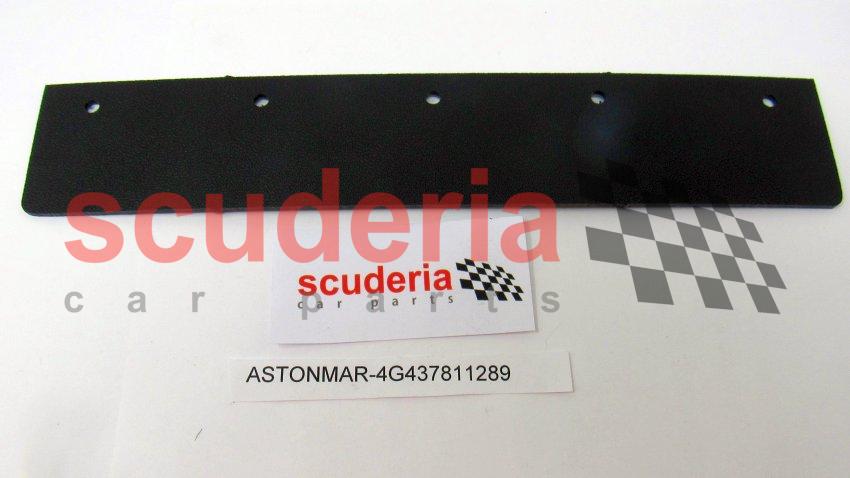

Air Deflector Wheel Arch
- 		- 1 Enquire
- 8G4316587AA
BRKT FRT WHL SHLD-LH
- 		- 1 Enquire
1 9G43166562AC
FRONT WHEELARCH LINER RH
Coupe & Pre 09MY Volante 		- 1 Enquire
2 4G4316F118AA
FRT WHEEL ARCH LINER ACCESS DOOR KIT RH
- 		- 1 Enquire
3 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
27 per liner. Pack of 20 		- 54 Enquire
4 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
19 per liner. Pack of 10
ARRIVING SOON 		- 38 Enquire
5 4G437810814
Fastener Assembly, 6.2x3, 5.8, Push In
- 		- 8 Enquire
6 4G437811289
Air Deflector Wheel Arch
- 		- 1 Enquire
7 8G4316586AA
Bracket Front Wheel Shield Right Hand Side
- 		- 1 Enquire
8 4G43DX88NAA
Edging Strip
- 		- 2 Enquire
