Body Closures - Trunk Lid, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

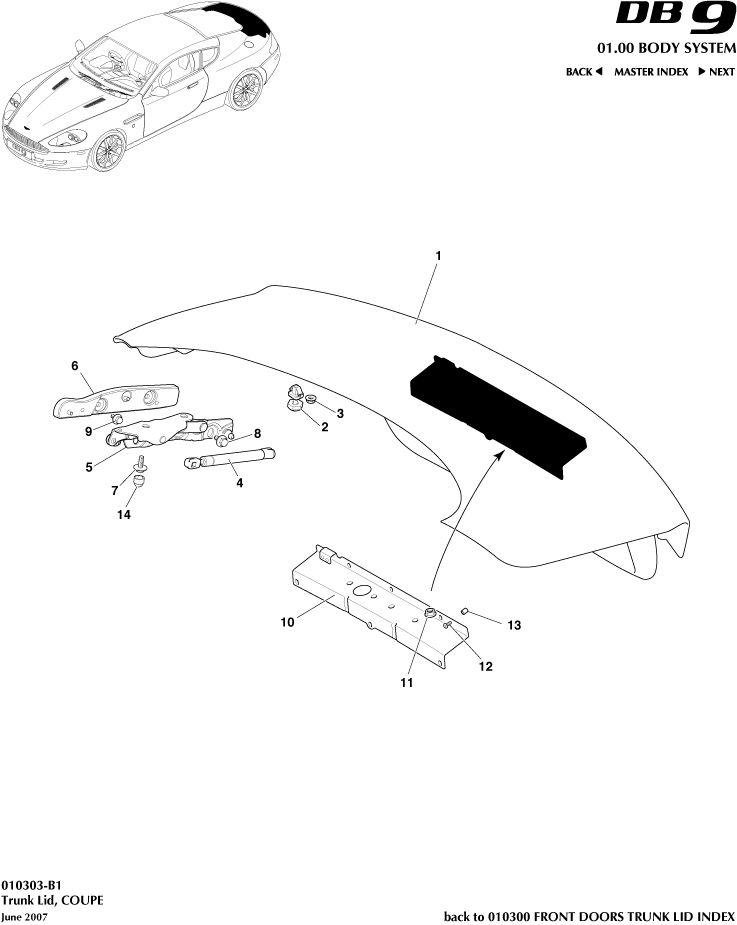

Aston Martin GT DB9 (2004-2017) - Body Closures - Trunk Lid, Coupe

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4340110BE	ASSY DECKLID CPE FED	4G4340110BE ASSY DECKLID CPE FED Federal	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass 08MY	-	2	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	2	Enquire
-	4G4342741AD	HINGE ASSY LUGGAGE COMPARTMENT DOOR LH	4G4342741AD HINGE ASSY LUGGAGE COMPARTMENT DOOR LH -	-	1	Enquire
-	4G43C56191BA	COUPE DECKLID HINGE TO BODY MOUNTING PLATE LH	4G43C56191BA COUPE DECKLID HINGE TO BODY MOUNTING PLATE LH -	-	1	Enquire
-	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	703188 SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE 08MY	-	4	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass 08MY	-	4	Enquire
-	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	703188 SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE 08MY	-	4	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	4	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass 08MY	-	6	Enquire
1	4G4340110AE	ASSY DECKLID-CPE	4G4340110AE ASSY DECKLID-CPE RoW. Up to 2005	-	1	Enquire
1	4G4340110AL	ASSY DECKLID - COUPE	4G4340110AL ASSY DECKLID - COUPE RoW. From 2005	-	1	Enquire
2	4G4316K808AB	Bumper Hood to Cowl Top	4G4316K808AB Bumper Hood to Cowl Top -	-	2	Enquire
3	699877	NUT M6 HEX FLG	699877 NUT M6 HEX FLG 07MY	-	2	Enquire
4	4G43406A10AC	Gas Strut, Boot Lid	4G43406A10AC Gas Strut, Boot Lid -	-	2	Enquire
5	4G4342740AD	HINGE ASSY LUGGAGE COMPARTMENT DOOR RH	4G4342740AD HINGE ASSY LUGGAGE COMPARTMENT DOOR RH -	-	1	Enquire
6	4G43C56190BA	COUPE DECKLID HINGE TO BODY MOUNTING PLATE RH	4G43C56190BA COUPE DECKLID HINGE TO BODY MOUNTING PLATE RH -	-	1	Enquire
7	702972	Screw, M8 x 14	702972 Screw, M8 x 14 07MY	-	4	Enquire
8	702972	Screw, M8 x 14	702972 Screw, M8 x 14 07MY	-	4	Enquire
9	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	4	Enquire
10	4G43C13A202AC	DECKLID LAMP/SWITCH CLOSING PLATE ASSY	4G43C13A202AC DECKLID LAMP/SWITCH CLOSING PLATE ASSY -	-	1	Enquire
11	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass -	-	4	Enquire
12	700113	SCREW M5 x 10 PAN HD	700113 SCREW M5 x 10 PAN HD 07MY	-	6	Enquire
13	4G43012M5TAAA	M5 TAPPEX INSERT FOR DECKLID	4G43012M5TAAA M5 TAPPEX INSERT FOR DECKLID -	-	6	Enquire
14	4G4368632BA	Nut Cap, M6 Plastic Black	4G4368632BA Nut Cap, M6 Plastic Black -	-	8	Enquire
