Body Closures - Trunk Lid, Volante

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Body Closures - Trunk Lid, Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

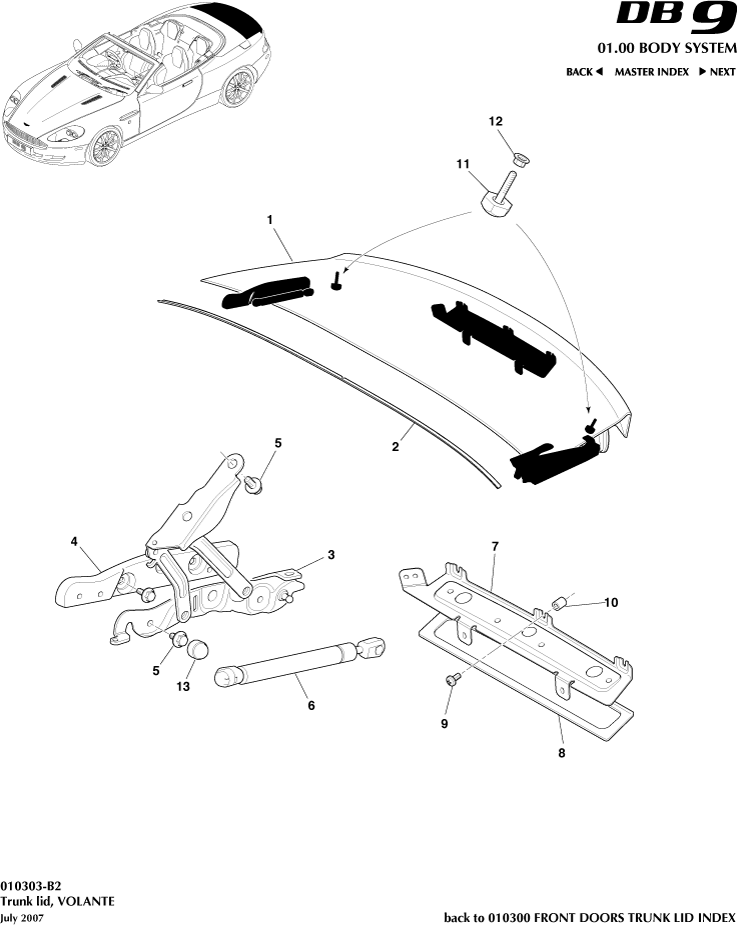

Body Closures - Trunk Lid, Volante of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G43L40110BH
ASSY D LID CONV FED
Federal 07MY 		- 1 Enquire
- 8G43L40110BC
ASSY DCKLD VOL FED
Federal 08MY 		- 1 Enquire
- 8G43L40110BD
ASSY DECKLID VOLANTE FEDERAL
Federal 09MY 		- 1 Enquire
- 670354229
CENTRAL BRACKET
- 		- 1 Enquire
- 4G4342741AD
HINGE ASSY LUGGAGE COMPARTMENT DOOR LH
- 		- 1 Enquire
- 4G43L56191AC
PLATE NUT LH
- 		- 2 Enquire
- 703188
SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE
08MY 		- 4 Enquire
- 703179
SCREW-M5x10 PAN HEAD CHROME FREE
08MY 		- 6 Enquire
1 4G43L40110AK
ASSY DECKLID - CONV
- 		- 1 Enquire
2 4G437710613
DB9 BOOT FLIP SEAL
-VOLANTE 		- 1 Enquire
3 4G4342740AD
HINGE ASSY LUGGAGE COMPARTMENT DOOR RH
- 		- 1 Enquire
4 4G43L56190AC
PLATE NUT RH
07MY 		- 1 Enquire
5 702972
Screw, M8 x 14
07MY 		- 4 Enquire
6 4G43L406A10AB
Gas Strut Trunk
- 		- 2 Enquire
7 4G43L13A203AD
LAMP CLOSING PLATE CONVERTIBLE ASSY
- 		- 1 Enquire
8 4G43L278C90AA
LAMP CLOSING PLATE CONVERTIBLE SEAL
- 		- 1 Enquire
9 700113
SCREW M5 x 10 PAN HD
07MY 		- 6 Enquire
10 4G43012M5TAAA
M5 TAPPEX INSERT FOR DECKLID
- 		- 5 Enquire
11 4G4316K808AB
Bumper Hood to Cowl Top
- 		- 2 Enquire
13 4G4368632BA
Nut Cap, M6 Plastic Black
- 		- 8 Enquire
