Interior Trim & Ornamentation - Sill Trim & Ornamentation

Aston Martin GT DB9 (2004-2017)

Find Your Part

Aston Martin GT DB9 (2004-2017) - Interior Trim & Ornamentation - Sill Trim & Ornamentation

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

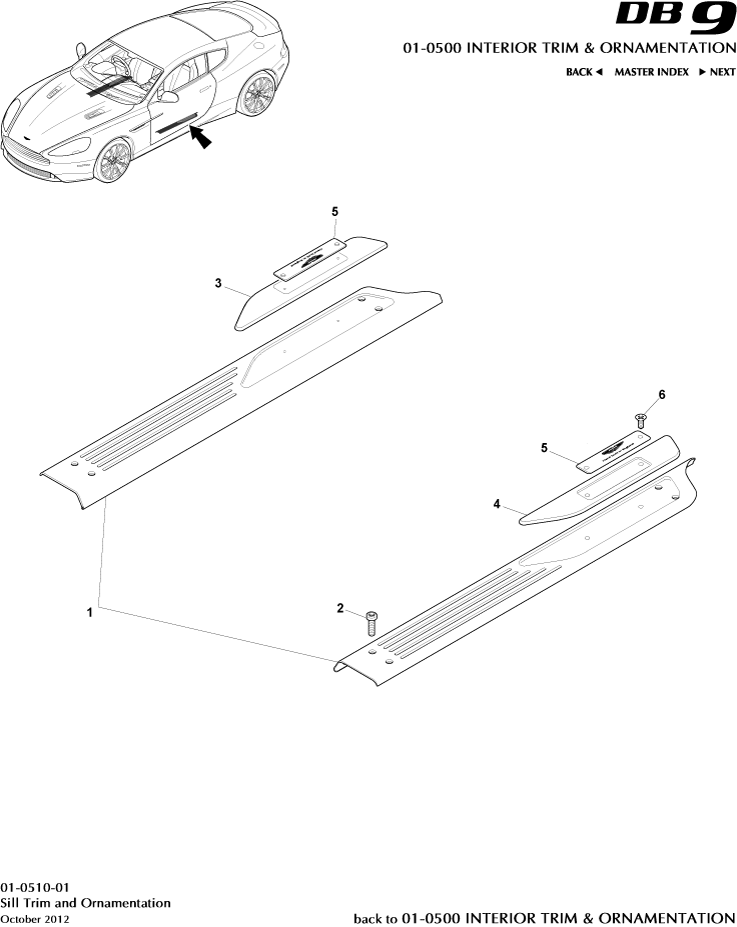

Interior Trim & Ornamentation - Sill Trim & Ornamentation of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8D3313242AE
KIT DOOR PLT SCF
Black, 15MY 		- 1 Enquire
- 8D3368D11AA
M6 X 20 SOCKET LOW HEAD BOLT STAINLESS STEEL
Black, 15MY 		- 8 Enquire
- 4G438010295
SILL NAME PLATE DB9 PERSONALISED
Personalised, Car Set, Up To 16MY 		- 1 Enquire
- EG43132A51AA
NM PLATE FRT SILL
Centenary, 13MY 		- 2 Enquire
- FG43132A50AA
NM PLT FRT SILL SCF
Carbon Black, 15MY 		- 2 Enquire
- FG43132A50BA
NM PLT FRT SILL SCF
Carbon White, 15MY 		- 2 Enquire
- CD33132A50AA
NM PLT FRT SILL SCF
Carbon Twill Weave, Federal, 15MY 		- 2 Enquire
- 708677
L/SMPL-CPPR TN MET-S
GT, 16MY 		- 2 Enquire
- 708832
P/SMPL-FLORIDA BLU 2
BOND, 16MY 		- 2 Enquire
1 8G4313242AE
KIT-PLATE DOR-SCUFF
Platinum 		- 1 Enquire
2 6G33SS106209AAPK
BOLT-M6x20 SKT HD(2)
Bright 		- 8 Enquire
3 4G4313254ABW
Pad Assy, Leather, RH
- 		- 1 Enquire
4 4G4313255ABW
Pad Assy, Leather, LH
- 		- 1 Enquire
5 4G438010787
NAMEPLATE-FRONT SILL STANDARD- AM WING ONLY DB9
Standard, Up To 16MY 		- 2 Enquire
6 699123
Screw, No.6 x 9.5 Countersunk Head
- 		- 4 Enquire
