Front Seat from (V) A09110 of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Front Seat from (V) A09110

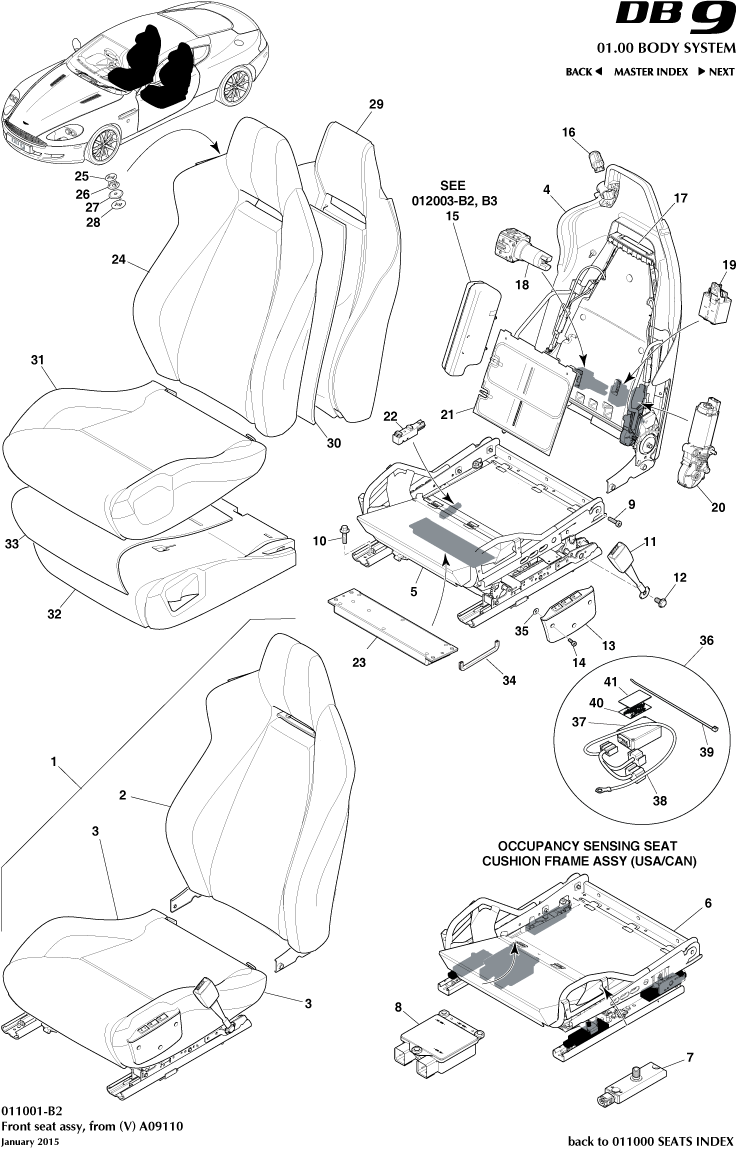

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7G4360009AFW	ASSY FRONT SEAT LHS	7G4360009AFW ASSY FRONT SEAT LHS -	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass USA/CAN	-	1	Enquire
-	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass USA/CAN	-	1	Enquire
-	7G4360137AFW	FRONT SEAT SQUAB LH TRIMMED ASSY	7G4360137AFW FRONT SEAT SQUAB LH TRIMMED ASSY -	-	1	Enquire
-	7G4360051AFW	CSHN ASY FRT ST	7G4360051AFW CSHN ASY FRT ST -	-	1	Enquire
-	920033498	SPARCO SHOES FORMULA 40	920033498 SPARCO SHOES FORMULA 40 10.7MY	-	1	Enquire
-	CG4364800AB	FRT ST SQB FRAM MEM	CG4364800AB FRT ST SQB FRAM MEM 12MY	-	1	Enquire
-	CG4364802AC	Squab Frame, Front Seat, LH, Memory	CG4364802AC Squab Frame, Front Seat, LH, Memory -	-	1	Enquire
-	AG4364802BA	FRT ST SQB FRAME MEM	AG4364802BA FRT ST SQB FRAME MEM 10.7MY	-	1	Enquire
-	CG4364802AC	Squab Frame, Front Seat, LH, Memory	CG4364802AC Squab Frame, Front Seat, LH, Memory 12MY	-	1	Enquire
-	7G43L60344AD	FRONT SEAT CUSHION FRAME HEIGHT ADJUST	7G43L60344AD FRONT SEAT CUSHION FRAME HEIGHT ADJUST USA/Can	-	1	Enquire
-	7G4314E693BA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	7G4314E693BA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH -	-	1	Enquire
-	7G4314E693CA	SWITCH PACK ASSY FRT SEAT LUMBAR LH	7G4314E693CA SWITCH PACK ASSY FRT SEAT LUMBAR LH -	-	1	Enquire
-	7G4314E693DA	Switch Pack Assy, Lumbar, RH	7G4314E693DA Switch Pack Assy, Lumbar, RH -	-	1	Enquire
-	4G437410689	Airbag, Side, LH	4G437410689 Airbag, Side, LH -	-	1	Enquire
-	AG4365530AA	PUMP FRONT SEAT LUMBAR	AG4365530AA PUMP FRONT SEAT LUMBAR 10.7MY	-	1	Enquire
-	AG4362690AA	VALVE FRONT SOLENOID SEAT LUMBAR	AG4362690AA VALVE FRONT SOLENOID SEAT LUMBAR 10.7MY	-	1	Enquire
-	920033499	SPARCO SHOES FORMULA 41	920033499 SPARCO SHOES FORMULA 41 10.7MY	-	1	Enquire
-	SY9Y1188186AA	FLR VIN PL CVR PNL	SY9Y1188186AA FLR VIN PL CVR PNL For vehicles between Vin A06678 - B12484 Please refer to SB 01-0331	-	1	Enquire
-	7G4364573AFW	FRONT SEAT SQUAB LH COVER ASSY	7G4364573AFW FRONT SEAT SQUAB LH COVER ASSY -	-	1	Enquire
-	7G434D9514AB	SEAT BACK FOAM LH	7G434D9514AB SEAT BACK FOAM LH -	-	1	Enquire
-	7G4362901AFW	COVER ASSY FRONT SEAT CUSHION LH	7G4362901AFW COVER ASSY FRONT SEAT CUSHION LH -	-	1	Enquire
-	7G439516AB	FRT ST CUSH FOAM LH	7G439516AB FRT ST CUSH FOAM LH -	-	1	Enquire
1	7G4360008AFW	ASSY FRONT SEAT RH	7G4360008AFW ASSY FRONT SEAT RH -	-	1	Enquire
2	7G4360136AFW	FRONT SEAT SQUAB RH TRIMMED ASSY	7G4360136AFW FRONT SEAT SQUAB RH TRIMMED ASSY -	-	1	Enquire
3	7G4360050AFW	FRONT SEAT CUSHION TRIMMED ASSY RH	7G4360050AFW FRONT SEAT CUSHION TRIMMED ASSY RH -	-	1	Enquire
4	CG4364800AC	Squab Frame, Front Seat, RH, Memory	CG4364800AC Squab Frame, Front Seat, RH, Memory -	-	1	Enquire
5	7G43L60344AD	FRONT SEAT CUSHION FRAME HEIGHT ADJUST	7G43L60344AD FRONT SEAT CUSHION FRAME HEIGHT ADJUST ROW	-	2	Enquire
6	7G43L60344CB	Cushion Frame, Front Seat, Non Height Adjusting, OCS	7G43L60344CB Cushion Frame, Front Seat, Non Height Adjusting, OCS USA/Can	-	1	Enquire
7	7G43625B02BA	Sensor Passenger Seat Weight	7G43625B02BA Sensor Passenger Seat Weight -	-	1	Enquire
8	7G43625B00CC	Module, Passenger Seat Weight	7G43625B00CC Module, Passenger Seat Weight -	-	1	Enquire
9	4G4361538AB	M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	4G4361538AB M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT -	-	4	Enquire
10	703733	SCREW-M8x25 HF PI8.8	703733 SCREW-M8x25 HF PI8.8 -	-	4	Enquire
11	4G43613K22BD	Buckle Assembly, Front Seatbelt	4G43613K22BD Buckle Assembly, Front Seatbelt -	-	1	Enquire
12	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right -	-	1	Enquire
13	7G4314E693AA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH	7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH -	-	1	Enquire
14	7G43N014740AA	Screw, M6 x 16, Socket Head	7G43N014740AA Screw, M6 x 16, Socket Head -	-	3	Enquire
15	4G437410690	Airbag, Side, RH	4G437410690 Airbag, Side, RH -	-	1	Enquire
16	6G33062A00BA	GLOVEBOX SWITCH	6G33062A00BA GLOVEBOX SWITCH -	-	1	Enquire
17	7G43605W00ACW	Strap, Squab Release, Manual Override	7G43605W00ACW Strap, Squab Release, Manual Override Not sold separately - Included with item 2	-	N/A	Enquire
18	8G3365532AA	Pump, Lumbar Support Air	8G3365532AA Pump, Lumbar Support Air -	-	1	Enquire
19	8G3365524AA	Valve, Lumbar Support Air	8G3365524AA Valve, Lumbar Support Air -	-	1	Enquire
20	4G437410127	Kit, Squab Motor	4G437410127 Kit, Squab Motor -	-	1	Enquire
21	8G3365500AA	LUMBAR SUPPORT BAG	8G3365500AA LUMBAR SUPPORT BAG -	-	1	Enquire
22	22AA815GP	ASSY BRKT RR FENDER INR RH	22AA815GP ASSY BRKT RR FENDER INR RH -	-	1	Enquire
23	SY9Y17504AA	WPR MTR ASY RHS RHD	SY9Y17504AA WPR MTR ASY RHS RHD For vehicles between Vin A06678 - B12484 Please refer to SB 01-0331	-	1	Enquire
24	7G4364572AFW	FRONT SEAT SQUAB RH COVER ASSY	7G4364572AFW FRONT SEAT SQUAB RH COVER ASSY -	-	1	Enquire
25	6G3361L16BA	RING SNAP MAG	6G3361L16BA RING SNAP MAG -	-	2	Enquire
26	6G3361L16CA	PIN MAG SMALL	6G3361L16CA PIN MAG SMALL -	-	2	Enquire
27	6G3361L16DA	LATCH MAG LARGE	6G3361L16DA LATCH MAG LARGE -	-	2	Enquire
28	6G3361L16EA	WASHER LARGE MAG	6G3361L16EA WASHER LARGE MAG -	-	2	Enquire
29	7G434D9513AB	SQUAB FOAM RH	7G434D9513AB SQUAB FOAM RH -	-	1	Enquire
30	7G4314D696AB	Heating Element, Squab	7G4314D696AB Heating Element, Squab -	-	1	Enquire
31	7G4362900AFW	COVER ASSY FRONT SEAT CUSHION RH	7G4362900AFW COVER ASSY FRONT SEAT CUSHION RH -	-	1	Enquire
32	8G439515AA	FRT ST CUSH FOAM RH	8G439515AA FRT ST CUSH FOAM RH -	-	1	Enquire
33	7G4314D698AC	Element, Seat Base Heater	7G4314D698AC Element, Seat Base Heater -	-	1	Enquire
34	DAC402710	Edge Protection, Switch Harness, 150mm	DAC402710 Edge Protection, Switch Harness, 150mm -	-	2	Enquire
35	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20. Front Fixing, LH Seat Only	-	1	Enquire
36	FG43632B22AA	SUPERVISOR KIT	FG43632B22AA SUPERVISOR KIT See QN-01-0026, January 2015	-	1	Enquire
37	FG4318B512AA	SUPERVISOR BOX	FG4318B512AA SUPERVISOR BOX Part of kit #36	-	2	Enquire
38	FG4314B510AA	SUPERVISOR HARNESS	FG4314B510AA SUPERVISOR HARNESS Part of kit #36	-	2	Enquire
39	4G43N02091AB	Tie, Wrap	4G43N02091AB Tie, Wrap Part of kit #36	-	2	Enquire
40	920033488	SPARCO RACING GLOVES 12	920033488 SPARCO RACING GLOVES 12 Part of kit #36	-	2	Enquire
41	920033489	SPARCO RACING GLOVES 13	920033489 SPARCO RACING GLOVES 13 Part of kit #36	-	2	Enquire
