Body Structure - Body Dash and Cowl, Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Body Structure - Body Dash and Cowl, Volante

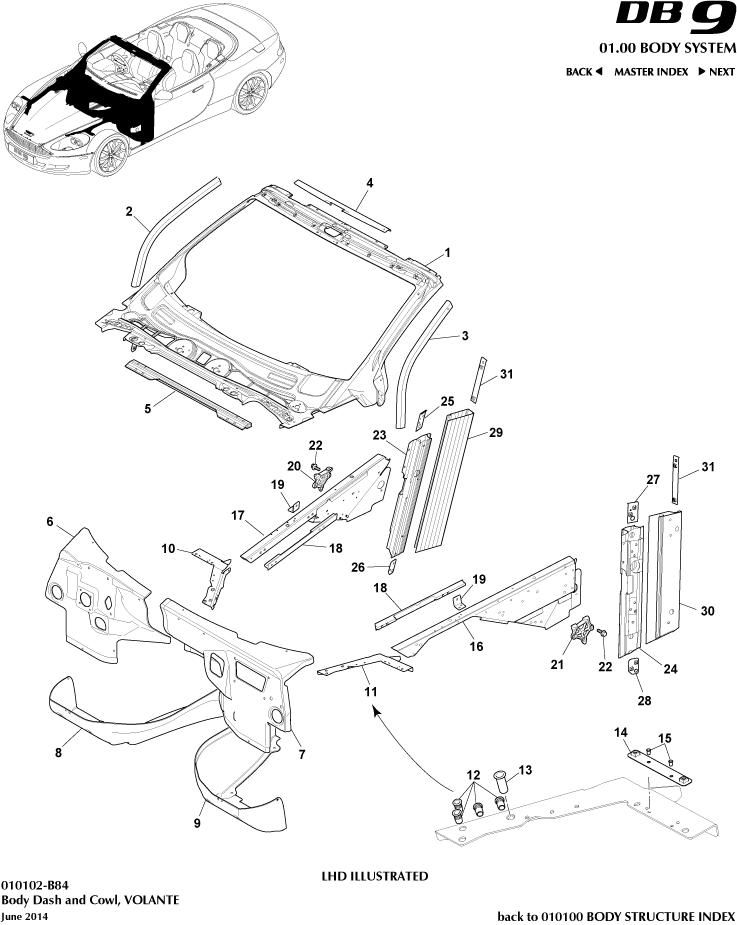

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G33L03014AE	FRAME ASSEMBLY WINDSHIELD	6G33L03014AE FRAME ASSEMBLY WINDSHIELD Structural Cat. A only	-	1	Enquire
-	6G33F01760BB	PANEL DASH UPPER RH	6G33F01760BB PANEL DASH UPPER RH Structural Cat. A only	-	1	Enquire
-	6G33F01761BB	PANEL DASH UPPER LH	6G33F01761BB PANEL DASH UPPER LH Structural Cat. A only	-	1	Enquire
1	SY9Y13W030BC	H/LAMP LHS LHD	SY9Y13W030BC H/LAMP LHS LHD Structural Cat. A only	-	1	Enquire
2	6G33F02526AA	REINF FRONT BODY PILLAR RH	6G33F02526AA REINF FRONT BODY PILLAR RH Structural Cat. A only	-	1	Enquire
3	670198279	SIDE SEATBELT RETRACTOR BLAC	670198279 SIDE SEATBELT RETRACTOR BLAC Structural Cat. A only	-	1	Enquire
4	4G43L03444AB	Reinf Windshield Header	4G43L03444AB Reinf Windshield Header Structural Cat. A only	-	1	Enquire
5	6G3310414AB	MBR FRT CS AT DH	6G3310414AB MBR FRT CS AT DH Structural Cat. A only	-	1	Enquire
6	670198492	GLOVE BOX ASSEMBLY BLACK	670198492 GLOVE BOX ASSEMBLY BLACK Structural Cat. A only	-	1	Enquire
7	6G33F01761AB	PANEL DASH UPPER LH	6G33F01761AB PANEL DASH UPPER LH Structural Cat. A only	-	1	Enquire
8	9G33F01612AB	PANEL DASH SIDE RH	9G33F01612AB PANEL DASH SIDE RH Structural Cat. A only	-	1	Enquire
9	6G33F01613AC	PNL DH SD LH	6G33F01613AC PNL DH SD LH Structural Cat. A only	-	1	Enquire
10	8G4316430AA	REINF HOOD STRIKER PLATE RH	8G4316430AA REINF HOOD STRIKER PLATE RH Structural Cat. A only	-	1	Enquire
11	8G4316431AA	REINF HOOD STRIKER PLATE LH	8G4316431AA REINF HOOD STRIKER PLATE LH Structural Cat. A only	-	1	Enquire
12	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni Structural Cat. A only	-	4 per plate	Enquire
13	6G3346768AA	RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni	6G3346768AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni Structural Cat. A only	-	1 per plate	Enquire
14	8D33199901AA	NUTPLATE HEAD LAMP BRACKET	8D33199901AA NUTPLATE HEAD LAMP BRACKET Structural Cat. A only	-	2	Enquire
15	703074	Rivet, 4.65 x 13.8	703074 Rivet, 4.65 x 13.8 Structural Cat. A only	-	2 per plate	Enquire
16	4G432010882	SUPPORT ARM ASSY- FRT WING LH-DB9	4G432010882 SUPPORT ARM ASSY- FRT WING LH-DB9 Structural Cat. A only	-	1	Enquire
17	4G432010881	SUPPORT ARM ASSY- FRT WING RH-DB9	4G432010881 SUPPORT ARM ASSY- FRT WING RH-DB9 Structural Cat. A only	-	1	Enquire
18	670194273	DOOR MOULDING	670194273 DOOR MOULDING Structural Cat. A only	-	2	Enquire
19	6G33C18178AB	Bracket, Gas Damper Mounting	6G33C18178AB Bracket, Gas Damper Mounting Structural Cat. A only	-	2	Enquire
20	670202374	LH REAR SEAT BACK TAN	670202374 LH REAR SEAT BACK TAN Structural Cat. A only	-	1	Enquire
21	670206844	REAR CUSHION BLACK+YELLOW	670206844 REAR CUSHION BLACK+YELLOW Structural Cat. A only	-	1	Enquire
22	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm Structural Cat. A only	-	3 per hinge	Enquire
23	P06G33F02660BA	PLR FRT BDY LWR FRT	P06G33F02660BA PLR FRT BDY LWR FRT Structural Cat. A only	-	1	Enquire
24	P06G33F02661BA	PLR FRT BDY LWR FRT	P06G33F02661BA PLR FRT BDY LWR FRT Structural Cat. A only	-	1	Enquire
25	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	6G3371490AA Nutplate, A Post Hinge, Upper, RH Structural Cat. A only	-	1	Enquire
26	6G3315110AA	NUTPLATE A POST LWR	6G3315110AA NUTPLATE A POST LWR Structural Cat. A only	-	1	Enquire
27	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	6G3394545AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A only	-	1	Enquire
28	6G3315111AA	Nutplate, A Post Hinge, Upper, LH	6G3315111AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A only	-	1	Enquire
29	P06G33F02663BA	EXT FRT BDY PLR LWR	P06G33F02663BA EXT FRT BDY PLR LWR Structural Cat. A only	-	1	Enquire
30	P06G33F02663BA	EXT FRT BDY PLR LWR	P06G33F02663BA EXT FRT BDY PLR LWR Structural Cat. A only	-	1	Enquire
31	6G33486226AA	Nutplate, M8, IP beam	6G33486226AA Nutplate, M8, IP beam Structural Cat. A only	-	2	Enquire
