Exterior Trim - Bodyside & Quarter Trim , Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

Aston Martin GT DB9 (2004-2017) - Exterior Trim - Bodyside & Quarter Trim , Volante

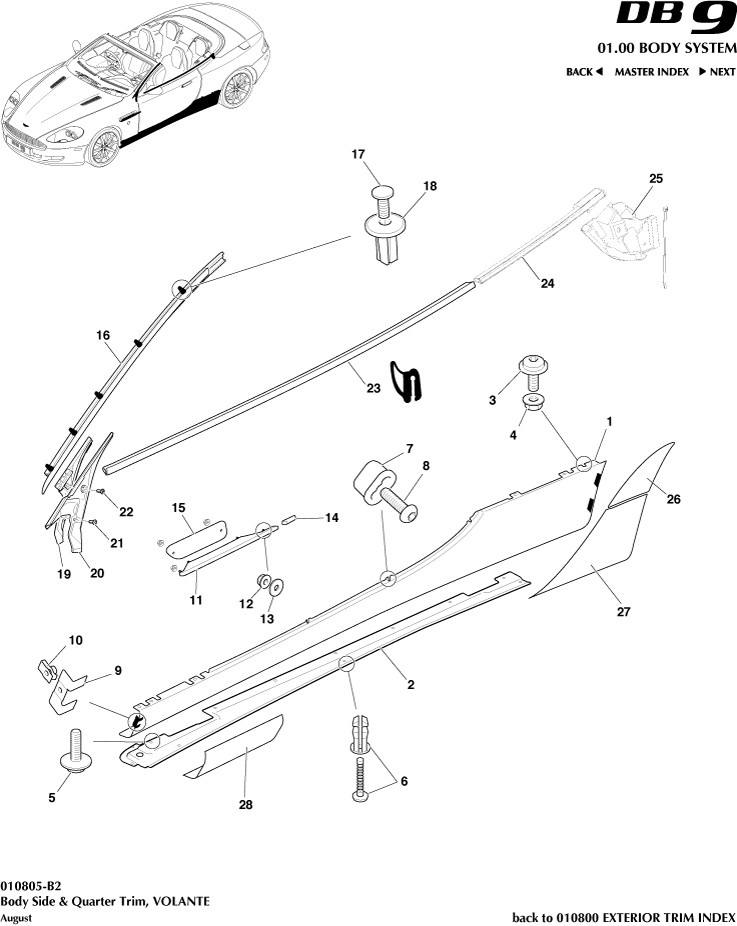

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G4310609AB	SILL APPLIQUE MLDG LH	6G4310609AB SILL APPLIQUE MLDG LH -	-	1	Enquire
-	AG4310608AA	SILL APPLQ RH	AG4310608AA SILL APPLQ RH 11MY	-	1	Enquire
-	AG4310609AA	SILL APPLQ LH	AG4310609AA SILL APPLQ LH 11MY	-	1	Enquire
-	920033477	SPARCO RACING LS TEE XS/S	920033477 SPARCO RACING LS TEE XS/S -	-	2	Enquire
-	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Part of item 1	-	1	Enquire
-	8G4316587AA	BRKT FRT WHL SHLD-LH	8G4316587AA BRKT FRT WHL SHLD-LH -	-	1	Enquire
-	4G43280B62AH	SIDE STRAKE FENDER RH	4G43280B62AH SIDE STRAKE FENDER RH 11MY	-	1	Enquire
-	4G43018K28AG	SIDE STRAKE DOOR RH	4G43018K28AG SIDE STRAKE DOOR RH -	-	1	Enquire
-	4G43280B84BA	MESH SIDE STRAKE LH SPECIAL EDITION	4G43280B84BA MESH SIDE STRAKE LH SPECIAL EDITION Magnum Silver	-	1	Enquire
-	920033476	SPARCO RACING SUIT 64	920033476 SPARCO RACING SUIT 64 11MY	-	1	Enquire
-	BG43280B84BA	MESH SIDE STRAKE LH SPECIAL EDITION MAGNUM SILVER	BG43280B84BA MESH SIDE STRAKE LH SPECIAL EDITION MAGNUM SILVER 11MY, Magnum Silver	-	1	Enquire
-	4G43280B83AD	MESH SIDE STRAKE RH	4G43280B83AD MESH SIDE STRAKE RH -	-	1	Enquire
-	4G43280B83BA	MESH SIDE STRAKE RH SPECIAL EDITION	4G43280B83BA MESH SIDE STRAKE RH SPECIAL EDITION Magnum Silver	-	1	Enquire
-	BG43280B83AA	MESH SIDE STRAKE RH PLATINUM	BG43280B83AA MESH SIDE STRAKE RH PLATINUM 11MY	-	1	Enquire
-	BG43280B83BA	MESH SIDE STRAKE RH SPECIAL EDITION MAGNUM SILVER	BG43280B83BA MESH SIDE STRAKE RH SPECIAL EDITION MAGNUM SILVER 11MY, Magnum Silver	-	1	Enquire
-	4G43519A37DA	Finisher, A Pillar, RH	4G43519A37DA Finisher, A Pillar, RH -	-	1	Enquire
-	4G43C02564AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH	4G43C02564AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY RH -	-	1	Enquire
-	4G43C02565BD	Retainer Assy, Front Body W/Strip Cover Primary, LH	4G43C02565BD Retainer Assy, Front Body W/Strip Cover Primary, LH 06MY on	-	1	Enquire
-	4G43C02564BD	Retainer Assy, Front Body W/Strip Cover Primary, RH	4G43C02564BD Retainer Assy, Front Body W/Strip Cover Primary, RH -	-	1	Enquire
-	4G43F20562AE	DR WAIST SEAL OTR RH	4G43F20562AE DR WAIST SEAL OTR RH -	-	1	Enquire
-	4G43F20562BA	Weatherstrip, Front Door Outer, RH	4G43F20562BA Weatherstrip, Front Door Outer, RH 07MY on	-	1	Enquire
-	9G431228494CA	Weatherstrip, Rear Quarter Glass outer, RH	9G431228494CA Weatherstrip, Rear Quarter Glass outer, RH -	-	1	Enquire
-	4G43A410K24BD	BRKT PNL C-POST LAND	4G43A410K24BD BRKT PNL C-POST LAND -	-	1	Enquire
-	4G439110346	PAINT PROTECTION KIT -DB9	4G439110346 PAINT PROTECTION KIT -DB9 Includes the items listed below	-	1	Enquire
-	4G439110347	INSTRUCTION	4G439110347 INSTRUCTION -	-	1	Enquire
-	8D3310631AB	Tape, Rear quarter, LH	8D3310631AB Tape, Rear quarter, LH From 08MY	-	1	Enquire
-	4G4310630AB	REAR QTR TAPE RH	4G4310630AB REAR QTR TAPE RH Up To 08MY	-	1	Enquire
-	8D3310630AB	Tape, Rear quarter, RH	8D3310630AB Tape, Rear quarter, RH From 08MY	-	1	Enquire
-	4G4310624AB	SILL REAR TAPE RH	4G4310624AB SILL REAR TAPE RH -	-	1	Enquire
-	8G4310627AA	SILL FRT TAPE LH	8G4310627AA SILL FRT TAPE LH From 09MY	-	1	Enquire
-	4G4310626AA	SILL FRONT TAPE RH	4G4310626AA SILL FRONT TAPE RH Up To 09MY	-	1	Enquire
-	8G4310626AB	SILL FRT TAPE RH	8G4310626AB SILL FRT TAPE RH From 09MY	-	1	Enquire
-	4G4310628AB	FRT BMPR LWR TAPE	4G4310628AB FRT BMPR LWR TAPE see 011901-B1	-	1	Enquire
1	6G4310608AB	SILL APPLIQUE MLDG RH	6G4310608AB SILL APPLIQUE MLDG RH -	-	1	Enquire
2	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Part of item 1	-	1	Enquire
3	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free -	-	4	Enquire
4	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	4	Enquire
5	701567	Screw, M6 x 16	701567 Screw, M6 x 16 -	-	14	Enquire
6	701582PK	RIVET PUSH-IN (PK10)	701582PK RIVET PUSH-IN (PK10) Pack of 10	-	6	Enquire
7	4G4348954AA	SILL ANTI STRIP LOCKNUT	4G4348954AA SILL ANTI STRIP LOCKNUT -	-	9	Enquire
8	701441PK	Screw, 4.2 x 13, Small Washer Head	701441PK Screw, 4.2 x 13, Small Washer Head Pack of 10	-	9	Enquire
9	8G4316586AA	Bracket Front Wheel Shield Right Hand Side	8G4316586AA Bracket Front Wheel Shield Right Hand Side -	-	1	Enquire
10	703740	NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG	703740 NUT-M6x1.0 0.8-0.4 U TYPE SHRT SPG -	-	6	Enquire
11	4G43280B63AH	Side Strake Fender LH	4G43280B63AH Side Strake Fender LH 11MY	-	1	Enquire
12	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking -	-	4	Enquire
14	4G43018K29AG	SIDE STRAKE DOOR LH	4G43018K29AG SIDE STRAKE DOOR LH -	-	1	Enquire
15	4G43280B84AD	MESH SIDE STRAKE LH	4G43280B84AD MESH SIDE STRAKE LH -	-	1	Enquire
16	4G43519A36DA	Finisher, A Pillar, LH	4G43519A36DA Finisher, A Pillar, LH -	-	1	Enquire
17	4G4351757AA	Screw M4 Self Tap M4 (Mini C Rail)	4G4351757AA Screw M4 Self Tap M4 (Mini C Rail) -	-	36	Enquire
18	701656PK	RETAINER(PACK OF 10)	701656PK RETAINER(PACK OF 10) Pack of 10	-	38	Enquire
19	4G43C02565AC	RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH	4G43C02565AC RETAINER ASSY FRONT BODY PILLAR W/STRIP PRIMARY LH -	-	1	Enquire
20	4G43C02565BC	RET ASY FRT PLR LH	4G43C02565BC RET ASY FRT PLR LH -	-	1	Enquire
21	702217	Screw, M5 x 2.5 x 20, Internal Hex Dome Head	702217 Screw, M5 x 2.5 x 20, Internal Hex Dome Head -	-	2	Enquire
22	700235	SCREW 4.2x905 TAP	700235 SCREW 4.2x905 TAP -	-	2	Enquire
23	4G43F20563BA	Weatherstrip, Front Door Outer, LH	4G43F20563BA Weatherstrip, Front Door Outer, LH -	-	1	Enquire
24	9G431228495CA	Weatherstrip Rear Quarter Glass Outer LH	9G431228495CA Weatherstrip Rear Quarter Glass Outer LH -	-	1	Enquire
25	4G43A410K25BD	BRKT PNL C-POST LAND	4G43A410K25BD BRKT PNL C-POST LAND -	-	1	Enquire
26	4G4310631AB	REAR QTR TAPE LH	4G4310631AB REAR QTR TAPE LH Up To 08MY	-	1	Enquire
27	4G4310625AB	SILL REAR TAPE LH	4G4310625AB SILL REAR TAPE LH -	-	1	Enquire
28	4G4310627AA	SILL FRONT TAPE LH 350X175MM	4G4310627AA SILL FRONT TAPE LH 350X175MM Up To 09MY	-	1	Enquire
