Body Structure - Body Rear End, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017)

View All

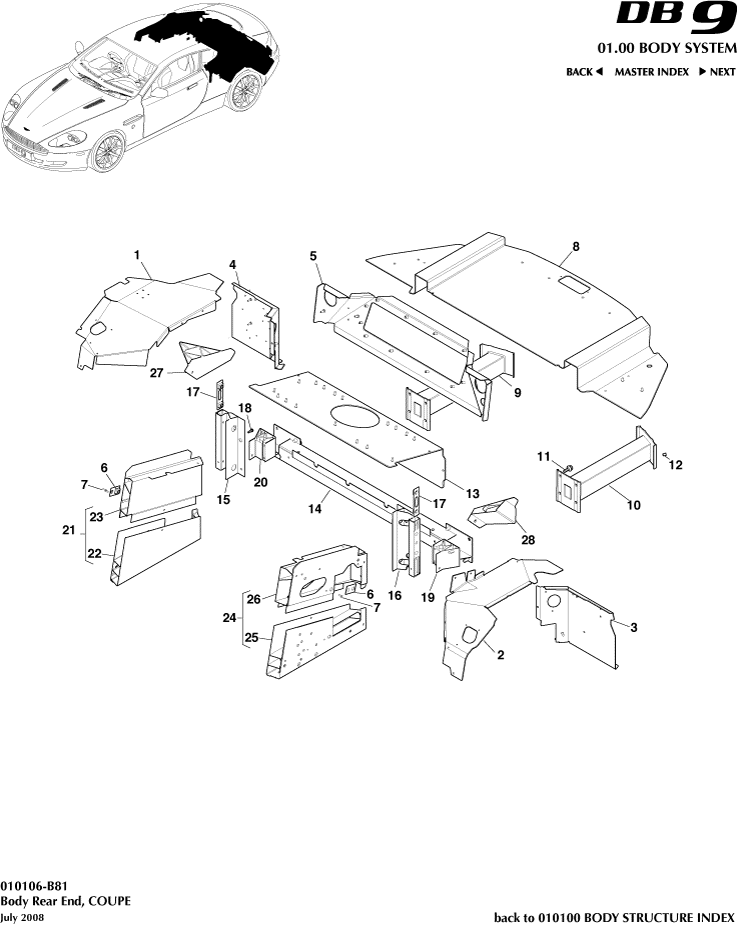

Aston Martin GT DB9 (2004-2017) - Body Structure - Body Rear End, Coupe

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8G43C279A54GB	PANEL QUARTER WHEEL HOUSE INNER REAR RH	8G43C279A54GB PANEL QUARTER WHEEL HOUSE INNER REAR RH 08MY,Structural Cat. A only	-	1	Enquire
-	8G43C279A55GA	PANEL QUARTER WHEEL HOUSE INNER REAR LH	8G43C279A55GA PANEL QUARTER WHEEL HOUSE INNER REAR LH 08MY,Structural Cat. A only	-	1	Enquire
-	8G43C40334GA	Panel, Upper Back, Centre	8G43C40334GA Panel, Upper Back, Centre 08MY,Structural Cat. A only	-	1	Enquire
-	8G4317F034AA	ABS ASY BMPR RR RH	8G4317F034AA ABS ASY BMPR RR RH 08MY,Structural Cat. A only	-	1	Enquire
-	8G4317F035AA	ABS ASY BMPR RR LH	8G4317F035AA ABS ASY BMPR RR LH 08MY,Structural Cat. A only	-	1	Enquire
1	7G43C279A54AA	PNL QTR WHL/HS INR	7G43C279A54AA PNL QTR WHL/HS INR 07MY,Structural Cat. A only	-	1	Enquire
2	7G43C279A55AA	PNL QTR WHL/HS INR L	7G43C279A55AA PNL QTR WHL/HS INR L 07MY,Structural Cat. A only	-	1	Enquire
3	8G43C10514AA	PNL RR FLR SD OTR RH	8G43C10514AA PNL RR FLR SD OTR RH Structural Cat. A only	-	1	Enquire
4	8G43C10515AA	Panel, Rear Floor Outer Side, LH	8G43C10515AA Panel, Rear Floor Outer Side, LH Structural Cat. A only	-	1	Enquire
5	670206846	LH REAR SEAT BACK BLACK+YELL	670206846 LH REAR SEAT BACK BLACK+YELL 07MY,Structural Cat. A only	-	1	Enquire
6	6G3380997AA	Nutplate, M12, Rear Damper Mounting, Front	6G3380997AA Nutplate, M12, Rear Damper Mounting, Front Structural Cat. A only	-	1	Enquire
7	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass Structural Cat. A only	-	2	Enquire
8	8G4347124AA	PNL FLR TRUNK	8G4347124AA PNL FLR TRUNK Structural Cat. A only	-	1	Enquire
9	4G4317F034AC	ABS ASY BMPR RR RH	4G4317F034AC ABS ASY BMPR RR RH 06/07MY,Structural Cat. A only	-	1	Enquire
10	4G4317F035AC	ABS ASY BMPR RR LH	4G4317F035AC ABS ASY BMPR RR LH 06/07MY,Structural Cat. A only	-	1	Enquire
11	701664	SCREW-M8x25 HEX FLG	701664 SCREW-M8x25 HEX FLG Structural Cat. A only	-	8	Enquire
12	6G3356316AA	RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni	6G3356316AA RIVNUT M8 FLAT HEADED KNURLED 2-3.5 mm GRIP Zn/Ni Structural Cat. A only	-	4	Enquire
13	670224977	COVER	670224977 COVER Structural Cat. A only	-	1	Enquire
14	8G4340338AA	REINF LWR BK CTR PNL	8G4340338AA REINF LWR BK CTR PNL Structural Cat. A only	-	2	Enquire
15	GO8G43101C84AA	BRKT SD MBR RR RH	GO8G43101C84AA BRKT SD MBR RR RH Structural Cat. A only	-	1	Enquire
16	GO8G43101C85AA	BRKT SD MBR RR LH	GO8G43101C85AA BRKT SD MBR RR LH Structural Cat. A only	-	1	Enquire
17	8G43334177AA	Nutplate, M12, Rear Damper Mounting, Rear	8G43334177AA Nutplate, M12, Rear Damper Mounting, Rear Structural Cat. A only	-	2	Enquire
18	6G33375732AA	SCR SS HEX FL HD	6G33375732AA SCR SS HEX FL HD Structural Cat. A only	-	4	Enquire
19	670224978	PLUG	670224978 PLUG Structural Cat. A only	-	1	Enquire
20	670227965	SUN VISOR	670227965 SUN VISOR Structural Cat. A only	-	1	Enquire
21	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass Structural Cat. A only	-	1	Enquire
22	SY9Y23943FCW	DOOR ASSY TRIM LH	SY9Y23943FCW DOOR ASSY TRIM LH Structural Cat. A only	-	1	Enquire
23	670240255	LH FRONT SEAT TAN	670240255 LH FRONT SEAT TAN Structural Cat. A only	-	1	Enquire
24	00RB218	Clip - Finisher - Rear Quarter Glass	00RB218 Clip - Finisher - Rear Quarter Glass Structural Cat. A only	-	1	Enquire
25	8G4310457AC	MEMBER REAR FLOOR SIDE LH	8G4310457AC MEMBER REAR FLOOR SIDE LH Structural Cat. A only	-	1	Enquire
26	670274402	LH REAR SIDE PANEL BLACK-ICE	670274402 LH REAR SIDE PANEL BLACK-ICE Structural Cat. A only	-	1	Enquire
27	SY9Y10571AA	WISHBONE COVER LH	SY9Y10571AA WISHBONE COVER LH Structural Cat. A only	-	1	Enquire
28	SY9Y69320ODW	SUNVISOR RH CHINA LI	SY9Y69320ODW SUNVISOR RH CHINA LI Structural Cat. A only	-	1	Enquire
