Aston Martin GT DB9 (2004-2017) - Front End Structure - Grille Opening Panel

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

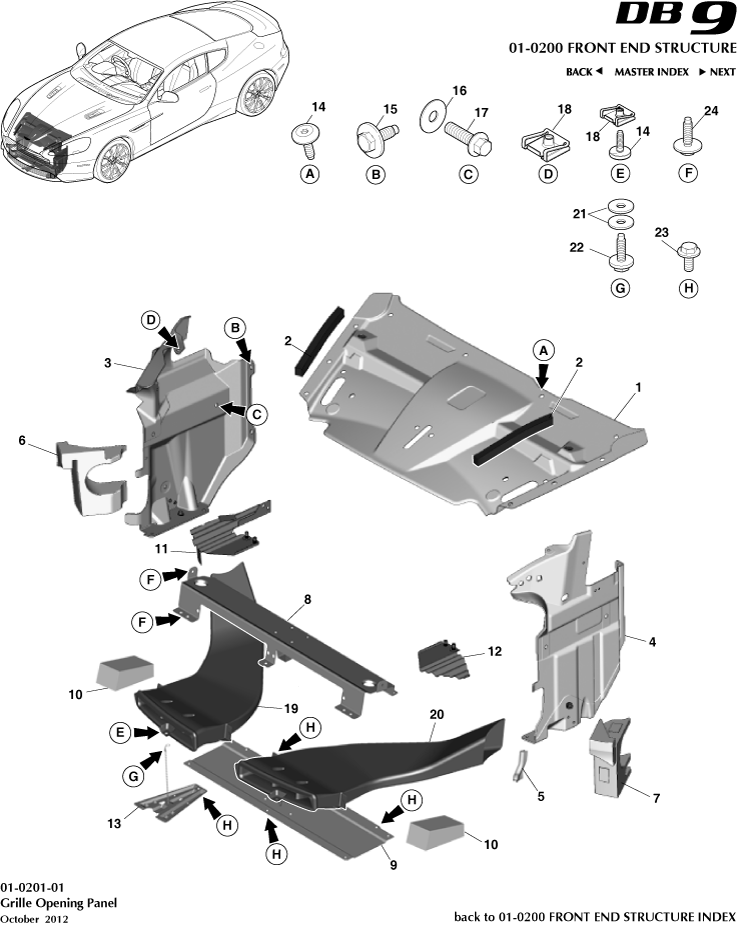

Front End Structure - Grille Opening Panel of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DG4311028AA
Blanking Plug
- 		- A/R Enquire
1 DG438136BB
GRL ASSY RAD CTR
- 		- 1 Enquire
2 CG43403D62AA
Seal, Upper Panel, Air Vent
- 		- 2 Enquire
3 DG43F01990AC
Panel, Air Vent, RH
- 		- 1 Enquire
4 DG43F01991AC
PNL VEN AIR LH
- 		- 1 Enquire
5 4G43L41041AA
Edge Strip, Black 2 x 40
- 		- 1 Enquire
6 DG43334610AA
Foam, RH
- 		- 1 Enquire
7 DG43334611AA
Foam, LH
- 		- 1 Enquire
8 DG438052AA
Cover Assembly, Radiator Support Lower
- 		- 1 Enquire
9 8G432943751AB
Beam, Radiator Support Lower
- 		- 1 Enquire
10 8D3342761AA
Foam Pad, Cover Assy Radiator Support
- 		- 2 Enquire
11 DG4330908AB
Stiffener, Chin RH
- 		- 1 Enquire
12 DG4330907AB
Stiffener, Chin LH
- 		- 1 Enquire
13 DG4338B30AB
CNTR CHN STF
- 		- 1 Enquire
14 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20 		- 14 Enquire
15 703139
Screw/Washer M8x20 Chrome Free
- 		- 4 Enquire
16 697452
Washer, M8 x 24 x 1.8, Black
- 		- 4 Enquire
17 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE
- 		- 4 Enquire
18 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
Pack of 10
ARRIVING SOON 		- 4 Enquire
19 8D332D207AB
DCT BRK CNTR COOL LH
- 		- 1 Enquire
20 8D332D206AB
DCT BRK CNTR COOL RH
- 		- 1 Enquire
21 697517
WASHER M6 LGE OD BLK
- 		- 2 Enquire
22 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
Pack of 10 		- 1 Enquire
23 703729
Screw, M6 x 16, Flange Hex Head
- 		- 11 Enquire
24 703152PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
Pack of 10 		- 6 Enquire
