Aston Martin GT DB9 (2004-2017) - Instrument and Console Panels - IP Cross Beam

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

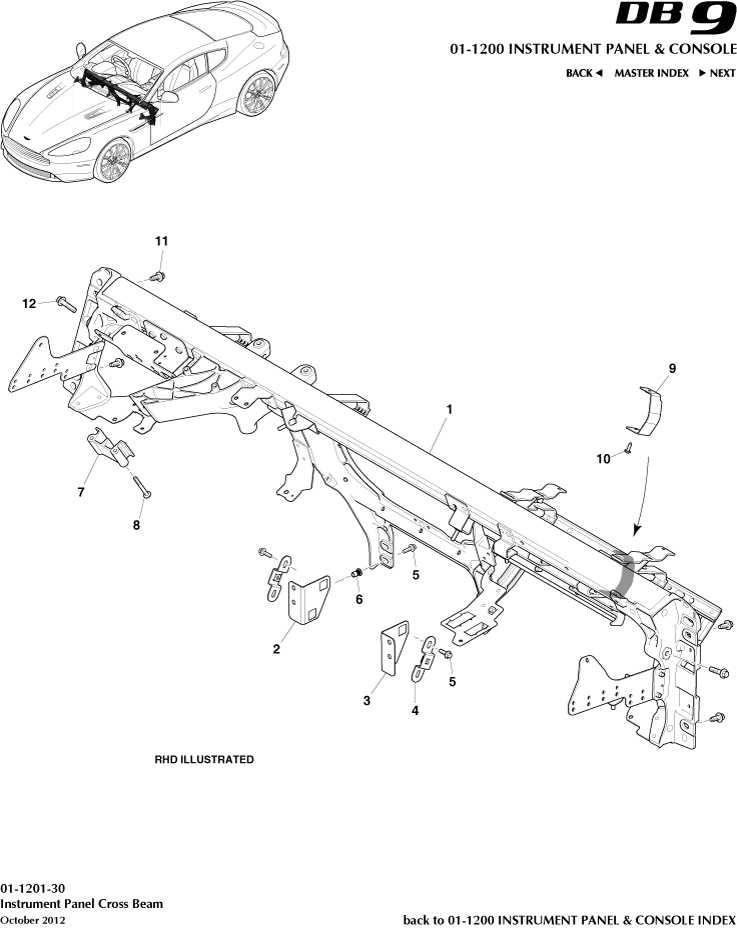

Instrument and Console Panels - IP Cross Beam of Aston Martin Aston Martin GT DB9 (2004-2017) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DG33044B51BA
Cross Car Beam Assembly, LHD
- 		- 1 Enquire
- 8G4327947AA
Bracket, CCB Support, LHD
- 		- 1 Enquire
1 DG33044B52BA
Cross Car Beam Assembly, RHD
- 		- 1 Enquire
2 6G33AWR3369AA
Bracket, Cross Car Beam Mounting, RH
- 		- 1 Enquire
3 6G33AWR3368AA
Bracket, Cross Car Beam Mounting, LH
- 		- 1 Enquire
4 9D3319080AA
Mounting Bracket, Loudspeaker
- 		- 2 Enquire
5 700607
Screw Hex Flange Head M6 x 16mm
- 		- 8 Enquire
6 6G3354428AA
RIVNUT M6 FLAT HEAD KNURLED 1.5-3.0mm GRIP Zn/Ni
- 		- 4 Enquire
7 9G43044C32BA
Bracket, Instrument Panel to Cowl Top
- 		- 1 Enquire
8 703196
BOLT-M6x55 HEX FLNG
- 		- 2 Enquire
9 8G4327946AA
Bracket, CCB Support, RHD
- 		- 1 Enquire
10 W502670S442
Screw, 4.2 x 16, Self Tapping
- 		- 2 Enquire
11 703187
SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE
- 		- 4 Enquire
12 703193
BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE
- 		- 2 Enquire
