Aston Martin GT DB9 (2004-2017) - Body Structure - Anciliary Parts, Volante, page 1

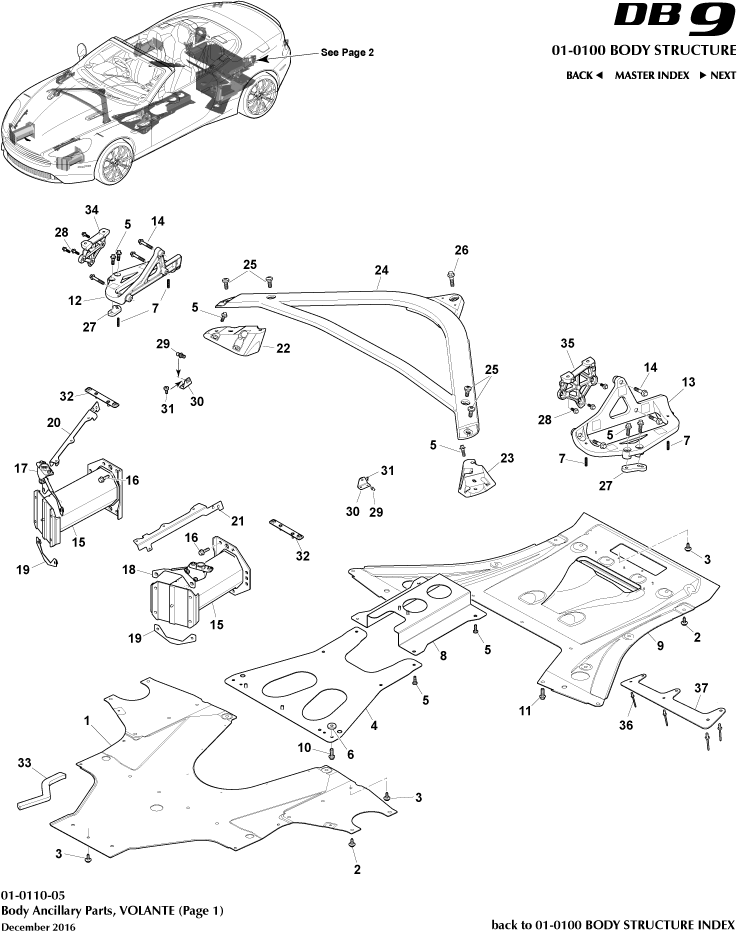

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	9G4328115AA	Baffle, Quarter Panel At Wheel, Housing Upper, LH	9G4328115AA Baffle, Quarter Panel At Wheel, Housing Upper, LH -	-	1	Enquire
1	9G4311262BA	Reinforcement Assembly, Floor Pan Front	9G4311262BA Reinforcement Assembly, Floor Pan Front -	-	1	Enquire
2	7G33108256AA	Screw, M8 x 21mm, Hex Flange Head	7G33108256AA Screw, M8 x 21mm, Hex Flange Head -	-	31	Enquire
3	ED33FA0115AA	SCREW M6x20 TORX HD	ED33FA0115AA SCREW M6x20 TORX HD -	-	5	Enquire
4	GODG43111K36AC	Tunnel Reinforcement, Front	GODG43111K36AC Tunnel Reinforcement, Front -	-	1	Enquire
5	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder -	-	20	Enquire
6	GODG431660AA	Spacer, Tunnel Reinforcement, Front	GODG431660AA Spacer, Tunnel Reinforcement, Front -	-	2	Enquire
7	CD33106160AA	Stud, M6, Threaded	CD33106160AA Stud, M6, Threaded -	-	4	Enquire
8	4G43111K37AE	Tunnel Reinforcement, Centre	4G43111K37AE Tunnel Reinforcement, Centre -	-	1	Enquire
9	AD33L17C857BB	SHIELD-RR BMPR OPG	AD33L17C857BB SHIELD-RR BMPR OPG -	-	1	Enquire
9	FD33L17C857AB	SHIELD-RR BMPR OPG	FD33L17C857AB SHIELD-RR BMPR OPG 16MY on	-	1	Enquire
10	700229	Bolt, M8 x 35, Hex Flange Head	700229 Bolt, M8 x 35, Hex Flange Head -	-	2	Enquire
11	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) -	-	2	Enquire
12	DG435340AA	Bracket, ECU Mounting, RH	DG435340AA Bracket, ECU Mounting, RH -	-	1	Enquire
13	DG435341AA	Bracket, ECU Mounting, LH	DG435341AA Bracket, ECU Mounting, LH -	-	1	Enquire
14	703194	BOLT M8x45 HEX FLNG CHROME FREE	703194 BOLT M8x45 HEX FLNG CHROME FREE -	-	12	Enquire
15	DD43V17N800BA	Crash Can, Bumper Front	DD43V17N800BA Crash Can, Bumper Front Structural Cat. A Only	-	2	Enquire
16	704495	Screw, M8 x 35, Hex Flange Head	704495 Screw, M8 x 35, Hex Flange Head 6 per crash can	-	12	Enquire
17	DG4313068AB	PNL HD/LP MTNG RH	DG4313068AB PNL HD/LP MTNG RH -	-	1	Enquire
18	DG4313069AB	PNL HD/LP MNTG LH	DG4313069AB PNL HD/LP MNTG LH -	-	1	Enquire
19	4G436367912AC	NUT PLT ASY FRT CRSH	4G436367912AC NUT PLT ASY FRT CRSH -	-	2	Enquire
20	DG43043B19AA	Tube, Passenger Air Bag Initiator, RH	DG43043B19AA Tube, Passenger Air Bag Initiator, RH -	-	1	Enquire
21	DG43043B20AA	Tube, Passenger Air Bag Initiator, LH	DG43043B20AA Tube, Passenger Air Bag Initiator, LH -	-	1	Enquire
22	GOED33108A86AA	BRKT FRT CS BRA RH	GOED33108A86AA BRKT FRT CS BRA RH -	-	1	Enquire
23	GODG43108A87AD	Bracket, Front Cross Brace, LH	GODG43108A87AD Bracket, Front Cross Brace, LH -	-	1	Enquire
24	DD43108A75CA	Cross Brace, Front	DD43108A75CA Cross Brace, Front -	-	1	Enquire
25	702209	Bolt, M10 x 25, Torque Drive	702209 Bolt, M10 x 25, Torque Drive -	-	4	Enquire
26	DG4300512AA	Screw (Taptite), M10 x 40 Hex Flange Head	DG4300512AA Screw (Taptite), M10 x 40 Hex Flange Head -	-	1	Enquire
27	DG43F27A06AA	Plate, Mounting	DG43F27A06AA Plate, Mounting -	-	2	Enquire
28	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	6	Enquire
30	DG4318178BA	Bracket, Gas Damper Mounting	DG4318178BA Bracket, Gas Damper Mounting -	-	2	Enquire
31	701567	Screw, M6 x 16	701567 Screw, M6 x 16 -	-	4	Enquire
32	8G43199901AA	Nutplate, M6 Headlamp Bracket	8G43199901AA Nutplate, M6 Headlamp Bracket -	-	2	Enquire
33	9G4328114AA	Baffle, Quarter Panel At Wheel, Housing Upper, RH	9G4328114AA Baffle, Quarter Panel At Wheel, Housing Upper, RH -	-	1	Enquire
34	DG4316A681AA	Reinforcement, Hood Hinge on Body, RH	DG4316A681AA Reinforcement, Hood Hinge on Body, RH -	-	1	Enquire
35	DG4316A682AA	Reinforcement, Hood Hinge on Body, LH	DG4316A682AA Reinforcement, Hood Hinge on Body, LH -	-	1	Enquire
36	6G3337949AA	DIA 4.8 X 13.9 BLIND RIVET	6G3337949AA DIA 4.8 X 13.9 BLIND RIVET 16MY on	-	6	Enquire
37	HD3344210AA	SPLR ASY RR	HD3344210AA SPLR ASY RR 16MY on	-	1	Enquire
