Volante Roof - Volante Roof Assembly of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Volante Roof - Volante Roof Assembly

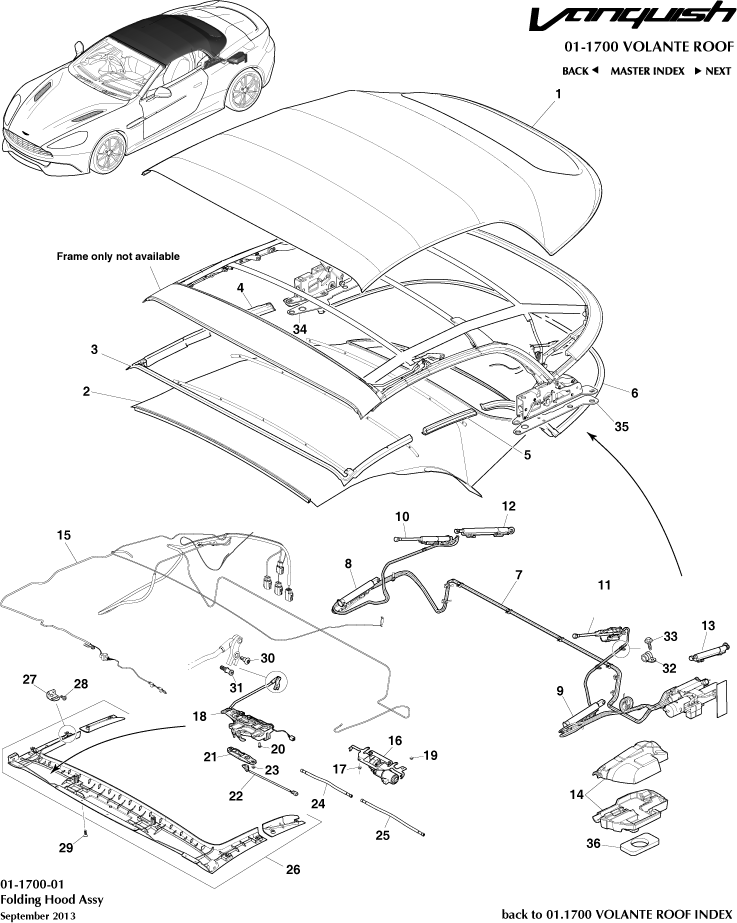

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	ED3376501B00CA	TOP ASSY FOLDING	ED3376501B00CA TOP ASSY FOLDING -	-	1	Enquire
-	ED3376501B10CA	TOP ASSY FOLDING	ED3376501B10CA TOP ASSY FOLDING -	-	1	Enquire
-	9G4370351BA	Canopy Cover Kit, Atlantic Blue	9G4370351BA Canopy Cover Kit, Atlantic Blue -	-	1	Enquire
-	9G4370351CA	CANOPY COVER CG JAVA KIT	9G4370351CA CANOPY COVER CG JAVA KIT -	-	1	Enquire
-	9G4370351DA	CANOPY COVER CG WESTMINSTER GREEN KIT	9G4370351DA CANOPY COVER CG WESTMINSTER GREEN KIT -	-	1	Enquire
-	9G4370351EA	CANOPY COVER CG TITAN GREY KIT	9G4370351EA CANOPY COVER CG TITAN GREY KIT -	-	1	Enquire
-	9G4370351FA	CANOPY COVER CG BURGUNDY KIT	9G4370351FA CANOPY COVER CG BURGUNDY KIT -	-	1	Enquire
-	9G4370351GA	CANOPY COVER CG SINGED BROWN KIT	9G4370351GA CANOPY COVER CG SINGED BROWN KIT -	-	1	Enquire
-	9G4370351HA	CPY CVR CG GREN RED	9G4370351HA CPY CVR CG GREN RED -	-	1	Enquire
-	9G4370352BB	INNER LINING CG IVORY	9G4370352BB INNER LINING CG IVORY -	-	1	Enquire
-	9G4370352CB	INNER LINING CG MOON SHADOW	9G4370352CB INNER LINING CG MOON SHADOW -	-	1	Enquire
-	9G4370352DB	INNER LINING CG TAILORS GREY	9G4370352DB INNER LINING CG TAILORS GREY -	-	1	Enquire
-	9G4370352EB	Inner Lining, New Light Tan	9G4370352EB Inner Lining, New Light Tan -	-	1	Enquire
-	707855	INR LINING-S/O COLR	707855 INR LINING-S/O COLR Confirm Colour When Ordering	-	1	Enquire
-	4G4375999AA	SHIM WASHER SEAL CARRIER	4G4375999AA SHIM WASHER SEAL CARRIER Seal Kit Attach	-	6	Enquire
-	9G4353390AB	HYDRAULIC MAIN CYLINDER RIGHT HAND	9G4353390AB HYDRAULIC MAIN CYLINDER RIGHT HAND NSS. Part of 4G43-9G803-AD	-	1	Enquire
-	9G4353391AB	Hydraulic Hose, Main Cylinder, LH	9G4353391AB Hydraulic Hose, Main Cylinder, LH NSS. Part of 4G43-9G803-AD	-	1	Enquire
-	4G43L51260AA	FULLY AUTOMATIC LATCHING LH KIT	4G43L51260AA FULLY AUTOMATIC LATCHING LH KIT -	-	1	Enquire
-	4G43765011AE	STRIKER HEADER LH	4G43765011AE STRIKER HEADER LH -	-	1	Enquire
-	4G439310614	HEADER TRIM KIT DB9 VOLANTE-IVORY	4G439310614 HEADER TRIM KIT DB9 VOLANTE-IVORY -	-	1	Enquire
-	4G439310615	HEADER TRIM KIT DB9 VOLANTE MOONSHADOW	4G439310615 HEADER TRIM KIT DB9 VOLANTE MOONSHADOW -	-	1	Enquire
-	4G439310616	HEADER TRIM KIT DB9 VOLANTE TAILORS GREY	4G439310616 HEADER TRIM KIT DB9 VOLANTE TAILORS GREY -	-	1	Enquire
-	9G43F502D42AA	Belt, Tension CG RH, includes control strap	9G43F502D42AA Belt, Tension CG RH, includes control strap -	-	2	Enquire
-	9G43F502D41AA	Belt, Tension CG LH, includes control strap	9G43F502D41AA Belt, Tension CG LH, includes control strap -	-	2	Enquire
-	4G43A502D41AA	TENSION CABLE CG	4G43A502D41AA TENSION CABLE CG -	-	2	Enquire
-	4G4310D916AA	Control Strap, NSS part of tension belt	4G4310D916AA Control Strap, NSS part of tension belt Hydraulic Pipe Protection	-	2	Enquire
-	4G4356051AA	Hole Cover Plug, Black	4G4356051AA Hole Cover Plug, Black Obsidian black	-	1	Enquire
-	4G4356051BA	Hole Cover Plug, Ivory	4G4356051BA Hole Cover Plug, Ivory Ivory	-	1	Enquire
-	4G4356051CA	Hole Cover Plug, Moon Shadow	4G4356051CA Hole Cover Plug, Moon Shadow Moon shadow	-	1	Enquire
-	4G4356051DA	Hole Cover Plug, Tailor Grey	4G4356051DA Hole Cover Plug, Tailor Grey Tailors grey	-	1	Enquire
1	9G4370351AA	CANOPY COVER CG BLACK KIT	9G4370351AA CANOPY COVER CG BLACK KIT -	-	1	Enquire
2	9G4370352AB	Inner Lining, Obsidian Black	9G4370352AB Inner Lining, Obsidian Black -	-	1	Enquire
3	4G43L51210AB	FRT SL SPR PRT ASY K	4G43L51210AB FRT SL SPR PRT ASY K -	-	1	Enquire
4	4G43L51221AA	MIDDLE SEAL SPARE PART RH ASSY KID	4G43L51221AA MIDDLE SEAL SPARE PART RH ASSY KID -	-	1	Enquire
5	4G43L51220AA	MIDDLE SEAL SPARE PART LH ASSY KIT	4G43L51220AA MIDDLE SEAL SPARE PART LH ASSY KIT -	-	1	Enquire
6	4G43L51230AB	RR SL SPR PRT ASY KT	4G43L51230AB RR SL SPR PRT ASY KT -	-	1	Enquire
7	9G439G803AA	Hydraulic Pump Assy, Includes All Cylinders & Hoses	9G439G803AA Hydraulic Pump Assy, Includes All Cylinders & Hoses Includes Cylinders and Hoses	-	1	Enquire
8	4G4350638AB	MAIN HYDRAULIC CYLINDER RIGHT HAND	4G4350638AB MAIN HYDRAULIC CYLINDER RIGHT HAND -	-	1	Enquire
9	4G4350639AC	MAIN HYDRAULIC CYLINDER LEFT HAND	4G4350639AC MAIN HYDRAULIC CYLINDER LEFT HAND -	-	1	Enquire
10	4G43539A78AA	Cylinder, Tension Bow, RH	4G43539A78AA Cylinder, Tension Bow, RH -	-	1	Enquire
11	4G43539A79AA	Cylinder, Tension Bow, LH	4G43539A79AA Cylinder, Tension Bow, LH -	-	1	Enquire
12	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 7	-	1	Enquire
13	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right Use Item 7	-	1	Enquire
14	9G439311486	HYDRAULIC PUMP CVR	9G439311486 HYDRAULIC PUMP CVR -	-	1	Enquire
16	4G43L51240AA	CONVERTIBLE ROOF LATCH MOTOR KIT	4G43L51240AA CONVERTIBLE ROOF LATCH MOTOR KIT -	-	1	Enquire
17	4G431001991AA	Nut & Washer, M5	4G431001991AA Nut & Washer, M5 -	-	4	Enquire
18	4G43L51270AA	FULLY AUTOMOTIVE LATCHING RH KIT	4G43L51270AA FULLY AUTOMOTIVE LATCHING RH KIT -	-	1	Enquire
19	4G4369832AA	HEXAGON NUT M6	4G4369832AA HEXAGON NUT M6 -	-	6	Enquire
20	4G431004048AA	Screw, M6, Pan Head	4G431004048AA Screw, M6, Pan Head -	-	2	Enquire
21	4G43765010AF	STRIKER HEADER RH	4G43765010AF STRIKER HEADER RH -	-	1	Enquire
22	4G43765013AE	LATCH BRKT HARNESS	4G43765013AE LATCH BRKT HARNESS -	-	1	Enquire
23	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head -	-	4	Enquire
26	4G439310617	HEADER TRIM KIT DB9 VOLANTE-BLACK	4G439310617 HEADER TRIM KIT DB9 VOLANTE-BLACK -	-	1	Enquire
27	4G43515A50AA	Bracket, Trim Cover	4G43515A50AA Bracket, Trim Cover -	-	8	Enquire
29	4G431004355AA	SELF CUTTING SCREW FH	4G431004355AA SELF CUTTING SCREW FH -	-	8	Enquire
30	4G431013271AA	SCREW PIVOT HOOK	4G431013271AA SCREW PIVOT HOOK -	-	2	Enquire
31	4G4350641AA	OVER CENTER PIN	4G4350641AA OVER CENTER PIN -	-	1	Enquire
33	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) Pack of 10	-	3	Enquire
34	00RB211	CLIP - PIPE - WINDSCREEN WASHER	00RB211 CLIP - PIPE - WINDSCREEN WASHER -	-	1	Enquire
35	00RA081	SCREW - TORX - PAN - M6X16-8.8	00RA081 SCREW - TORX - PAN - M6X16-8.8 -	-	1	Enquire
36	ED3316C954AA	Anti-Rattle Pad	ED3316C954AA Anti-Rattle Pad -	-	1	Enquire
