Interior Trim & Ornamentation - Cabin Rear Trim, 2+0 Coupe of Aston Martin Aston Martin GT VANQUISH (2013-2018)

View All

Aston Martin GT VANQUISH (2013-2018) - Interior Trim & Ornamentation - Cabin Rear Trim, 2+0 Coupe

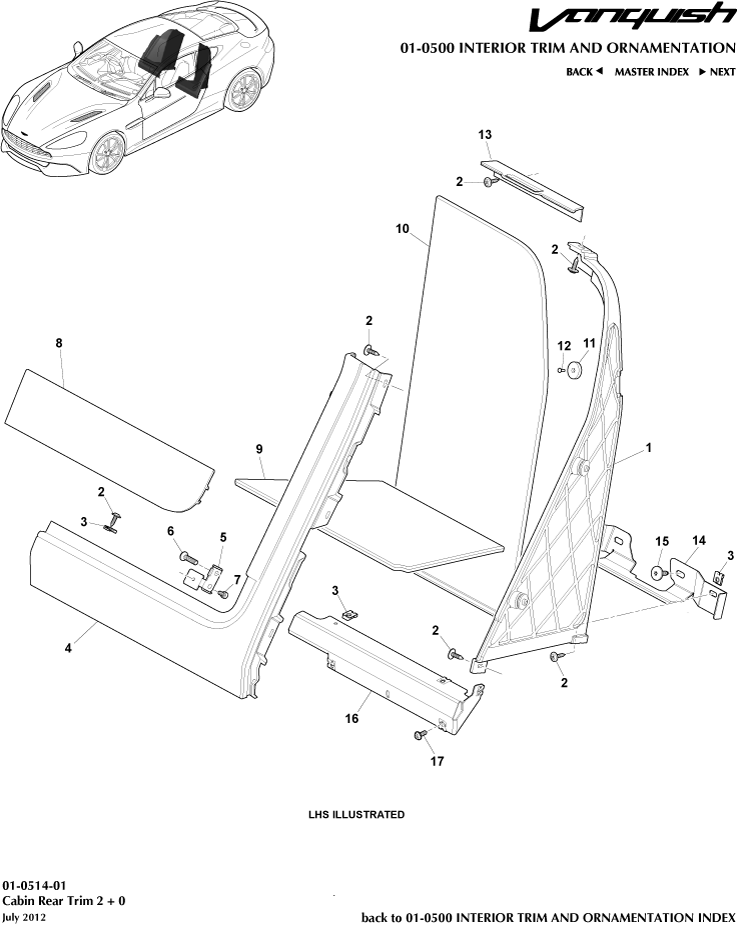

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	DD33045C62AAW	Panel Assy, Stowage Compartment, RH	DD33045C62AAW Panel Assy, Stowage Compartment, RH -	-	1	Enquire
-	DD3360026AAW	Panel Assy, Bulk Head Outer, RH	DD3360026AAW Panel Assy, Bulk Head Outer, RH -	-	1	Enquire
-	8D33674A08AD	Finisher, Cabin, RH	8D33674A08AD Finisher, Cabin, RH -	-	1	Enquire
-	DD3311766AAW	Panel Assy, Stowage Compartment Lower, RH	DD3311766AAW Panel Assy, Stowage Compartment Lower, RH -	-	1	Enquire
-	DD3360028AAW	Panel Assy, Cover Rear Bulk Head, RH	DD3360028AAW Panel Assy, Cover Rear Bulk Head, RH Includes Items 11 and 12	-	1	Enquire
-	DD3311768AAW	Panel Assy, Stowage Compartment Upper, RH	DD3311768AAW Panel Assy, Stowage Compartment Upper, RH -	-	1	Enquire
-	8D33310A84AB	Bracket, Bulk Head Side, RH	8D33310A84AB Bracket, Bulk Head Side, RH -	-	1	Enquire
-	8D33314A96AC	Bracket, Rear Heel Board, RH	8D33314A96AC Bracket, Rear Heel Board, RH -	-	1	Enquire
1	DD33045C63AAW	Panel Assy, Stowage Compartment, LH	DD33045C63AAW Panel Assy, Stowage Compartment, LH -	-	1	Enquire
2	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) -	-	24	Enquire
4	DD3360027AAW	Panel Assy, Bulk Head Outer, LH	DD3360027AAW Panel Assy, Bulk Head Outer, LH -	-	1	Enquire
6	697603	Screw, M6 x 25, Csk Socket Hd	697603 Screw, M6 x 25, Csk Socket Hd -	-	4	Enquire
7	4G43105104AA	Screw, M4 x 8, Cap Head, Black	4G43105104AA Screw, M4 x 8, Cap Head, Black -	-	2	Enquire
8	8D33674A09AD	Finisher, Cabin, LH	8D33674A09AD Finisher, Cabin, LH -	-	1	Enquire
9	DD3311767AAW	Panel Assy, Stowage Compartment Lower, LH	DD3311767AAW Panel Assy, Stowage Compartment Lower, LH -	-	1	Enquire
10	DD3360029AAW	Panel Assy, Cover Rear Bulk Head, LH	DD3360029AAW Panel Assy, Cover Rear Bulk Head, LH Includes Items 11 and 12	-	1	Enquire
11	4G43C045F70AB	RETAINER PASSENGER AIRBAG COVER PAD	4G43C045F70AB RETAINER PASSENGER AIRBAG COVER PAD -	-	10	Enquire
12	13A2053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	13A2053CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH -	-	10	Enquire
13	DD3311769AAW	Panel Assy, Stowage Compartment Upper, LH	DD3311769AAW Panel Assy, Stowage Compartment Upper, LH -	-	1	Enquire
14	CD33310A85AA	Bracket, Bulk Head Side, LH	CD33310A85AA Bracket, Bulk Head Side, LH -	-	1	Enquire
15	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	4	Enquire
16	8D33314A97AC	Bracket, Rear Heel Board, LH	8D33314A97AC Bracket, Rear Heel Board, LH -	-	1	Enquire
17	701441PK	Screw, 4.2 x 13, Small Washer Head	701441PK Screw, 4.2 x 13, Small Washer Head -	-	6	Enquire
