Interior Trim & Ornamentation - Front Header Trim, Volante

Aston Martin GT VANQUISH (2013-2018)

Find Your Part

Aston Martin GT VANQUISH (2013-2018) - Interior Trim & Ornamentation - Front Header Trim, Volante

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

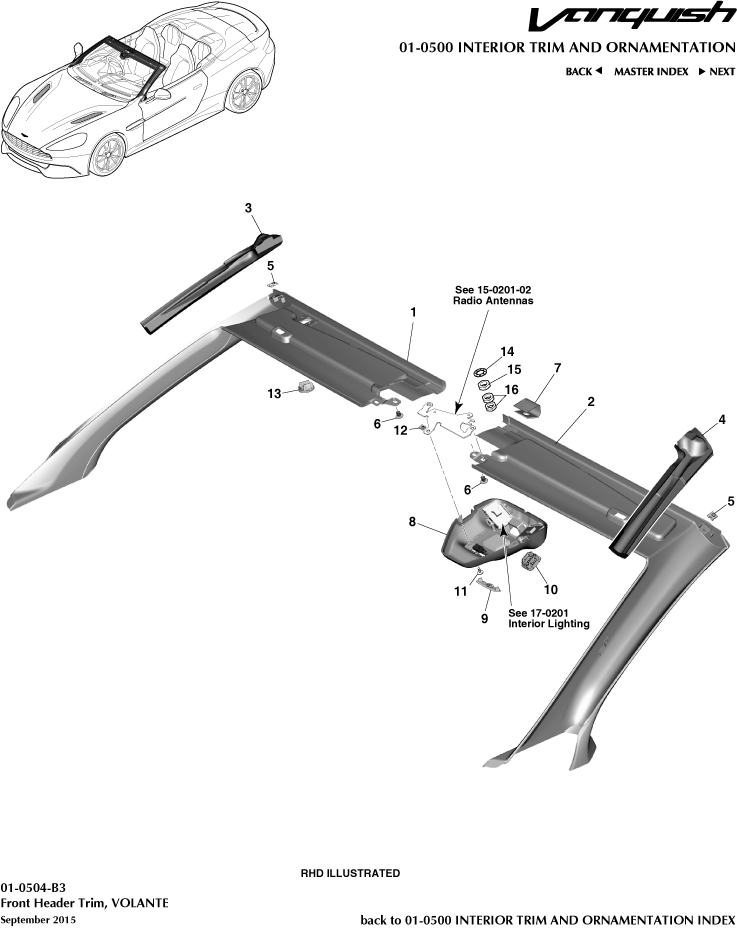

Interior Trim & Ornamentation - Front Header Trim, Volante of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- ED33L03408BDW
Header Trim, RH
LHD 		- 1 Enquire
- ED33L03409BDW
Header Trim, LH
LHD 		- 1 Enquire
1 ED33L03408ADW
Header Trim, RH
RHD 		- 1 Enquire
2 ED33L03409ADW
Header Trim, LH
RHD 		- 1 Enquire
3 ED33L40380BB
ENER ABS PILL TR UPR
- 		- 1 Enquire
4 ED33L40381BB
ENER ABS PILL TR UPR
- 		- 1 Enquire
5 701448
Spring Nut, U Type, 4.2 x 2.1
- 		- 2 Enquire
6 6G3329012AA
ALCANTARA TRIMMED FIR TREE - OBSIDIAN BLACK
- 		- 2 Enquire
7 ED3303509ABW
Cover Assembly, Windshield Header
- 		- 1 Enquire
8 ED33519A58BAW
Console Assembly, Roof Header
Includes Items 9 and 10 		- 1 Enquire
9 ED3313E714AA
Bezel, Lamp Assembly, Ambient
- 		- 1 Enquire
10 AD3319G379AA
Retainer, Microphone Bezel
Up to 17MY 		- 1 Enquire
11 701157PK
Screw & Washer 4.2 x 16 (Pack of 10)
Pack of 10 		- 2 Enquire
12 701653
Spring Nut, U Type, 4.2 x 0.7-2
- 		- 2 Enquire
13 AG4319G379AB
Bezel Assy, microphone
- 		- 4 Enquire
14 704620
Washer, Internal Shakeproof, M6
- 		- 4 Enquire
15 702944
Nut, M6, Hex Flanged Head
- 		- 2 Enquire
16 702994
Nut, M6, Hex Head Thin
- 		- 4 Enquire
